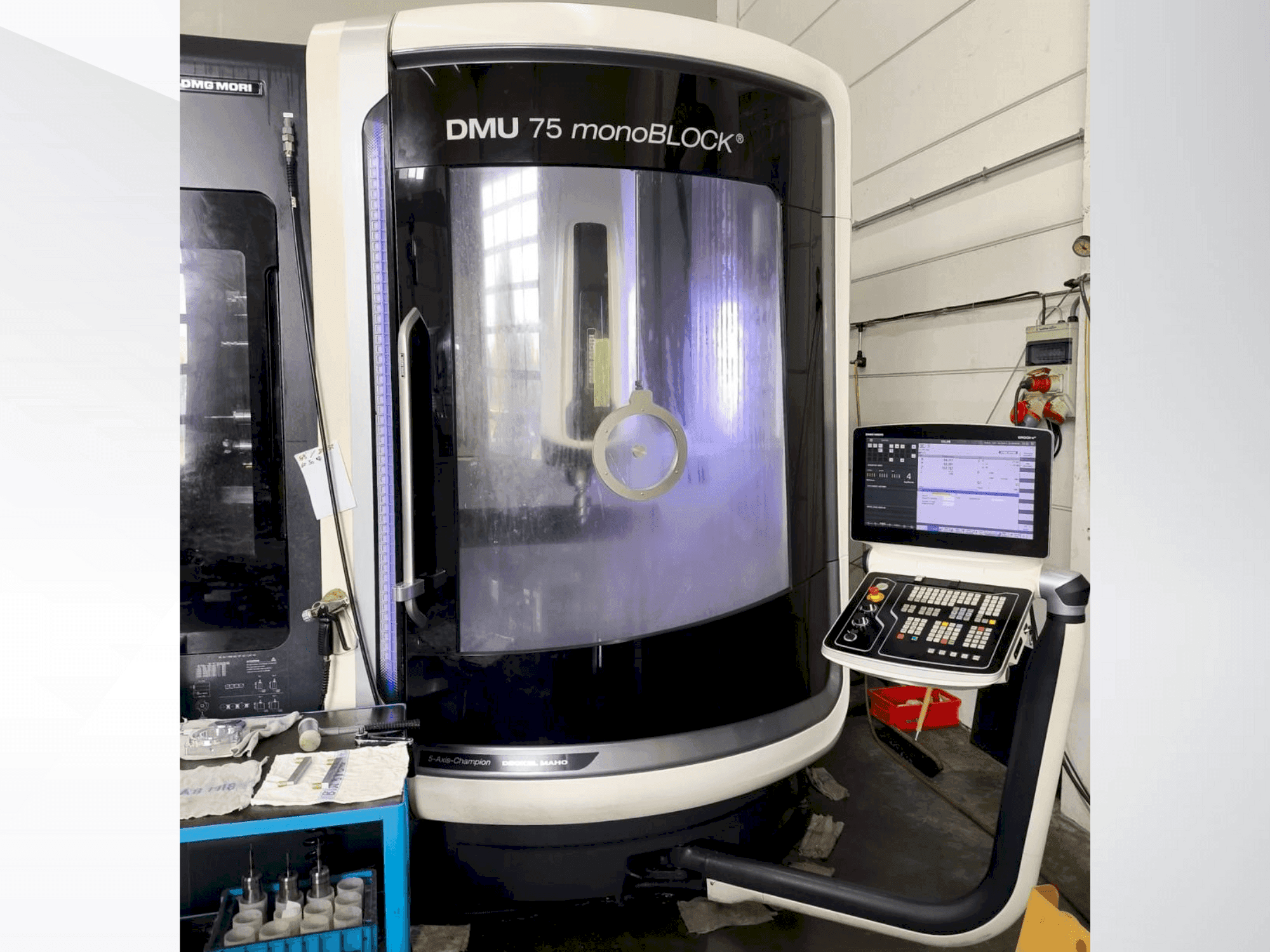

DMG MORI - DMU 75 monoBlockSG-MIL-DMG-2015-00001

Additional equipment

• - Chip Pan: Integrated coolant tank with 500-liter capacity
• - Scraper Chip Conveyor with Cooling System: Coolant Tank 600 liters, Paper Band Filter, Discharge Height 950 mm, Width 670 mm
• - IKZ (Internal Coolant Supply): 40 bar/23 l/min through spindle center
• - Chip Separation in Work Area Door: Standard cooling system is omitted
• - Rotating Window: In the work area door
• - Rinse Gun with Pump: 1 bar/40 l/min
• - Cooling System: Air blast through spindle center, selectable via M-function

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Nc swivel rotary table
  • - Table plate (c-axis): Ø 650 mm
  • - Integrated into fixed table: 600 mm x 650 mm
  • - Tool interface: sk 40 per din 69871
  • - Tool clamping: per din 69872
  • - Tool magazine: chain magazine with 60 tool positions sk 40
  • - Tool holders: sk 40 or optionally selected variants
  • - Control and protection systems: mpc (machine protection control)
  • - Tool change system: double gripper
  • - 3d path control
• Qualitative Machine Benefits:
  • - Measuring probe type: infrared, manufacturer heidenhain ts 649
  • - Tool breakage control: mechanical configuration
  • - 3d quickset: toolkit for checking and correcting the kinematic accuracy of 4-/5-axis machines
  • - Operating mode 4: process observation during manufacturing, manual intervention with open work area doors, release after completing a checklist

Extra information

• - Machine still under power
