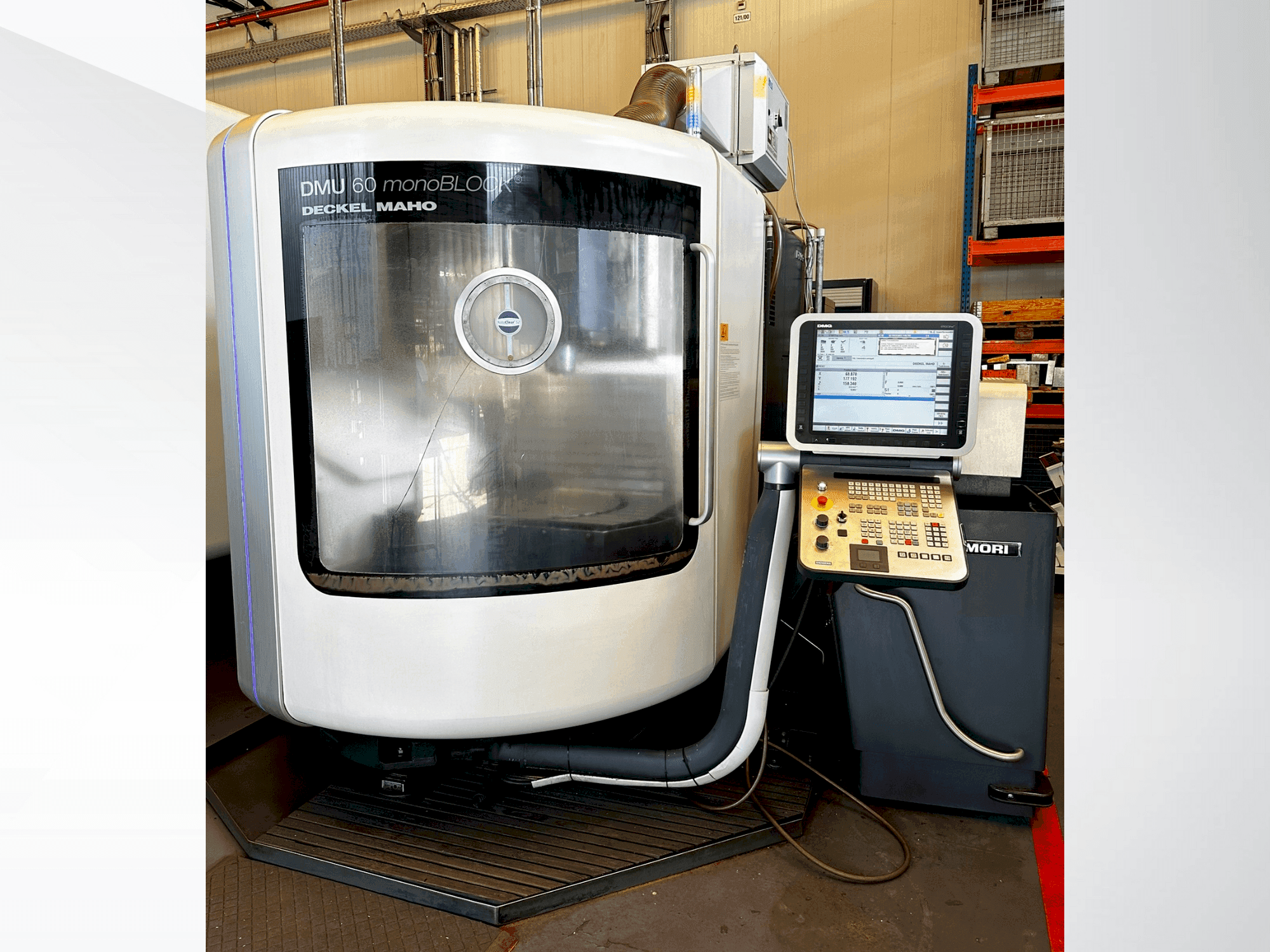

This 5-axis DMG MORI DMU 60 monoBLOCK was manufactured in 2010. It features a motor spindle capable of 18,000 rpm with a power of 15 kW, a SK 40 tool holder, and a 24-position tool magazine. The rigid table measures 1,000 mm x 600 mm, complemented by a 3D control Siemens 840D solutionline and a chip conveyor. If you are looking to get high-quality milling capabilities consider the DMG MORI DMU 60 monoBLOCK machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2010
- MODEL: DMU 60 monoBLOCK
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - DMG MORI DMU 60 monoBLOCK
Control Unit
- Brand: SIEMENS
- Model: 840D solutionline
Main drive
- Spindle speed range: 18000 rpm 1/MIN
- Spindle motor power: 15 kW (40% ED); 10 kW (100% ED)
- Tool taper: SK 40
- Number of axis: 5
Table
- Outer length: 1000 mm
- Outer width: 600 mm
Media
- Chip conveyor: Yes
Additional equipment
- - Tool clamping: Manual swivelling milling head
- - Tool changing device: Pick-up system with 24 magazine positions
- - Optional: 125 tool holders SK40
- - Controlled NC swivelling milling head (B-axis) with hydraulic clamping and spindle offset of 100 mm
- - Swivelling range: -120/+30° (X-axis travel range reduced by 100 mm)
- - 3D measuring probe / 3D quickSET toolkit
- - TRANSMIT lateral surface transformation (milling of cylindrical paths - TRACYL)
- - CompCad compressor function for high-speed machining
- - Operating mode 4 - Manual intervention with open machining area doors
- - Additional accessories
Additional Information
- Technical Machine Benefits:
- - Running time: 30106 hours (spindle: 8510 hours)
- - Working area: 730 mm x 560 mm x 560 mm
- - The soft key buttons on the screen sometimes fail, requiring control via the mouse pad on the machine or an external keyboard.
- Qualitative Machine Benefits:
- - This versatile machine offers a reliable solution for complex machining tasks and is ready for immediate use.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
