DMG MORI - DMU 50GR-MIL-DMG-2021-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

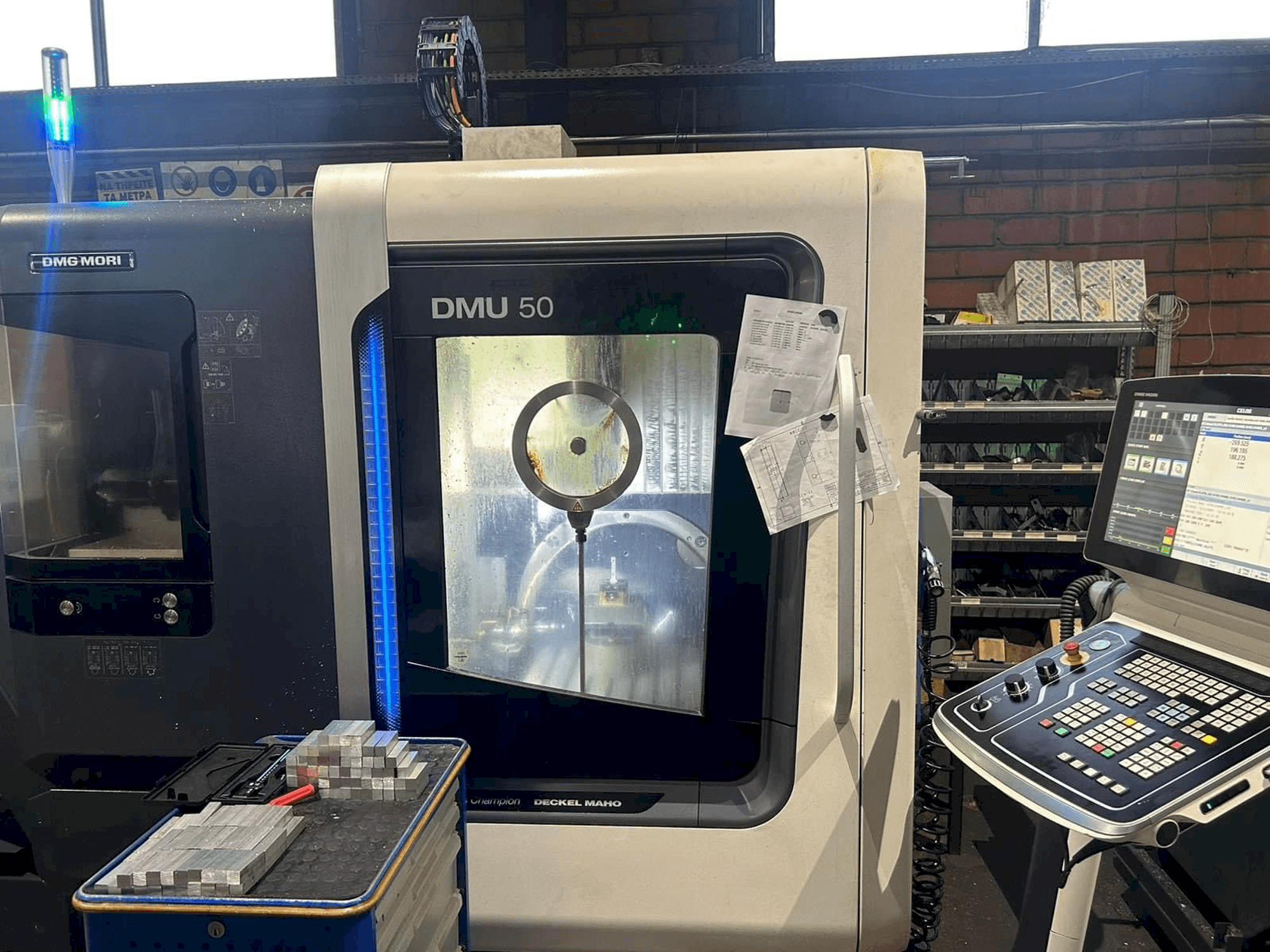

This DMG MORI DMU 50 Universal Machining center was manufactured in the year 2021 in Germany and has 10349 production hours, of which 7366 are spindle hours. It is equipped with a CELOS SIEMENS 840D sl Operate control unit and has 5 axis. The machine has a spindle speed of 20-14000 rpm.

Overview

brand: DMG MORI
year: 2021
MODEL: DMU 50
production hours: 10349
application type: Milling
Location: Greece
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI DMU 50

General Data

Machine weight: 4450 kg

Control Unit

Model: 840D sl Operate
Brand: SIEMENS

Main drive

Spindle speed range: 20-14000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
X-AXIS Feed Force: 30 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Feed Force: 30 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Feed Force: 30 m/min

Tools

Slots in storage: 30
Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel rotary table, simultaneous
- - Tool magazine 30 po sk40 vertical chain
- - Direct measuring systems x/y/z
- - Air seal for linear measuring systems
- - Automation: signal lamp 4 colour
- - Ptions for celos with siemens / siemens manual control panel
- - Iotconnector
- - Machine data connector
- - Netservice
- - Inline spindle with 20,3/14,5 kw
Qualitative Machine Benefits:
- - Tool taper iso40 din 69871
- - Cabin-guarding
- - Celos with siemens 840d sl operate includes 21,5 ergoline® control with multi-touch-screen.
- - Clamping surface dia. 630 x 500mm
- - Swivel range -5 to +110°, rotary axis 360°
- - Including direct measuring system for b- and c-axis
- - 1 vertical chain with double gripper
- - Incl. Set up station for tool loading
- - Direct measuring systems x,y,z axes 1, air purge for linear measuring systems 1 x,y,z
- - Swarf conveyor, scraper type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
