DMG Mori DMU 50 Universal Machining center

Show in original language

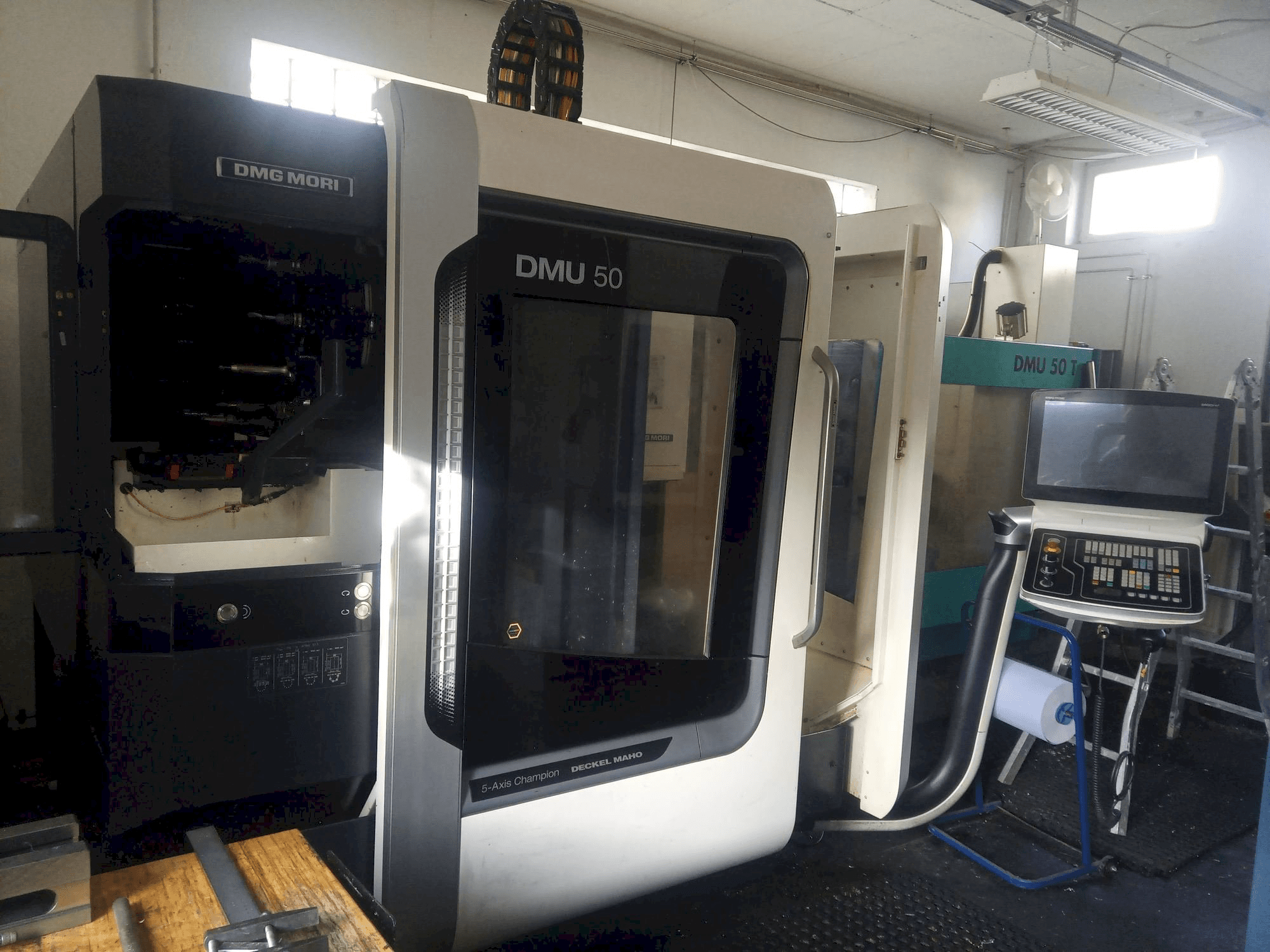

This DMG Mori DMU 50 Universal Machining center was manufactured in the year 2016 in Germany and has 11,212 machine on hours of which 3,596 are spindle hours. It is equipped with a CELOS SIEMENS 840D sI Operate Multi Touch control unit and has 5 axis. The machine has a spindle speed of 14000 rpm. See geometry protocol attached as PDF, made by DMG Mori on January 29th, 2024 for further information on the condition of the machine.

Overview

brand: DMG MORI
year: 2016
MODEL: DMU 50
production hours: 3596
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI DMU 50

General Data

Machine weight: 4450 kg

Control Unit

Model: 840D sI Operate Multi Touch
Brand: SIEMENS

Main drive

Spindle speed range: 14000 1/MIN
Spindle motor power: 14,5-20,3 kW
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
X-AXIS Feed Force: 30 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Feed Force: 30 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Feed Force: 30 m/min

Tools

Slots in storage: 30
Type of tool holder: SK 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Celos® mit siemens 840d si operate with 21,5 ergoline® control
- - Swivel rotary table with simultaneous capability
- - Clamping surface d630 x 500
- - Swivel range -5 to +110
- - 360° rotation axis
- - Including direct measuring systems b- and c-axis and plane transformation
- - Vertical chain with double gripper including set-up aid for tool loading
- - Flushing gun for chip flushing

Extra information

- No chip conveyer included // Spindle Hours 3,596 & Machine On Hours 11,212

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
