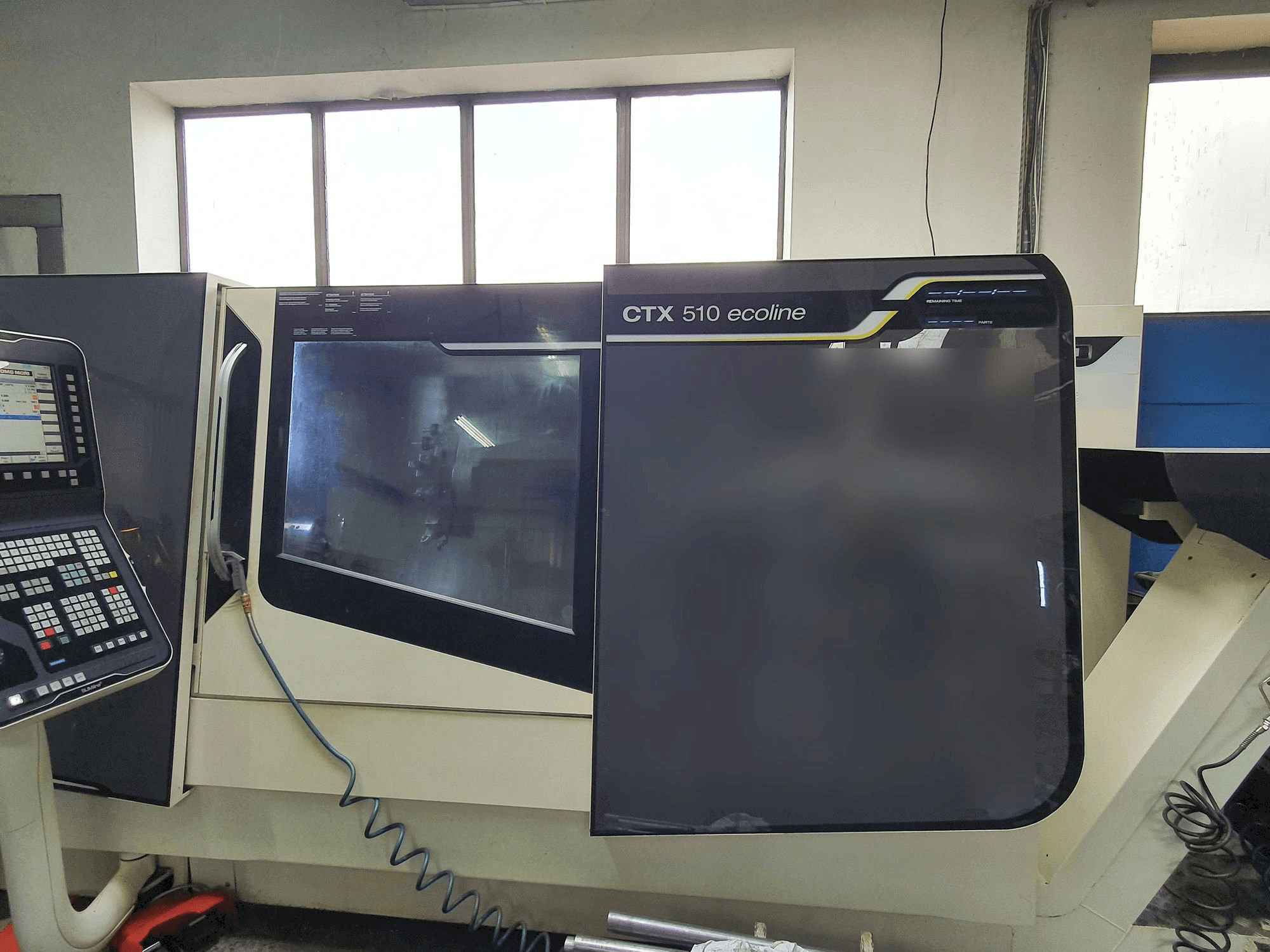

This DMG MORI CTX 510 V3 Ecoline Lathe was manufactured in Poland in the year 2014. This 3 axis machine has been on for 7903 hours, of which 2076 hours are spindle time. It is equipped with a SIEMENS 840D SLIMline control unit. This machine can perform with a spindle speed up to 3250 rpm. This machine it is in very good working condition, still at the production. Ready for test. Full documentation available.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: CTX 510 V3 Ecoline
- production hours: 7903
- application type: Turning
- Location: Poland
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX 510 V3 Ecoline
General Data
- Measurements width: 5320 mm
- Measurements depth: 3294 mm
- Measurements height: 2160 mm
- Machine weight: 7800 kg
Control Unit
- Brand: SIEMENS
- Model: 840D SLIMline
Main drive
- Spindle speed range: 3250 1/MIN
- Number of axis: 3
Tools
- Number of stations: 12
- Type of tool holder: VDI 40
Additional Information
- Technical Machine Benefits:
- - Max swing diameter: 680 mm
- - Swing diameter over cross slides: 465 mm
- - Max turning diameter: 465 mm
- - Cross travel (x): 300 mm
- - Stroke in z axis: 1050 mm
- - Rapid traverse (x / z): 30 m/min
- - C axis: yes
- - Max torque: 630 nm
- - Bar capacity dia. : 75 mm
- - Max speed for driven tools: 4000 rpm
- Qualitative Machine Benefits:
- - Machine in very good, working condition, still at the production.
- - Ready for test.
- - Full documentation available.
- - No tooling included in the offer.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
