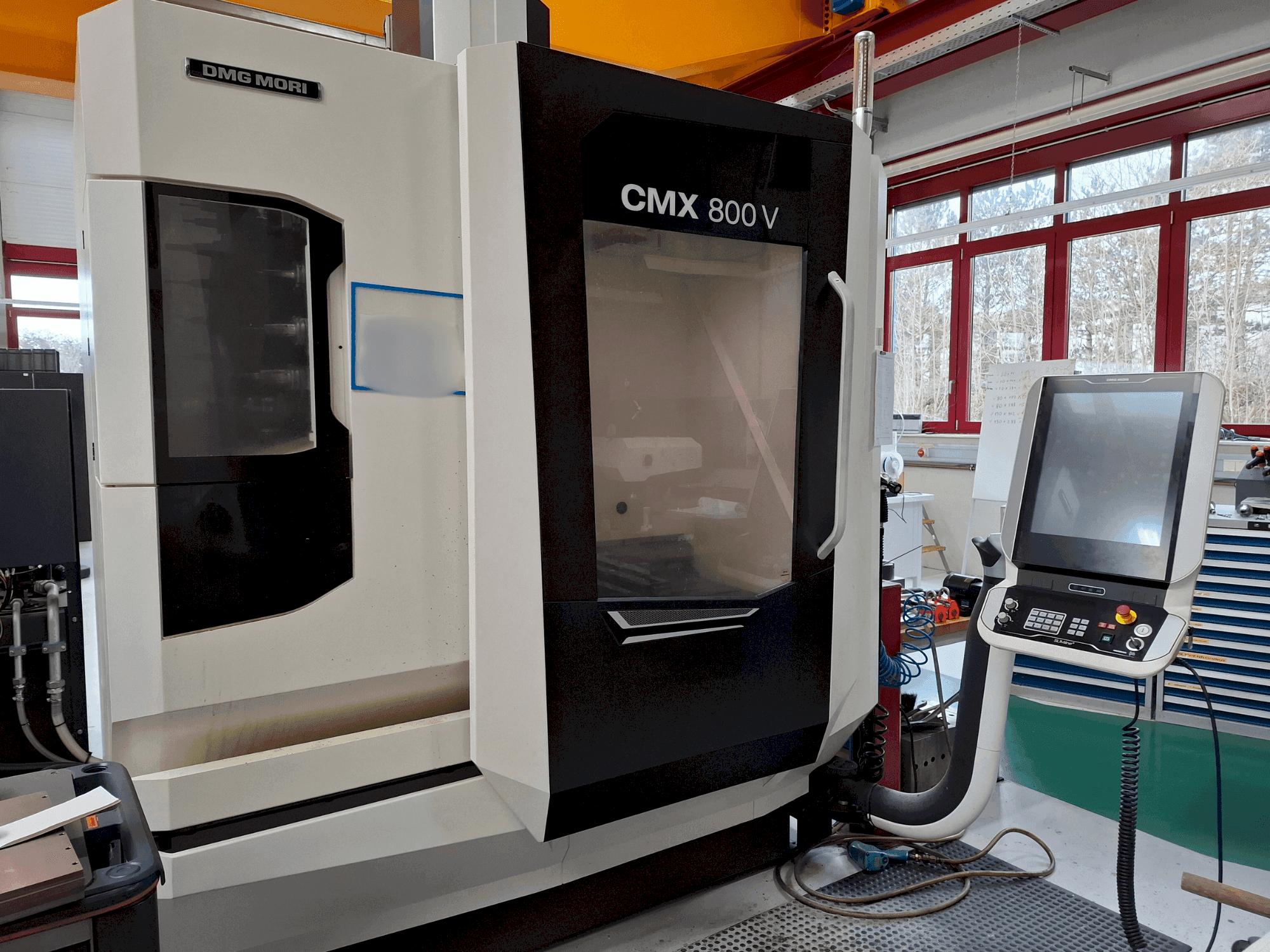

DMG MORI - CMX 800VDE-MIL-DMG-2019-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Torque: max. Spindle torque 40% duty cycle: 82 nm; rated torque 100%: 54 nm
  • - The warm-up time before machining starts for oil distribution includes 30 seconds at a maximum of 500 rpm, followed by a stepwise speed increase to a maximum of 1500 rpm and 3000 rpm for another 30 seconds.
  • - The run-in time after more than 6 months of standstill includes 5 minutes at a maximum of 2000 rpm, followed by a stepwise speed increase to a maximum of 4000 rpm and 6000 rpm for another 5 minutes.
  • - Tool clamping force sk40/bt40: 10 kn
  • - Tool clamping force cat40: 9 kn
  • - Ac servo motors for x, y, z axes
  • - Resolution: x, y, z axes: 6 μm
  • - Positioning uncertainty: p (according to iso 13041-4): x, y, z: 6 μm
  • - Input precision (control): x, y, z axes: 1 μm
  • - Setup mode (mode 2): x, y, z axes: 20-2000 mm/min a, c axes: 2. 6 rpm
• Qualitative Machine Benefits:
  • - Setup mode (mode 3): x, y, z axes: 20-5000 mm/min a, c axes: 6. 6 rpm

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
