- DMG MORI CMX 600 V Vertical Machining Centre

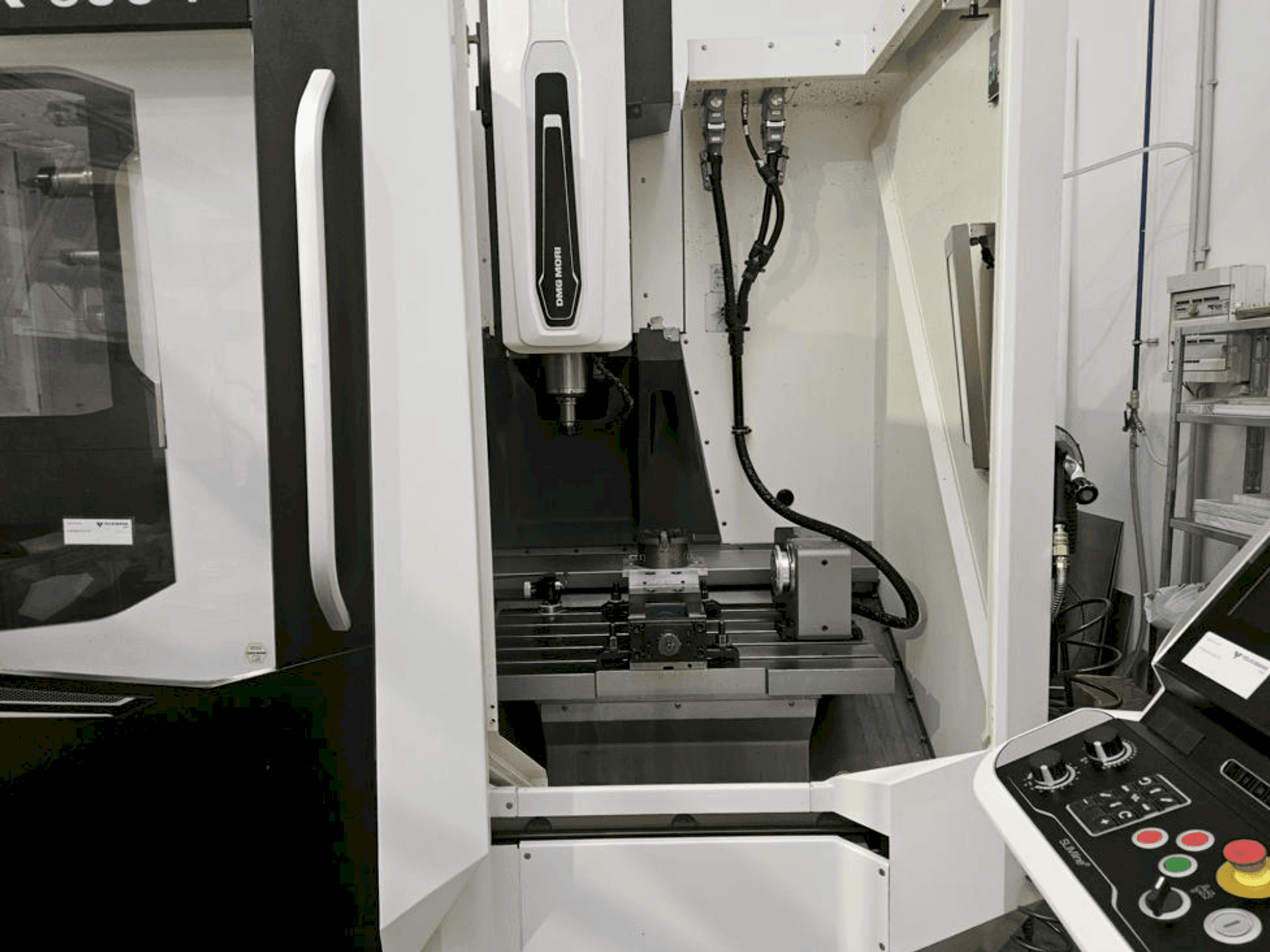

This DMG MORI CMX 600 V Vertical Machining Centre was manufactured in 2022. It has 4 axes with a NC rotary table (4th axis) from Lehmann with indirect measuring system. The table size is 900 x 560 mm. The machining centre is equipped with a DMG MORI SLIMline® Control based on Siemens and a direct measurement system in X/Y/Z. As extras it comes with chip conveyor (scraper belt, tank capacity: 200l) and a Renishaw touch probe kit for Siemens. See tech specs overview as PDF (DE) attached.
Overview
- brand: DMG MORI
- year: 2022
- MODEL: CMX 600 V
- production hours: 3071
- application type: Milling
- Location: Austria
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: DMG MORI
Technical Information - DMG MORI CMX 600 V
General Data
- Measurements width: 2859 MM
- Measurements depth: 3490 MM
- Measurements height: 2985 MM
- Machine weight: approx. 5000 kg
Control Unit
- Brand: DMG MORI
- Model: SLIMline (SIEMENS)
- Interface: Multi-Touch Control 19"
Main drive
- Spindle speed range: 20 - 12000 1/MIN
- Spindle motor power: 13/9 kW
- Tool taper: SK 40
Movement
- X-AXIS Movement: 600 MM
- Y-AXIS Movement: 560 MM
- Z-AXIS Movement: 510 MM
Table
- Outer length: 900 mm
- Outer width: 560 mm
Tools
- Number of stations: 30
- Type of tool holder: SK 40
Media
- Chip conveyor: Yes
Additional equipment
- - Chip conveyor (scraper belt) // Tank capacity: 200l (left) // Chip Tray
- - Coolant spray gun
- - Signal lamp 4-color
- - Renishaw touch probe kit for SIEMENS control (PP40 touch probe with optical signal transmission)
- - Tool magazine with 30 tools with double gripper
Additional Information
- Technical Machine Benefits:
- - Nc rotary table (4th axis) lehmann with indirect measuring system
- - Rotary table type: ea-510. L
- - Software preparation for rotary table machining
- - Tracyl software for machining
- - Swivel cycle (cycle 800) // clamping torque: 800 nm // max. Speed: 80 rpm // spindle height 150 mm
- - Rotary table for positioning along the x-axis on the right-hand side of the worktable (for siemens control system)
- - Rapid traverse linear axis 30 m/min
- - External coolant blowing belt switchover via m function
- - Spindle hours: 1231h
- Qualitative Machine Benefits:
- - Direct measurement system in x/y/z
- - Dmg mori cad/cam system siemens nx
- - Dmg mori connectivity pack
- - Dmg mori planning & control - sme - pack
- - Renishaw pp40 3d touch probe
- - Ots measuring probe for tool measurement
- - Calibration mandrel with tool holder
- - Calibration ring
- - Nc rotary table (4th axis) lehmann ea-510. L
- - Service camera
- - Machine will be sold WITHOUT clamping devices and tools // These systems and accessories were supplied by the factory and are fully integrated into the machine.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
