DMG MORI CMX 1100 V Vertical Machine Center

Show in original language

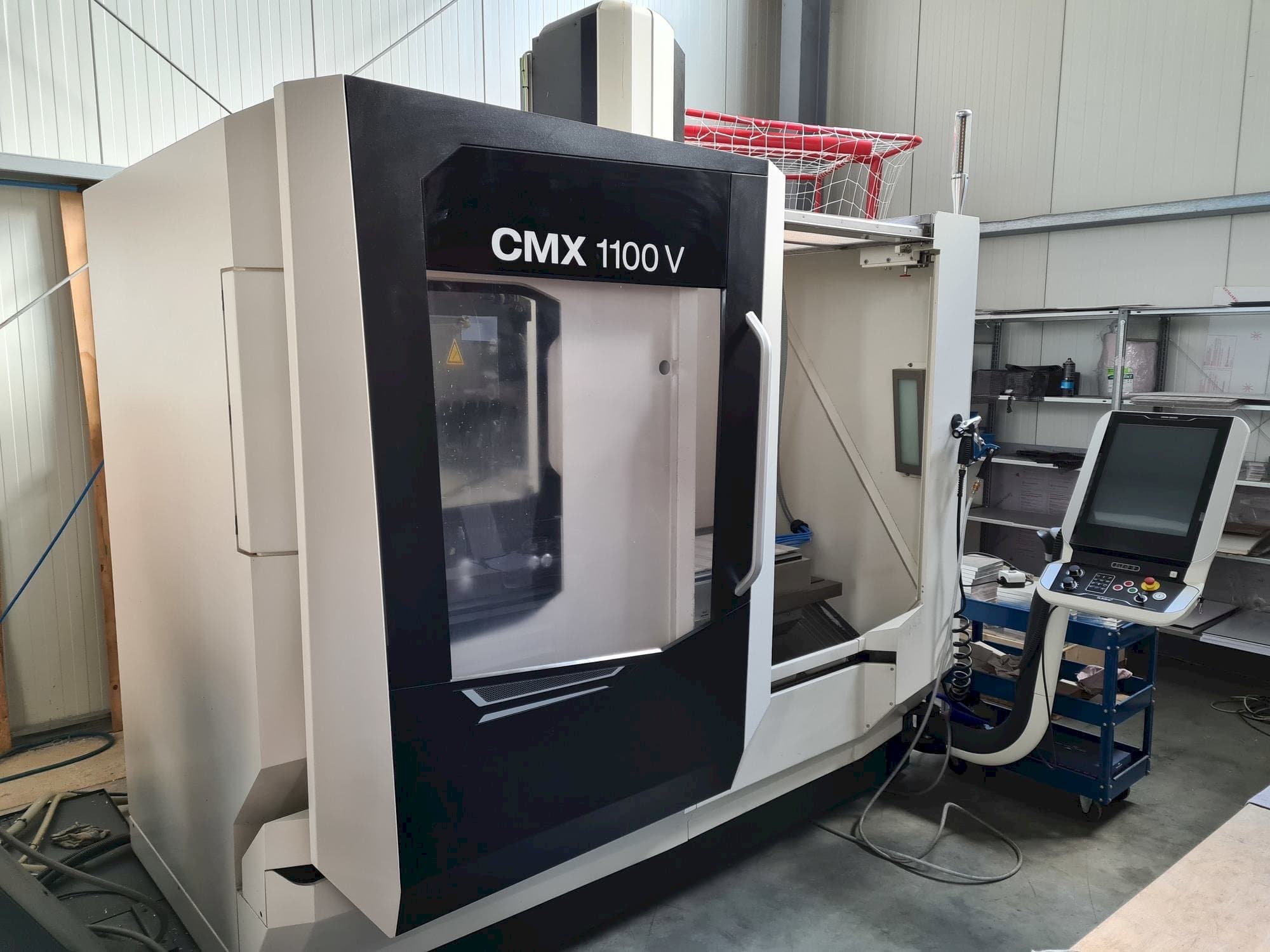

This DMG MORI CMX 1100 V Vertical Machine Center was manufactured in Poland in the year 2018. This machine counts with only 2928 working hours, of which 1124 are spindle hours. It is operated with a Siemens SINUMERIK 840D control unit. This 3 axis machine can perform with a spindle speed up to 12000 rpm.

Overview

brand: DMG MORI
year: 2018
MODEL: CMX 1100 V
production hours: 2928
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CMX 1100 V

General Data

Machine weight: 5850 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1400 mm
Outer width: 560 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Fast tool magazine with 30 places as standard
- - High precision with a 12,000 min-1 milling spindle as standard
- - Improved ergonomic design for easy loading of heavy workpieces
- - Small footprint: 8,6m2
- - Height of the table surface: 850 mm
- - Position of the lower end of the front door: 748 mm
- - Distance to the table: 323 mm
- - Door opening: 1151 mm
- - Drive power (40 % / 100 % dc) kw: 13/9
- - Max. Torque (40 % / 100 % dc) nm: 83/57
Qualitative Machine Benefits:
- - Type tool shank: sk 40 bt 40* cat 40*
- - Distance between table surface and spindle surface: 120 - 630 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
