DMG - DMU210PTW-MIL-DMG-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG DMU210P Milling

Show in original language

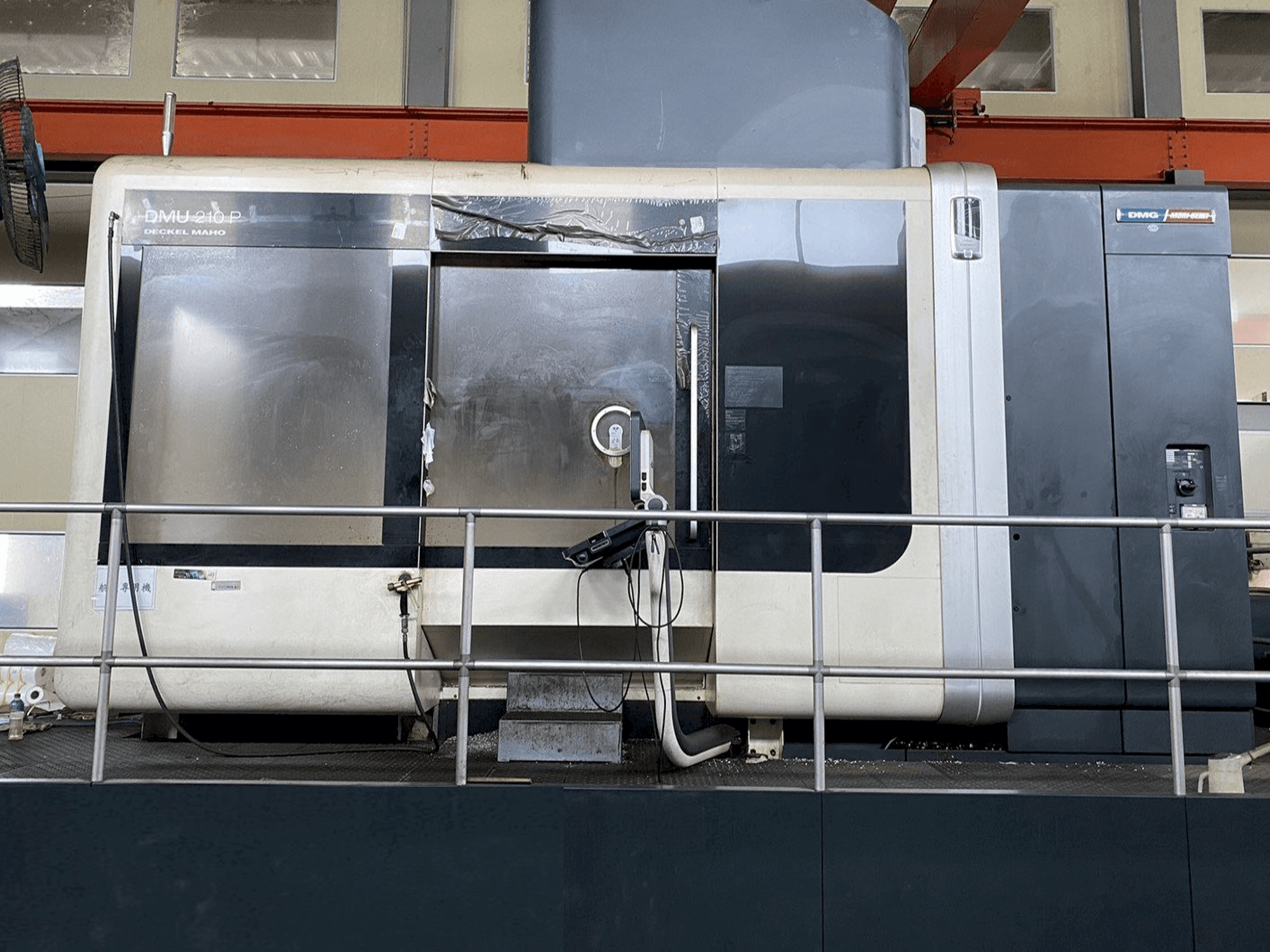

This DMG DMU210P Universal Machining Center Machine was built in Germany in the year 2014. It has been on for 28784 hours, of which 20554 are spindle hours. It is equipped with a Heidenhain iTNC530 HSCI 3D control unit. This 5 axis machine can work with a spindle speed up to 12000 rpm. It includes a 3D quick set for 5 axis calibration as well as a Spindle Thru Coolant 40bar.

Overview

brand: DMG
year: 2014
MODEL: DMU210P
production hours: 28784
application type: Milling
Location: Taiwan
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMU210P

Control Unit

Model: iTNC530 HSCI 3D
Brand: HEIDENHAIN

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 2100 mm
Y-AXIS Movement: 2100 mm
Z-AXIS Movement: 1250 mm

Table

Table load: 800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table diameter: 1700 mm
- - Universal nc a axis -130/+45 degree
- - Universal nc rotary c axis 360 x 0. 001 degree
- - Universal machine center (5 axis simultaneous)
- - Hsk-a100 taper with 12. 000rpm
- - Heidenhain ts649 infrad red probe
- - Blum nt-hybrid laser tool measuring
- - 3d quick set for 5 axis calibration
- - Atc 60 magzine
- - Spindle thru’ coolant 40bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
