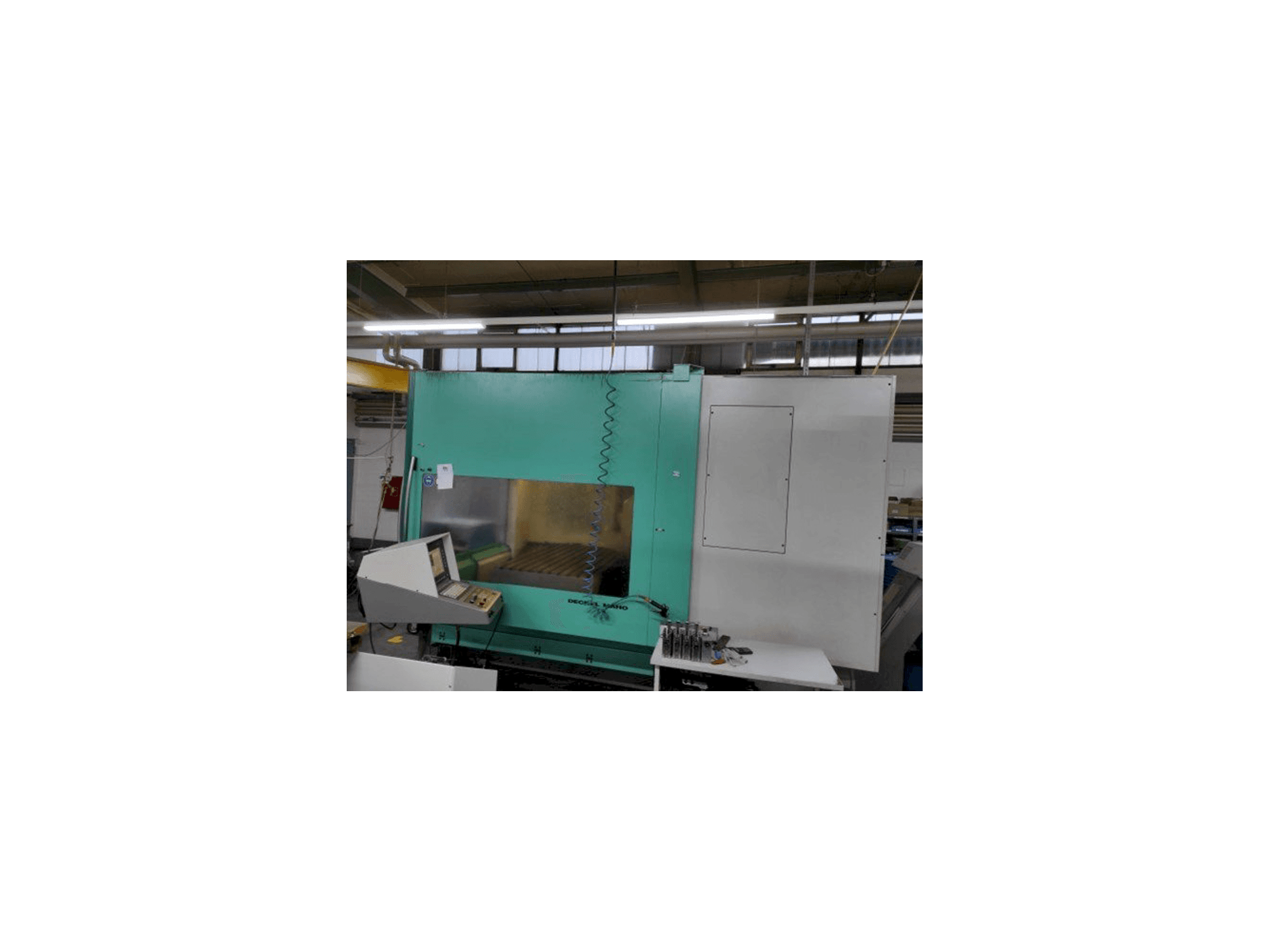

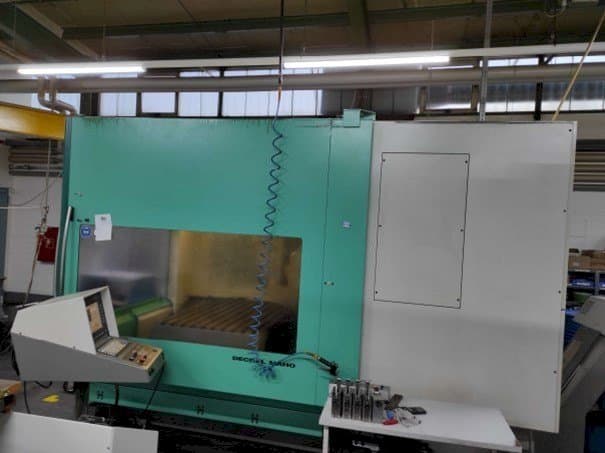

DMG DMU 125 T Vertical Machining center

Show in original language

This DMG DMU 125 T Vertical Machining Center was manufactured in the year 1998 and has 28018 hours, of which 9528 are cutting hours. It is equipped with a DMG MillPlus control unit. The machine has a spindle speed of 8000 rpm.

Overview

brand: DMG
year: 1998
MODEL: DMU 125 T
production hours: 28018
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - DMG DMU 125 T

Control Unit

Model: MillPlus

Main drive

Spindle speed range: 8000 1/MIN
Tool taper: SK50

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 880 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1500 mm
Outer width: 1050 mm
Table load: 2500 kg

Tools

Slots in storage: 30

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 10t-slots 18h7 / 100 mm
- - Tool clamping according to din 698871
- - Discharge height 956 mm, width 380 mm
- - Electronically controlled handwheel millplus it
- - Flushing gun with pump
- - 2 bar/ 40 l/min
Qualitative Machine Benefits:
- - Documentation in german

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
