DMG DMC65V Vertical Machining center

Show in original language

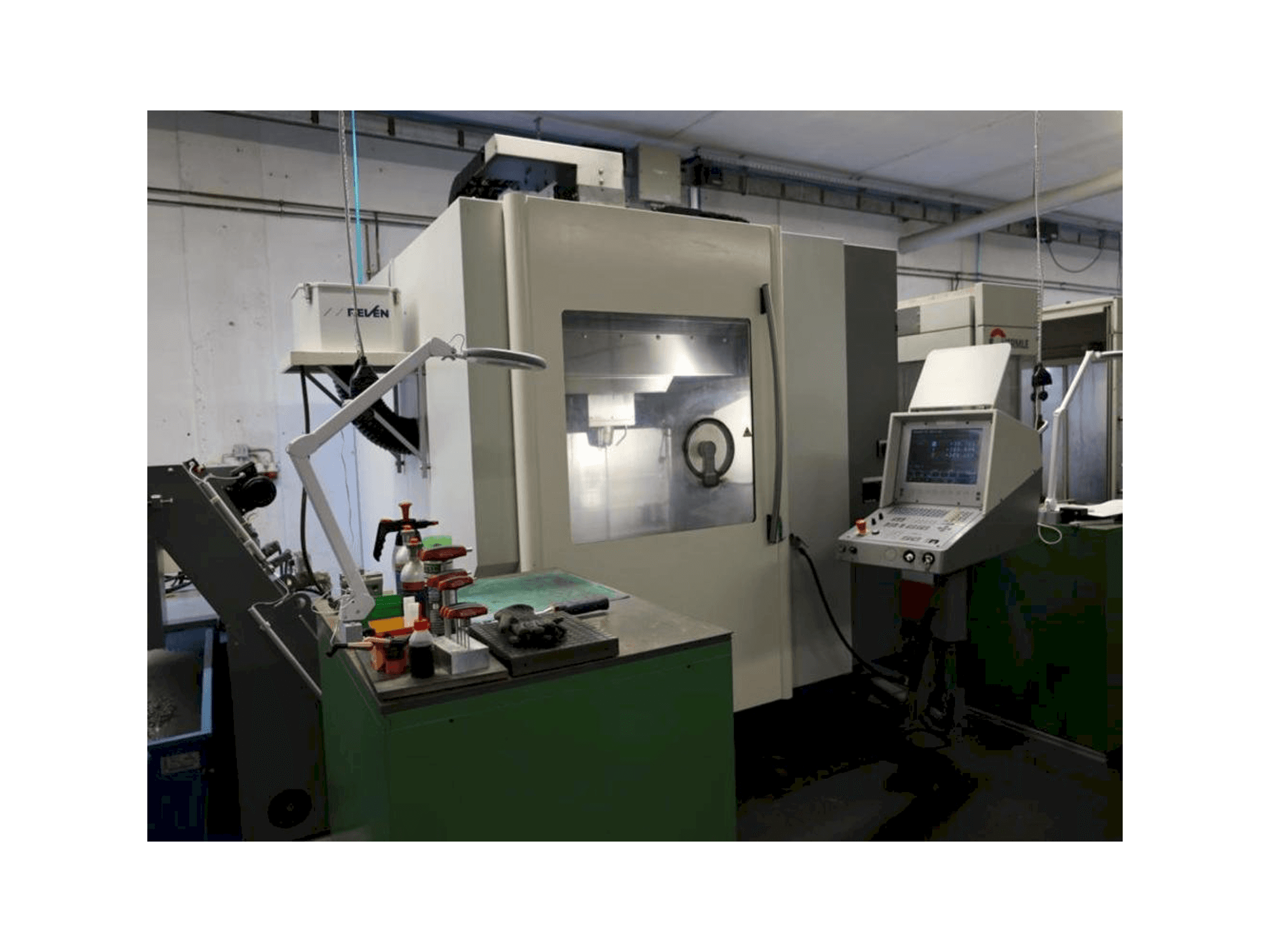

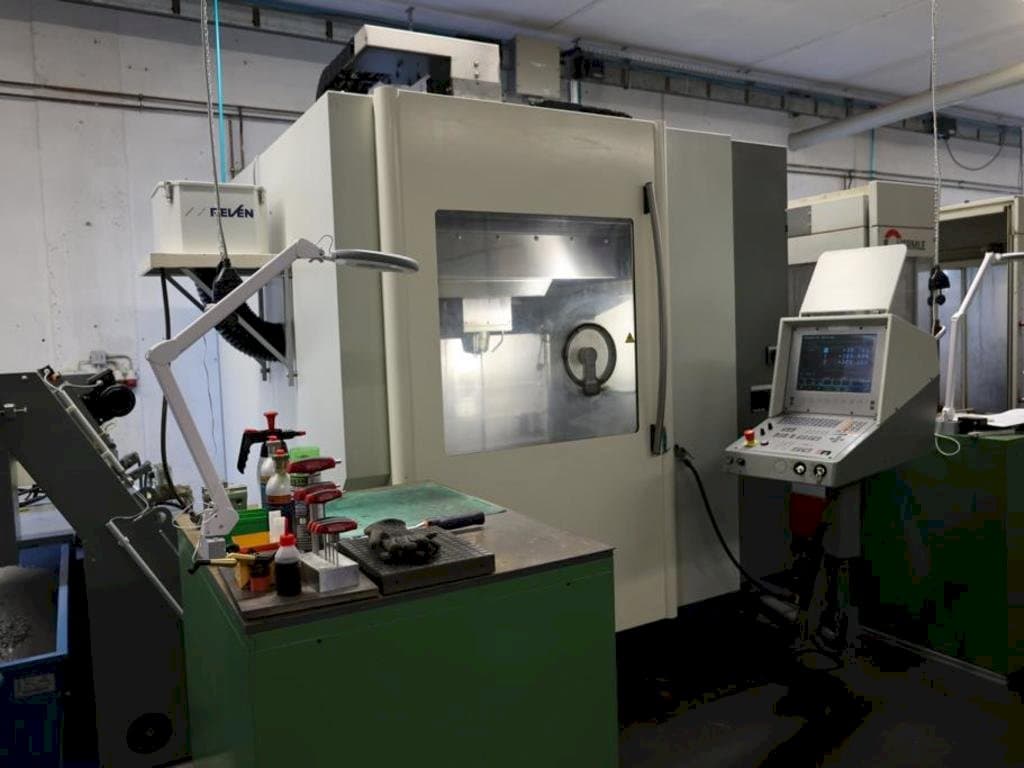

This DMG DMC65V Vertical Machining center was manufactured in the year 2001. It is equipped with a HEIDENHAIN TNC 430 control unit. The machine has a spindle speed of 18000 rpm.

Overview

brand: DMG
year: 2001
MODEL: DMC65V
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMC65V

General Data

Measurements width: 4100 mm
Measurements depth: 3900 mm
Measurements height: 3100 mm
Machine weight: 9500 kg

Control Unit

Model: TNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 10-15 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 600 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 60 m/min

Table

Outer length: 800 mm
Outer width: 500 mm
Distance between: 100 mm
Table load: 1500 kg

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 100 mm
Max tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
