DMG DMC 835 V Vertical Machining Center

Show in original language

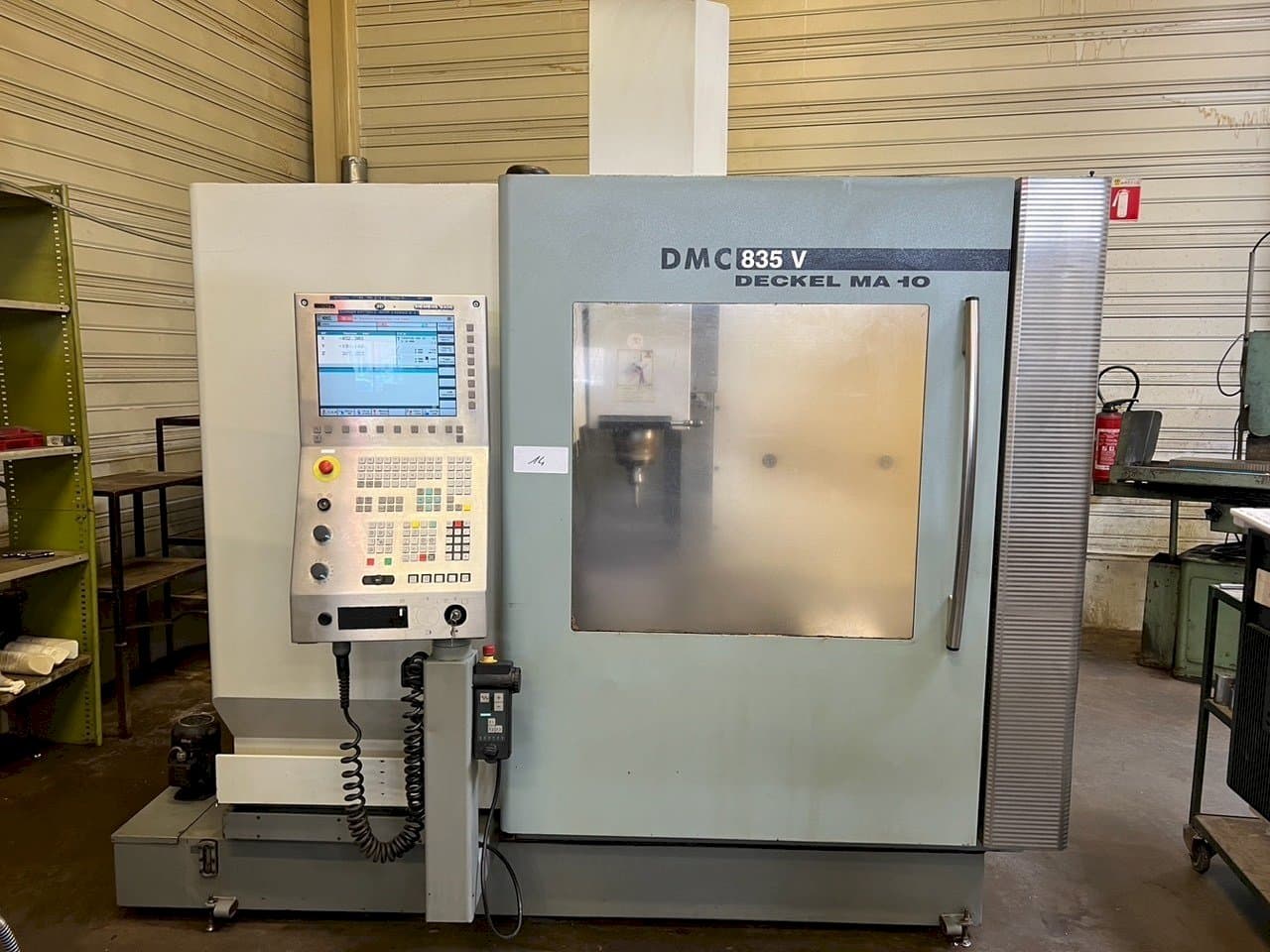

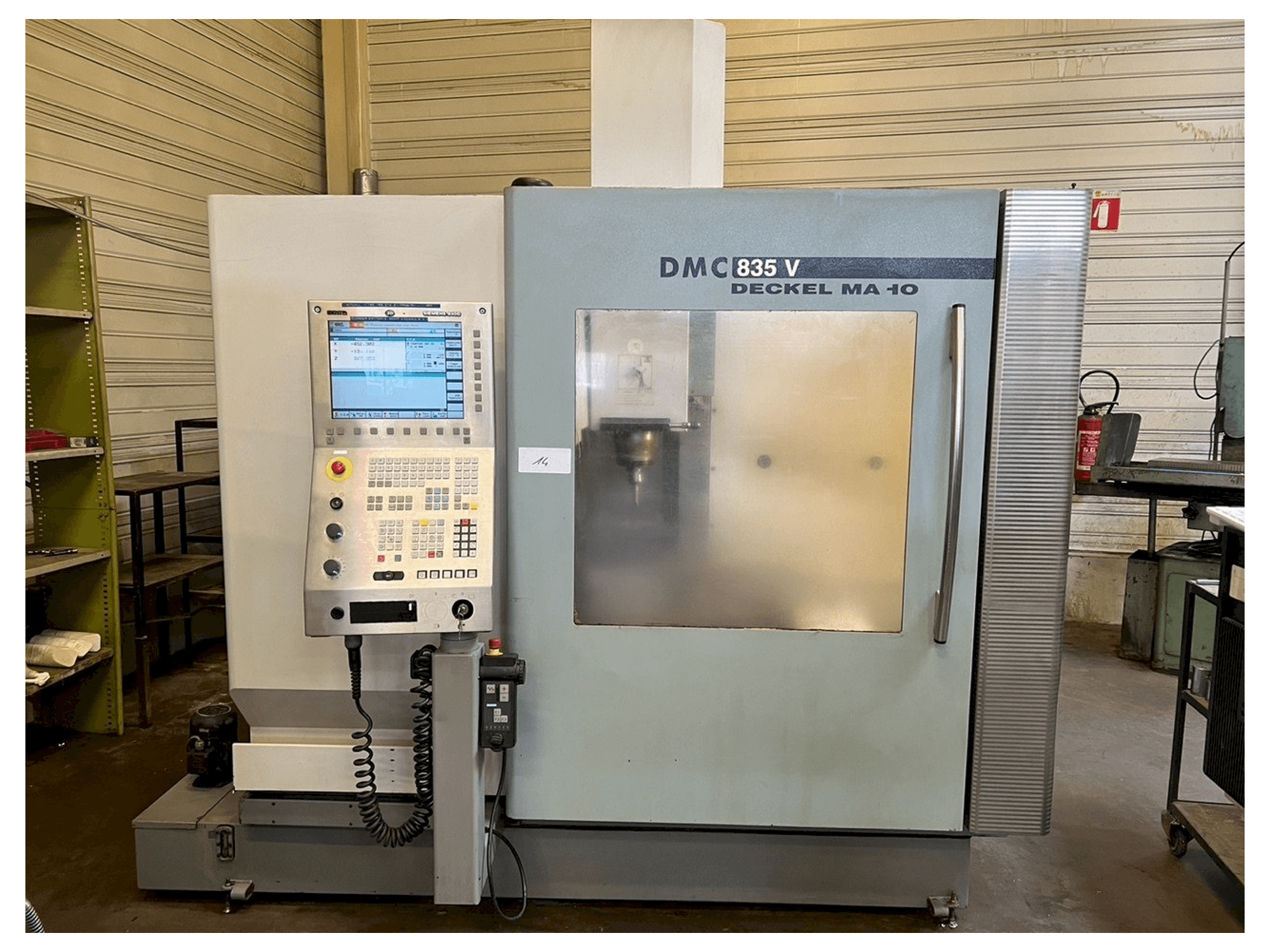

This DMG DMC 835 V Vertical Machining Center was manufactured in the year 2006 in Germany and has 12400 production hours. It is equipped with a SIEMENS 3D 840D SHOPMILL control unit and has 3 axis. The machine has a spindle speed of 12000 rpm, is in good condition, and is well maintained.

Overview

brand: DMG
year: 2006
MODEL: DMC 835 V
production hours: 12400
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG DMC 835 V

Control Unit

Brand: SIEMENS
Model: 3D 840D SHOPMILL

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 19 kW
Number of axis: 3

Movement

X-AXIS Movement: 835 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1000 mm
Outer width: 560 mm
Table load: 800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse 30 m/mn
- - Atc 20 positions
- - All documentations + plc & machine dats backup
- - Spindle changed 08/2017
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
