Deckel Maho Gildemeister DMC 63 V Vertical Machining Center

Show in original language

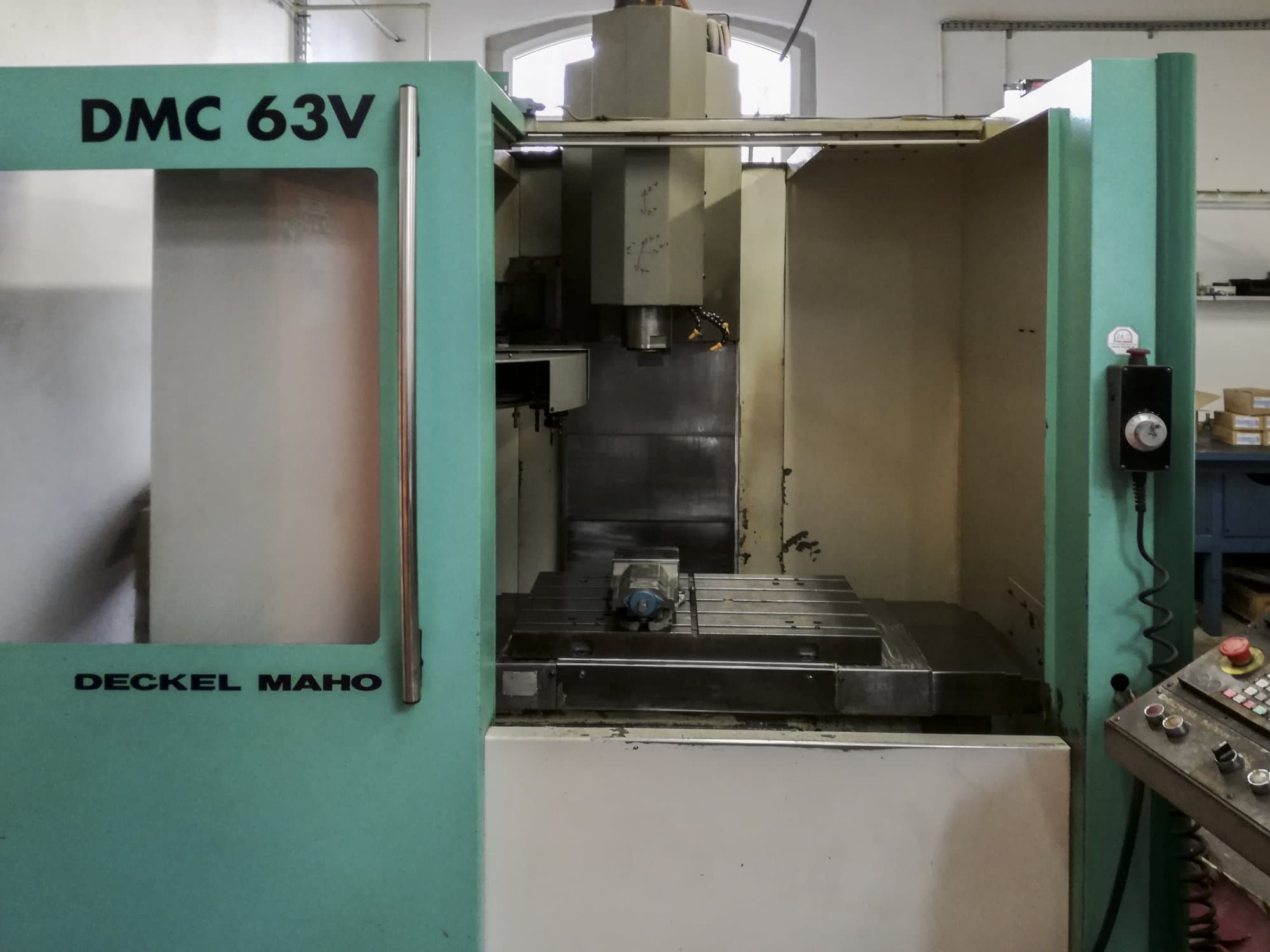

This DMG DMC 63 V Vertical Machining Center from 1997 was manufactured in Germany and has a working record of only 9261 production hours since then. This machine is operated through a SIEMENS SINUMERIK 810D Control unit and comes in very good working conditions due to regular service inspections and its few working hours.

Overview

brand: DMG
year: 1997
MODEL: DMC 63 V
production hours: 9261
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Siemens

Technical Information - DMG DMC 63 V

General Data

Measurements width: 3180 mm
Measurements depth: 3410 mm
Measurements height: 2630 mm
Machine weight: 4200 kg

Control Unit

Brand: Siemens
Model: SINUMERIK 810D

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 800 mm
Workpiece y: 500 mm
Workpiece weight: 500 kg

Table

Outer length: 800 mm
Outer width: 500 mm

Tools

Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
