➤ Used DMG DMC 60 T rs3 For Sale | gindumac.com

Show in original language

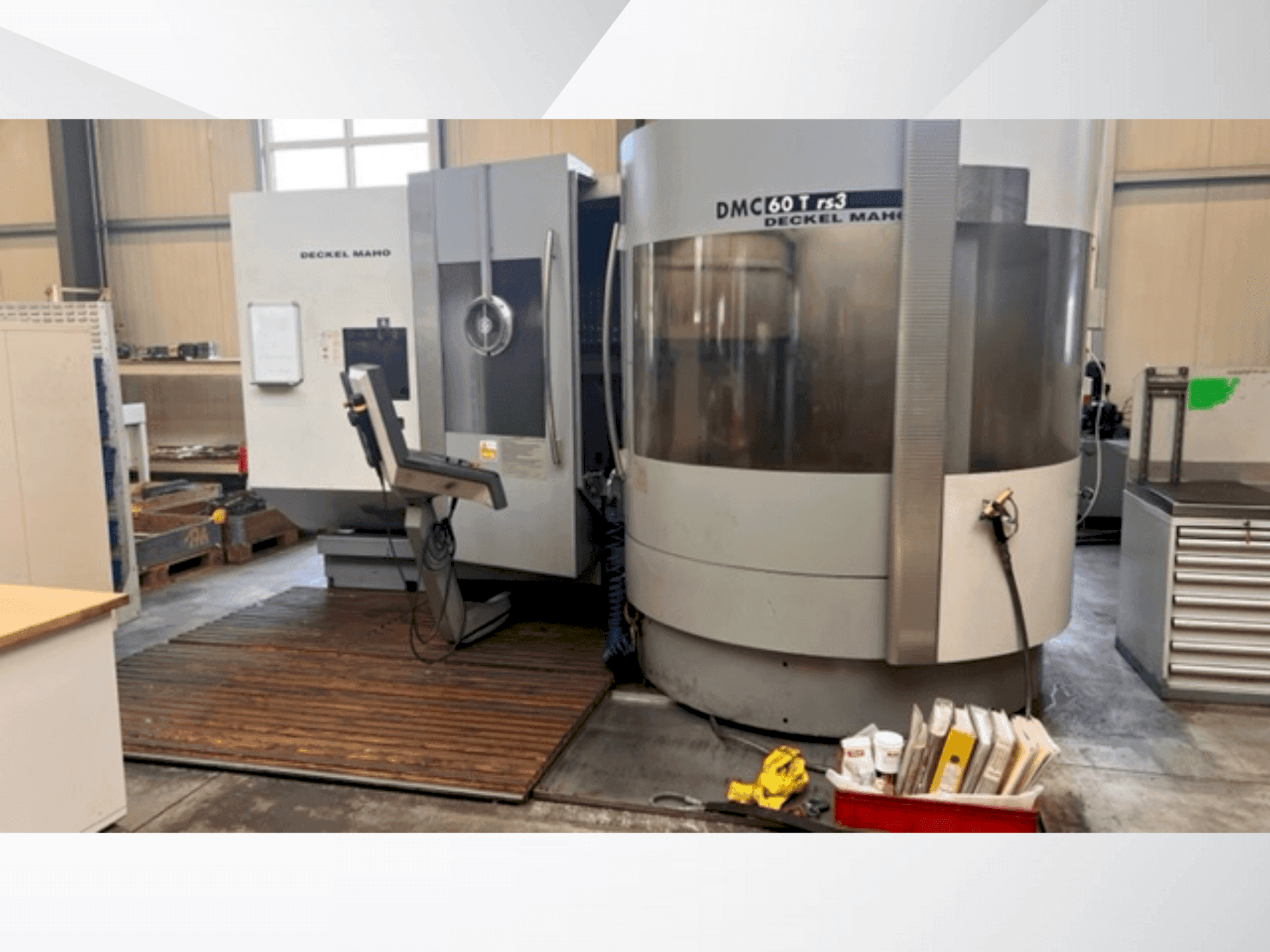

This 5-axis DMG DMC 60 T rs3 universal machining centre was manufactured in 2004. It features a Heidenhain TNC530 control system, rapid traverse up to 50 m/min, and a spindle speed of 12,000 rpm. The machine accommodates a max tool weight of 8 kg and includes an NC rotary table. Ideal for complex machining tasks, the DMG DMC 60 T rs3 machine we have for sale. Contact us for further details regarding this universal machining centre.

Overview

brand: DMG
year: 2004
MODEL: DMC 60 T rs3
production hours: 40646
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMC 60 T rs3

General Data

Measurements width: 3300 MM
Measurements depth: 3400 MM
Measurements height: 2600 MM
Machine weight: 9610 KG

Control Unit

Model: TNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 630 MM
Y-AXIS Movement: 630 MM
Z-AXIS Movement: 750 MM

Media

Chip conveyor: Yes

Additional equipment

- NC rotary table
- Measuring system
- Belt filter system (900 L)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed rate: 20-15,000 mm/min
- - Rapid traverse: 50 m/min
- - Set-up mode: 20-2000 mm/min
- - Resolution xyz: 0. 001 mm
- - Position tolerance: 0. 010 mm
- - Max. Tool diameter: with all spaces occupied: 80 mm
- - With free neighbouring spaces: 180 mm
- - Max. Tool length from spindle nose: without tool breakage monitoring: 315 mm
- - Max. Tool weight: 8 kg

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
