DMG - Deckel Maho DMU 80 PDE-MIL-DMG-1999-00001
Do you have further questions? Contact us.
![sales contact](https://storage.googleapis.com/gindumac-public/team/sergi_guardia.jpg)
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- DMG Deckel Maho DMU 80 P Vertical Machining center

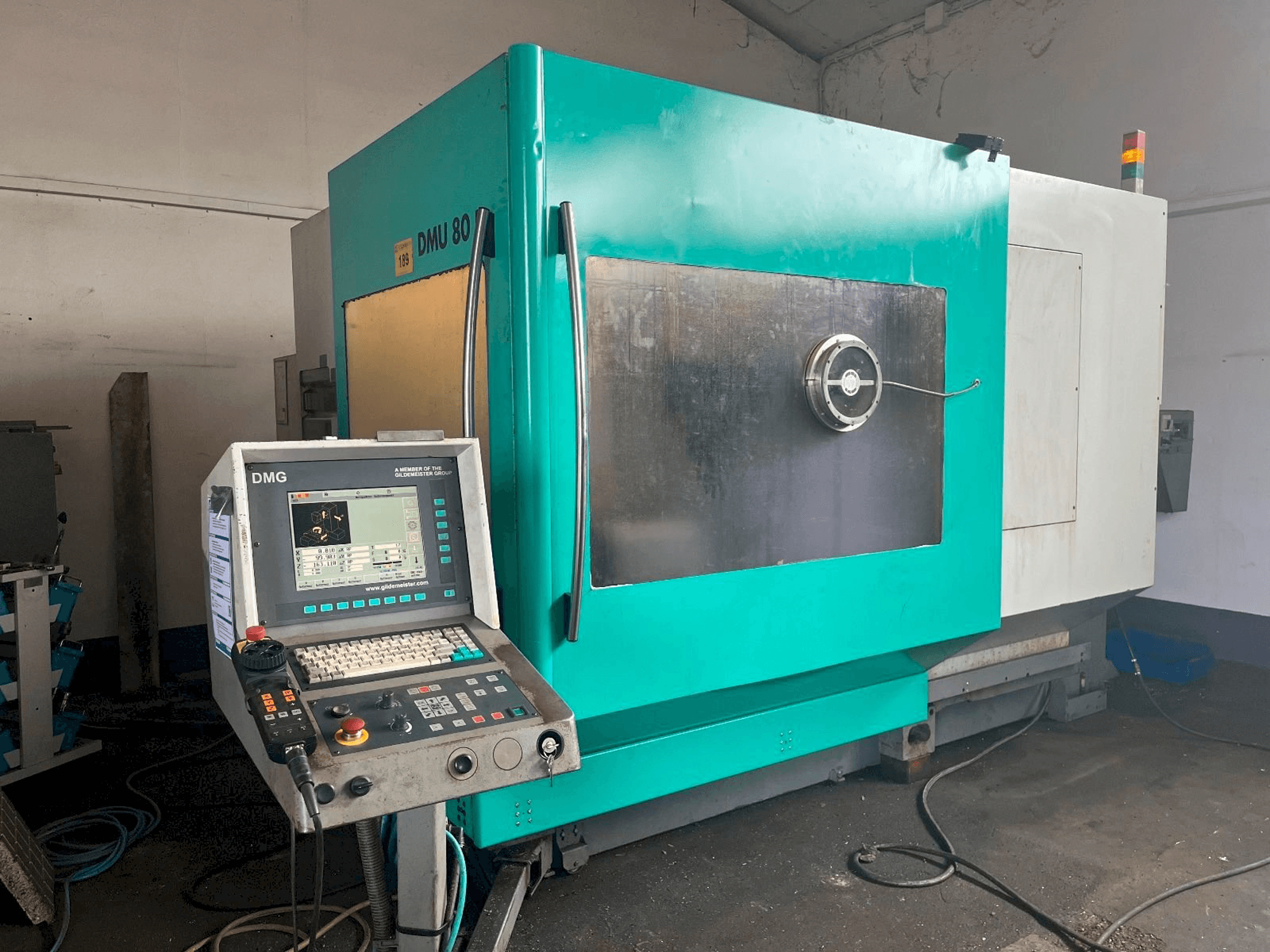

This DMG Deckel Maho DMU 80 P Vertical Machining Center was manufactured in the year 1999 and has 17530 spindle hours. It is equipped with a DMG MILL PLUS control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.
Overview
- brand: DMG
- year: 1999
- MODEL: Deckel Maho DMU 80 P
- production hours: 34477
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: DMG
Technical Information - DMG Deckel Maho DMU 80 P
General Data
- Measurements width: 4500 mm
- Measurements depth: 3300 mm
- Measurements height: 2600 mm
- Machine weight: 9500 kg
Control Unit
- Brand: DMG
- Model: MILL PLUS
Main drive
- Spindle speed range: 18000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 800 MM
- Y-AXIS Movement: 700 MM
- Z-AXIS Movement: 600 MM
Tools
- Slots in storage: 40
- Type of tool holder: SK-40
Additional Information
- Technical Machine Benefits:
- - Tool magazin capacity of 60 slots
- - Tapper size = sk40
- - Total connection: 45 kva
- - Feed range x-, y- and z-axis: 20 - 10000 mm/min
- - C-axis: 1 - 3600 degrees/min
- - Incl. C-axis
- - A-axis: 1-2600 degrees/min
- - Measuring system: resolution in x-, y- and z-axis: 0. 001 mm
- - Incl. Nc swivel rotary table (a+c axis)
- - Diameter: 630 mm
- Qualitative Machine Benefits:
- - Distance between t-slots: 63 mm
- - Workpiece weight: up to max. 7500 kg
- - Tool diameter: 100 mm
- - Max. Tool weight: 10 kg
- - Max. Tool weight in the magazine: approx. 200 kg
- - The machine is equipped with a chip conveyor, an automatic belt automatic belt filter and a hydraulic unit
- - Incl. Traverse for crane unloading
- - The machine is under power and can be inspected
- - Hydraulic vice
- - Hydraulic clamp for rotary table sk 50
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
