➤ Used DMG CMX 800V For Sale | gindumac.com

Show in original language

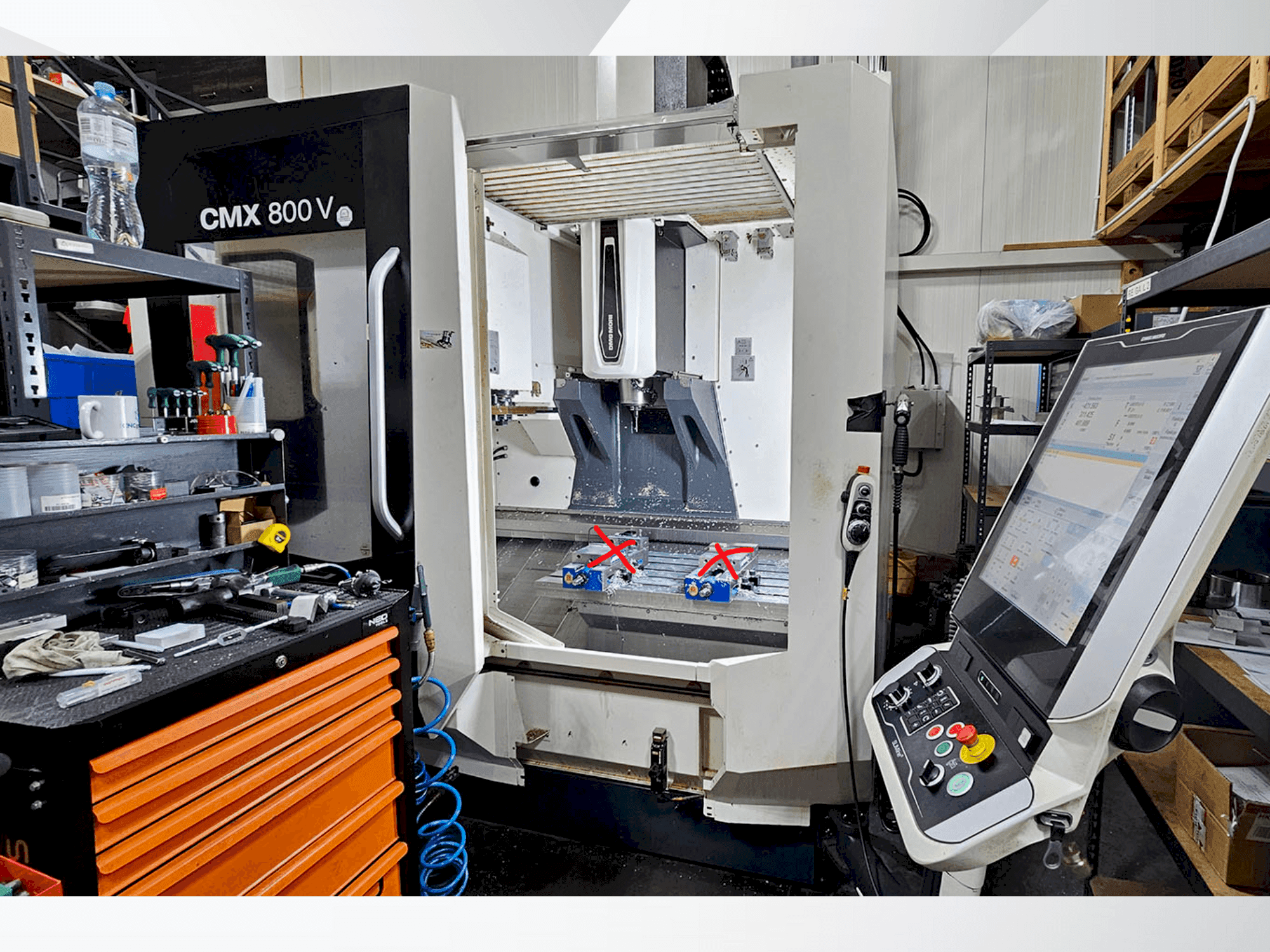

This 3-axis DMG CMX 800V vertical machining center was manufactured in 2021. It features a table size of 1100 x 560 mm, rapid traverse speeds up to 30 m/min, and a spindle speed range of 20 to 12,000 RPM. The machine includes a 30-position tool magazine, internal coolant supply, and a Renishaw probing system. If you are looking to get high-quality milling capabilities, consider the DMG CMX 800V machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DMG
year: 2021
MODEL: CMX 800V
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG CMX 800V

Control Unit

Brand: SIEMENS
Model: DMG MORI Slimline® Multi-Touch / SIEMENS 840D SL

Main drive

Tool taper: SK40 DIN69871

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 1100 mm
Outer width: 560 mm

Additional equipment

- Equipped with a double gripper
- Precision Probe Package: Renishaw Probing System / PP40 Wireless Workpiece Measuring Probe / OTS Tool Measuring Probe / Measurement cycles with tool breakage detection /Calibration pin with tool holder / Probe calibration ring / Accessory case / Air gun
- Internal coolant supply, 12 bar
- Scraper-type chip conveyor with 220L tank capacity (left-side discharge)
- Workspace and tool arm washing via M-function
- Manual washing for the machining area
- DMG MORI IoTconnector
- Handheld control panel (manual handwheel)
- Automatic workspace roof (controlled via M-function)
- 4-color signal lamp

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ac: 13/9 kw (40/100% dc)
- - Rapid traverse speed for linear axes: 30 m/min
- - Tool clamping according to din69872
- - 30-position chain-type tool magazine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
