➤ Used DEMAG Ergotech Compact 125-440 | Injection Moulding

Show in original language

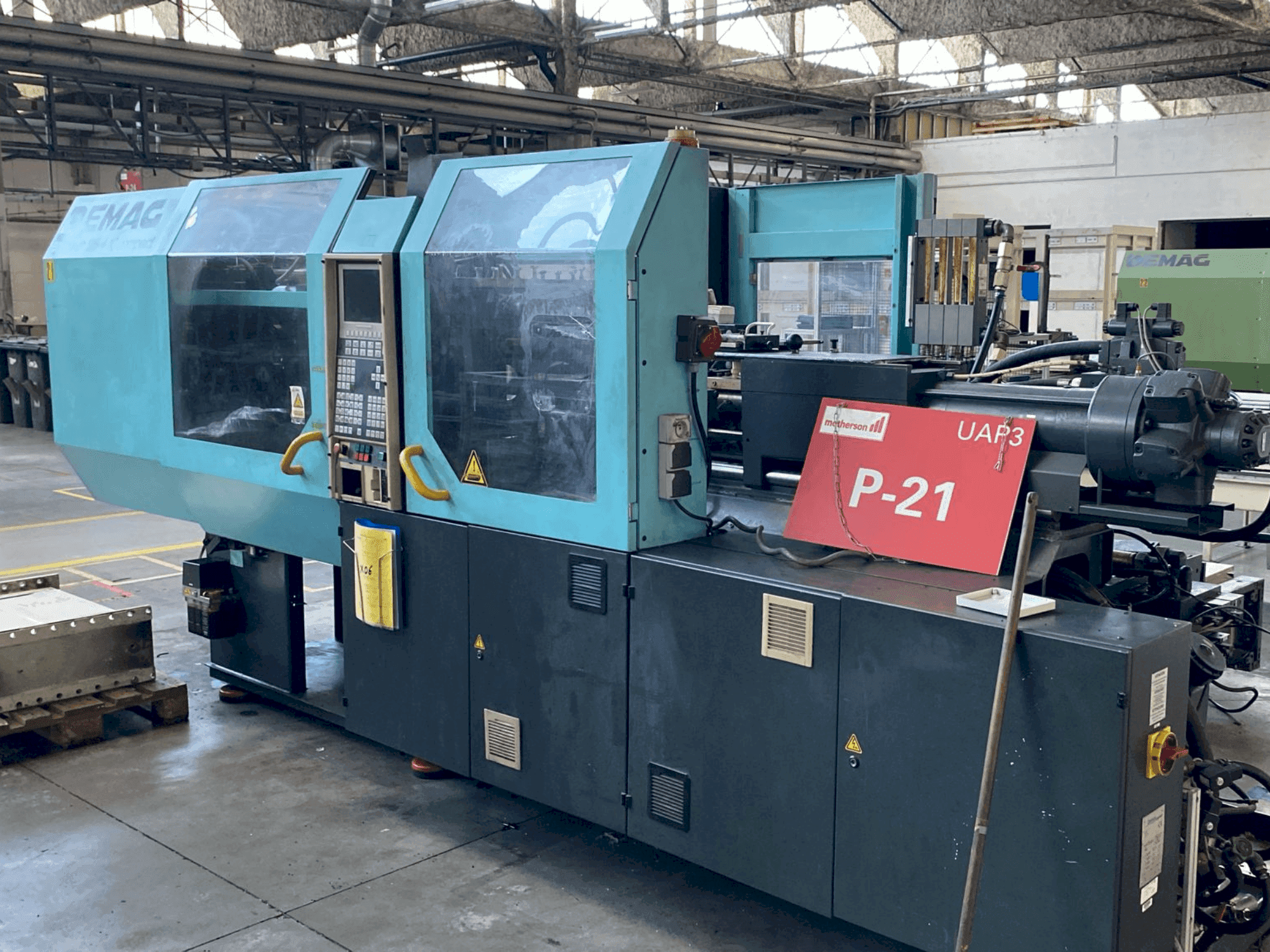

This DEMAG Ergotech Compact 125-440 hydraulic injection moulding machine was manufactured in 1998. Contact us for more information.

Overview

brand: DEMAG
year: 1998
MODEL: Ergotech Compact 125-440
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - DEMAG Ergotech Compact 125-440

Injection Unit

Screw diameter: 40 mm
Stroke volume: 231 cm³
Injection pressure: 1855 bars

Clamping unit

Clamping force: 125 tons KN

Additional Information

Extra information

- Machine-Specific Data Horizontal Tie Bar Spacing: 475 mm Vertical Tie Bar Spacing: 450 mm Maximum Platen Opening: 910 mm Maximum Mold Size: 450 mm Minimum Mold Size: 180 mm Maximum Ejection Stroke: 140 mm Ejection Rod Length: 80 mm Fixed Centering Plate Diameter: 125 mm Movable Centering Plate Diameter: 125 mm Platen Tapping Diameter: M16 Number of Cores: 1 Maximum Mold Weight: 1100 kg Mold Weight on Moving Platen: 730 kg Media Pump Power: 22 KW Heater Power: 11.7 KW Robot Power: 4 KVA Oil Reservoir Volume: 500 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
