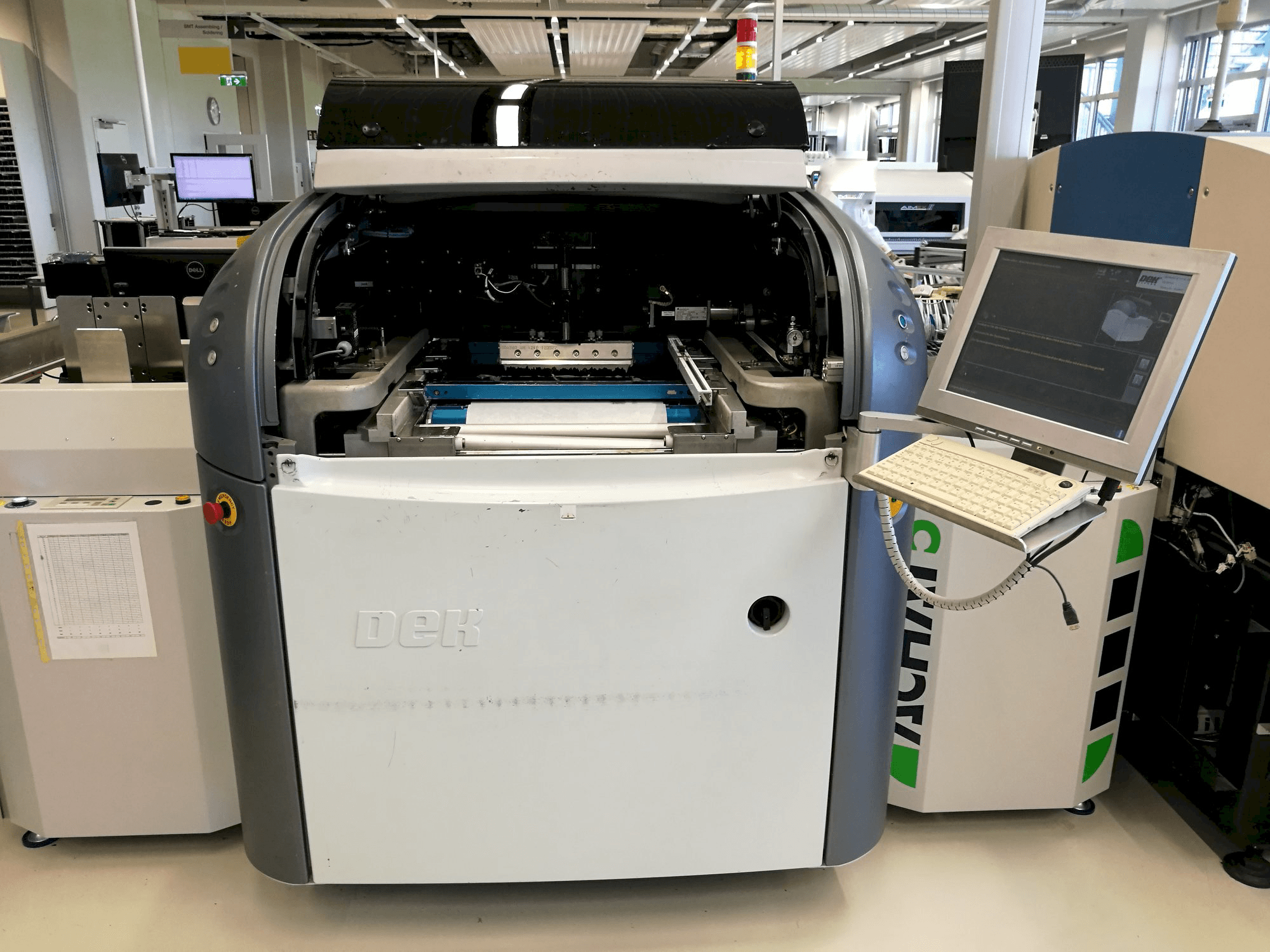

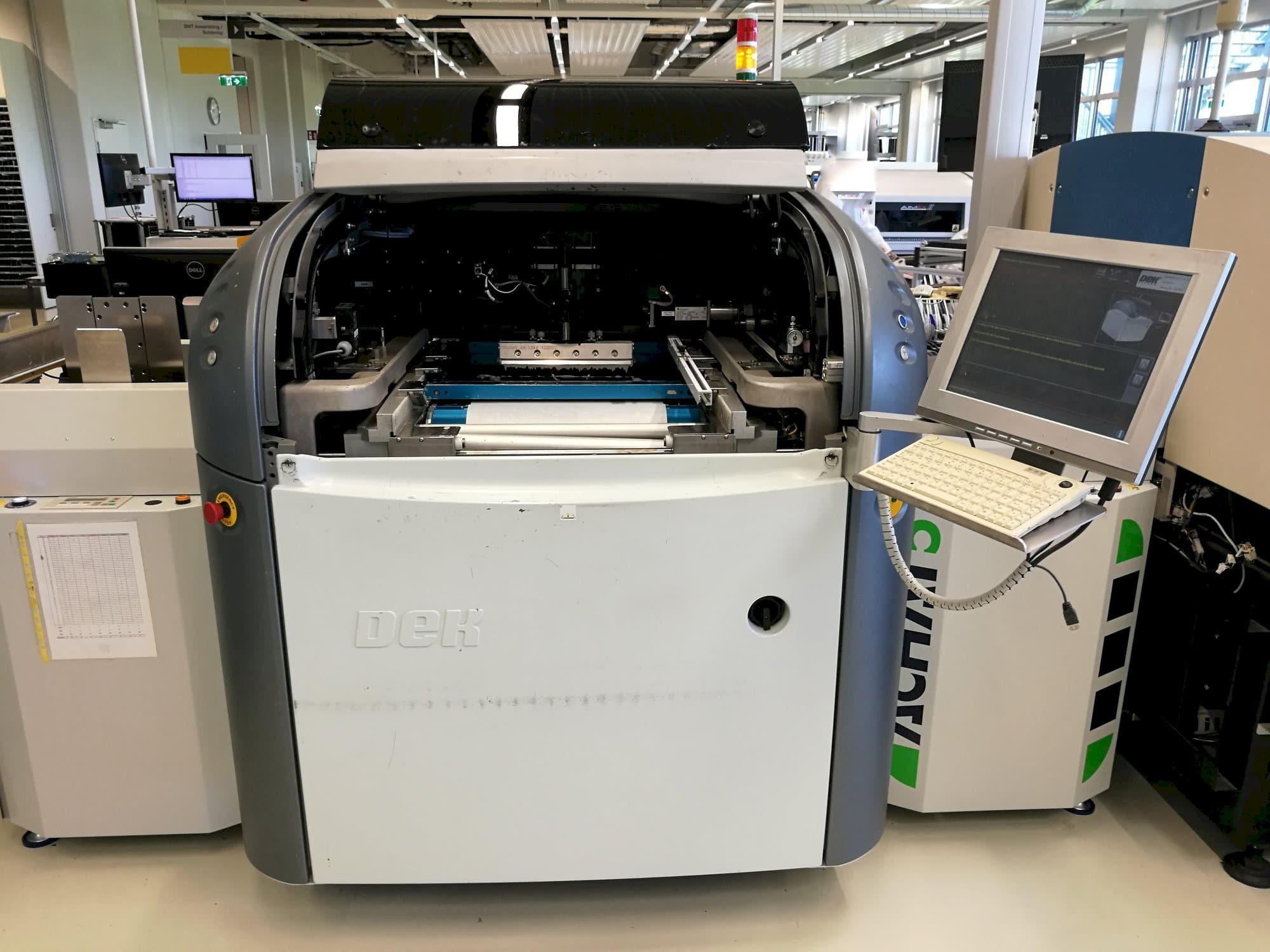

DEK HORIZON 03i X Printer

Show in original language

This DEK HORIZON 03i X Printer was manufactured in 2010 in the United Kingdom. It has been working for 34000 hours. It is equipped with a Instinictiv V9 control unit. This machine works with 2 axis.

Overview

brand: DEK
year: 2010
MODEL: HORIZON 03i X
production hours: 34000
application type: 3D Printing
Location: Austria
machine type: Plastic 3D Printer
availability: Sold

Technical Information - DEK HORIZON 03i X

General Data

Measurements width: 2060 mm
Measurements depth: 1500 mm
Measurements height: 1570 mm
Machine weight: 810 kg

Control Unit

Model: V9
CNC main language: English
CNC language customizable: Yes

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 508 mm

Workpiece

Workpiece x: 510 mm
Workpiece y: 508 mm

Table

Outer length: 510 mm
Outer width: 508 mm

Media

Main electronic connection: 230 V

Additional Information

Machine history

Material type: Paste
End product: Circuit boards
Industries: Measuring industry

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
