DECKEL MAHO FP4MA Milling Machine

Show in original language

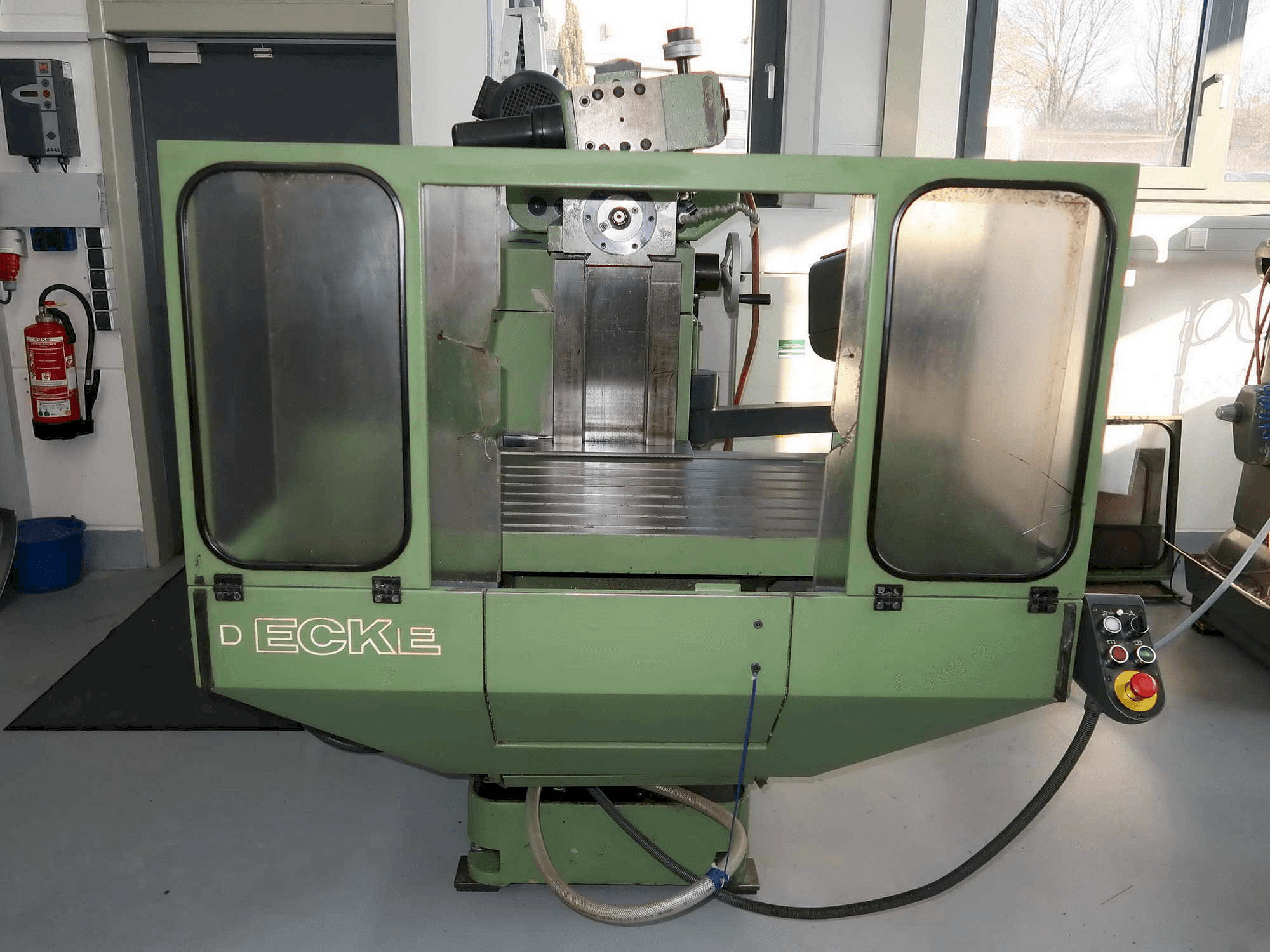

This DECKEL MAHO FP4MA Milling Machine was manufactured in 1991 in Germany. With a moveable vertical milling head of 50 mm and power operated tool clamps, this machine presents a well maintained status.

Overview

brand: DECKEL MAHO
year: 1991
MODEL: FP4MA
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold

Technical Information - DECKEL MAHO FP4MA

General Data

Machine weight: 1830 kg

Main drive

Spindle speed range: 3150 rpm 1/MIN

Movement

X-AXIS Movement: 485 mm
Y-AXIS Movement: 385 mm
Z-AXIS Movement: 380 mm

Table

Number of tslots: 4
Distance between: 63 mm
Table load: 600 kg

Tools

Type of tool holder: SK40

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 12.5 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Moveable vertical milling head with extendable spindle
- - Counter bearing for a long putter drone
- - Power-operated tool clamps (horizontal & vertical)
- - Automatic clamps in the x axis
- - Automatic centralised lubrication
- - Coolant system
- - Collision protection clamps
- - Direct path measurement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
