➤ Used DECKEL MAHO DMU60T Vertical Machining Center

Show in original language

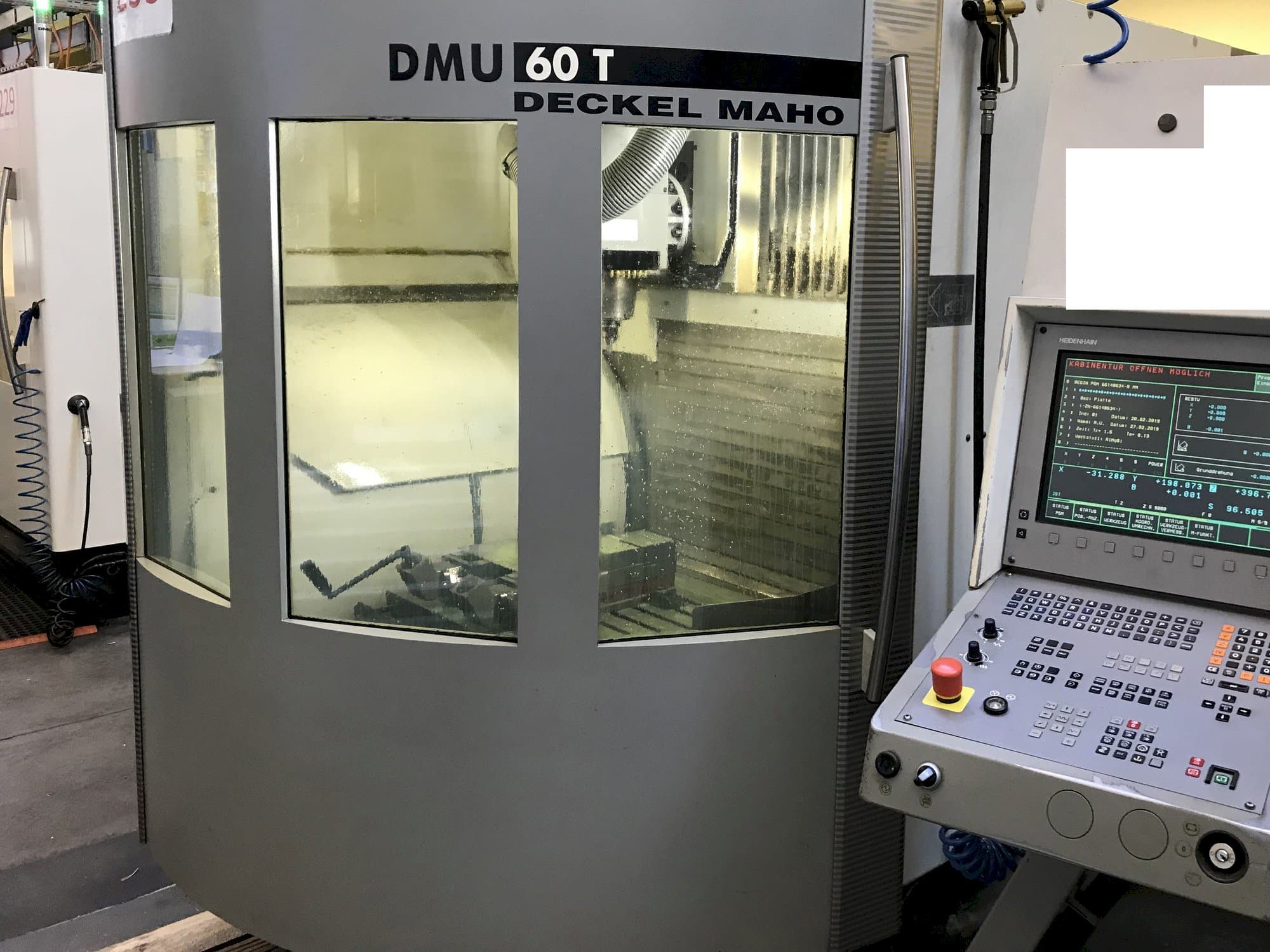

This DECKEL MAHO DMU60T Vertical Machining Center was built in 2001 in Germany and counts with 11700 hours. Equipped with a Heidenhain iTNC 430 Control unit, this machine can operate with a spindle speed up to 12000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU60T
production hours: 11700
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU60T

General Data

Measurements width: 2880 mm
Measurements depth: 3491 mm
Measurements height: 2847 mm

Control Unit

Model: iTNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 10 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 26m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 26m/min
Z-AXIS Movement: 560 mm
Z-AXIS Rapid traverse: 20m/min

Table

Outer length: 1000 mm
Outer width: 600 mm
Number of tslots: 9
Distance between: 63 mm
Table load: 500 kg

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 315 mm

Media

Power consumption: 49 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Deckel-Maho-DMU60T_Technical-Specs_CH-MIL-DEC-2001-00001.pdf
