DECKEL MAHO DMU 70

Show in original language

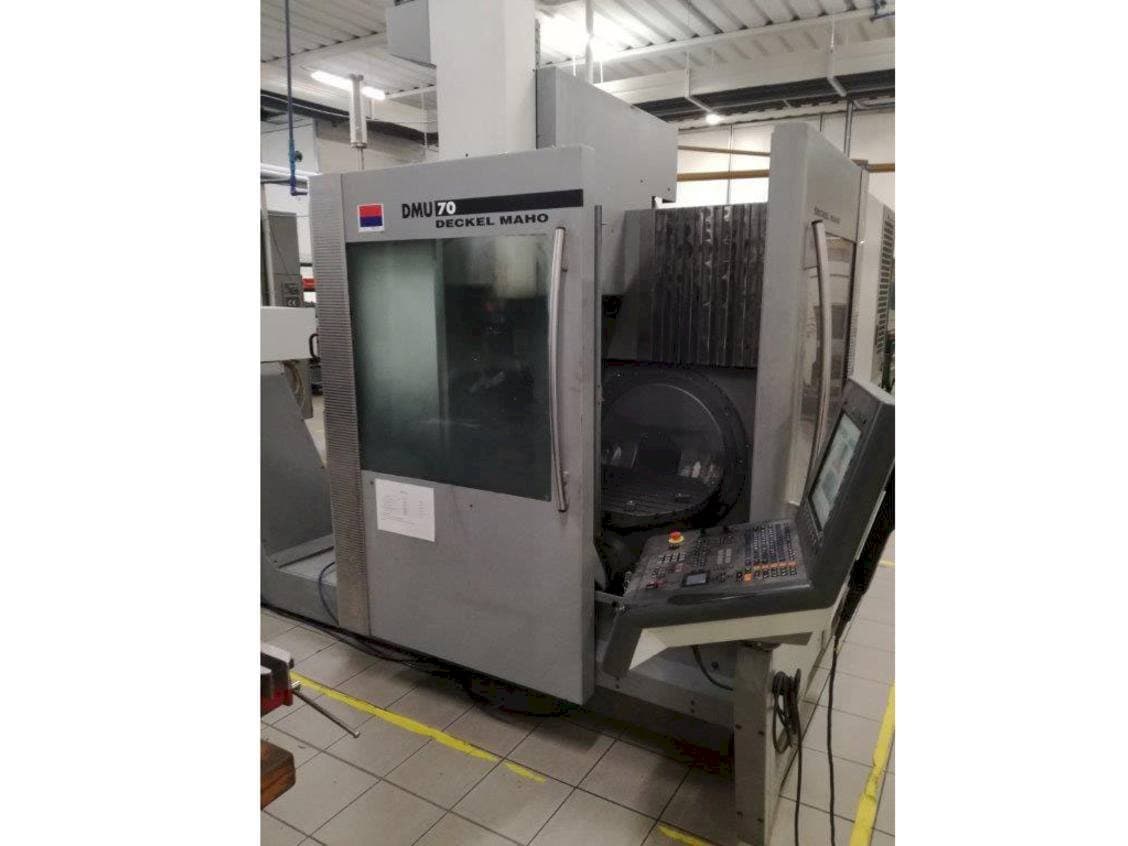

This DECKEL MAHO DMU 70 Vertical Machining Center was built in Germany in 2007. This 5 axis machine operates through a DMG 3D HEIDENHAIN iTNC 530 control unit. It has a record of 57705 hours, of which approximately 16000 are spindle hours. This machine works with a spindle speed up to 14000 rpm. It incorporates a table of 800 x 620 mm and 30 magazine places. This machine includes an electronic handwheel and a touch probe TS640.

Overview

brand: DECKEL MAHO
year: 2007
MODEL: DMU 70
production hours: 57705
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 70

Control Unit

Model: 3D iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 14000 1/MIN
Spindle motor power: 19 kW
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 800 mm
Outer width: 620 mm
Table load: 350 kg

Tools

Type of tool holder: SK 40

Media

Main electronic connection: 400 V 50 Hz
Chip conveyor: Yes

Additional equipment

- electronic handwheel
- touch probe TS640

Additional Information

Machine Benefits

Technical Machine Benefits:
- - It is a 5 axis machine (3 + 2)
- - Number of magazine places 30
- - Swing-tilting head +10* / -95*

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
