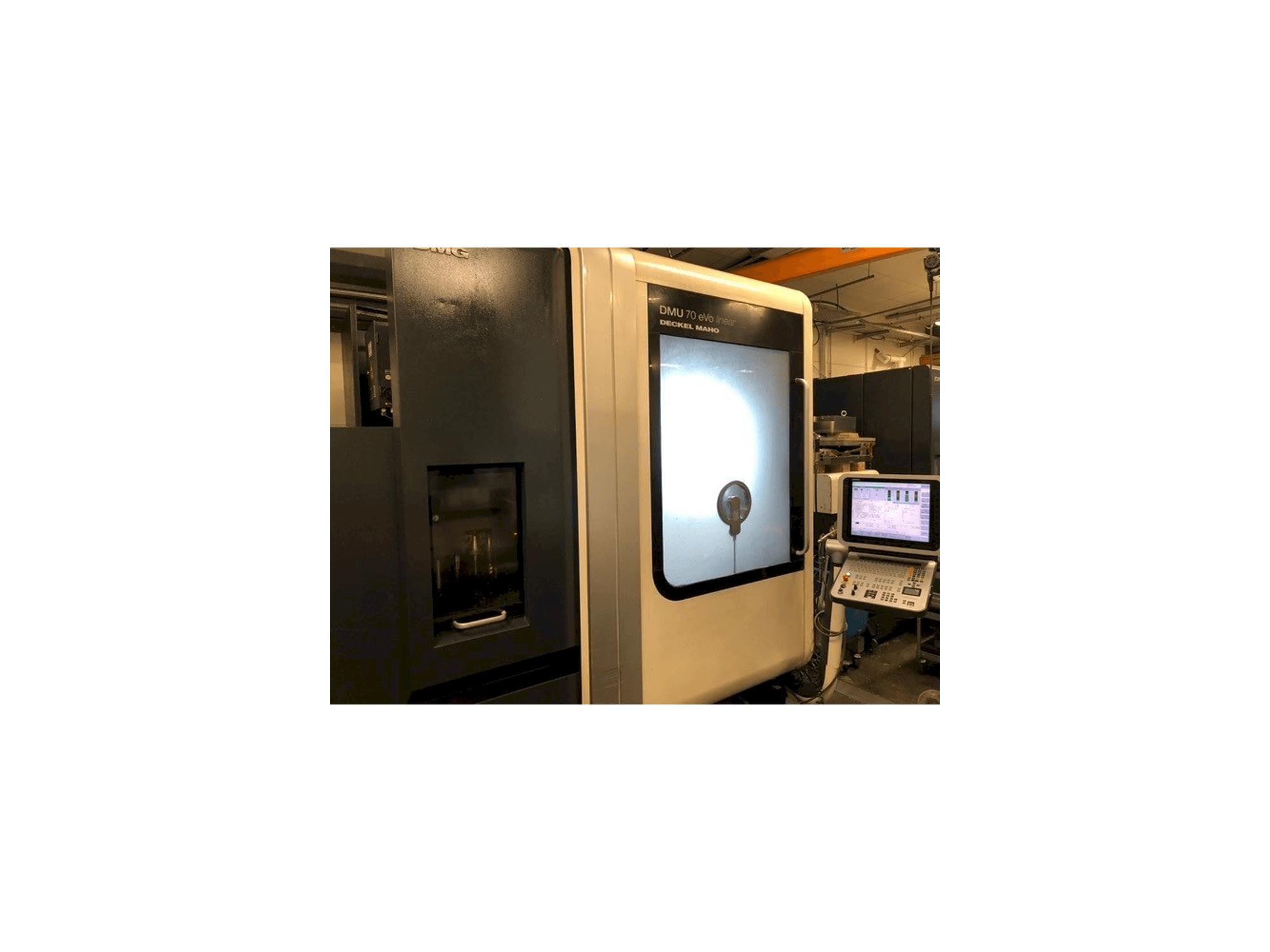

DECKEL MAHO DMU 70 eVo Linear Universal Machining Center

Show in original language

This DECKEL MAHO DMU 70 eVo Linear Universal Machining Center was made in the year 2009 and has been operative for 42962 hours, from which 18842 are running hours. Equipped with a HEIDENHAIN iTNC 530 Control unit, this 5 axis machine can work with a spindle speed up to 18000 rpm.

Overview

brand: DECKEL MAHO
year: 2009
MODEL: DMU 70 eVo Linear
production hours: 42962
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 70 eVo Linear

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
X-AXIS Working Feed: 80 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 50 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Working Feed: 50 m/min

Table

Outer length: 800 mm
Outer width: 620 mm
Table load: 350 kg

Media

Internal cooling: Yes

Additional equipment

- filter for internal cooling
- chip conveyor
- electronic handwheel
- Measuring probe

Additional Information

Machine history

Material type: Aluminium, copper

Machine Benefits

Technical Machine Benefits:
- - 60 tool places
- - Cooling lubricant cleaning system 600 litres
Qualitative Machine Benefits:
- - Regular 2000h maintenance with exchange of the rotary unit
- - Service reports available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
