➤ Used DECKEL MAHO DMU 60T For Sale | gindumac.com

Show in original language

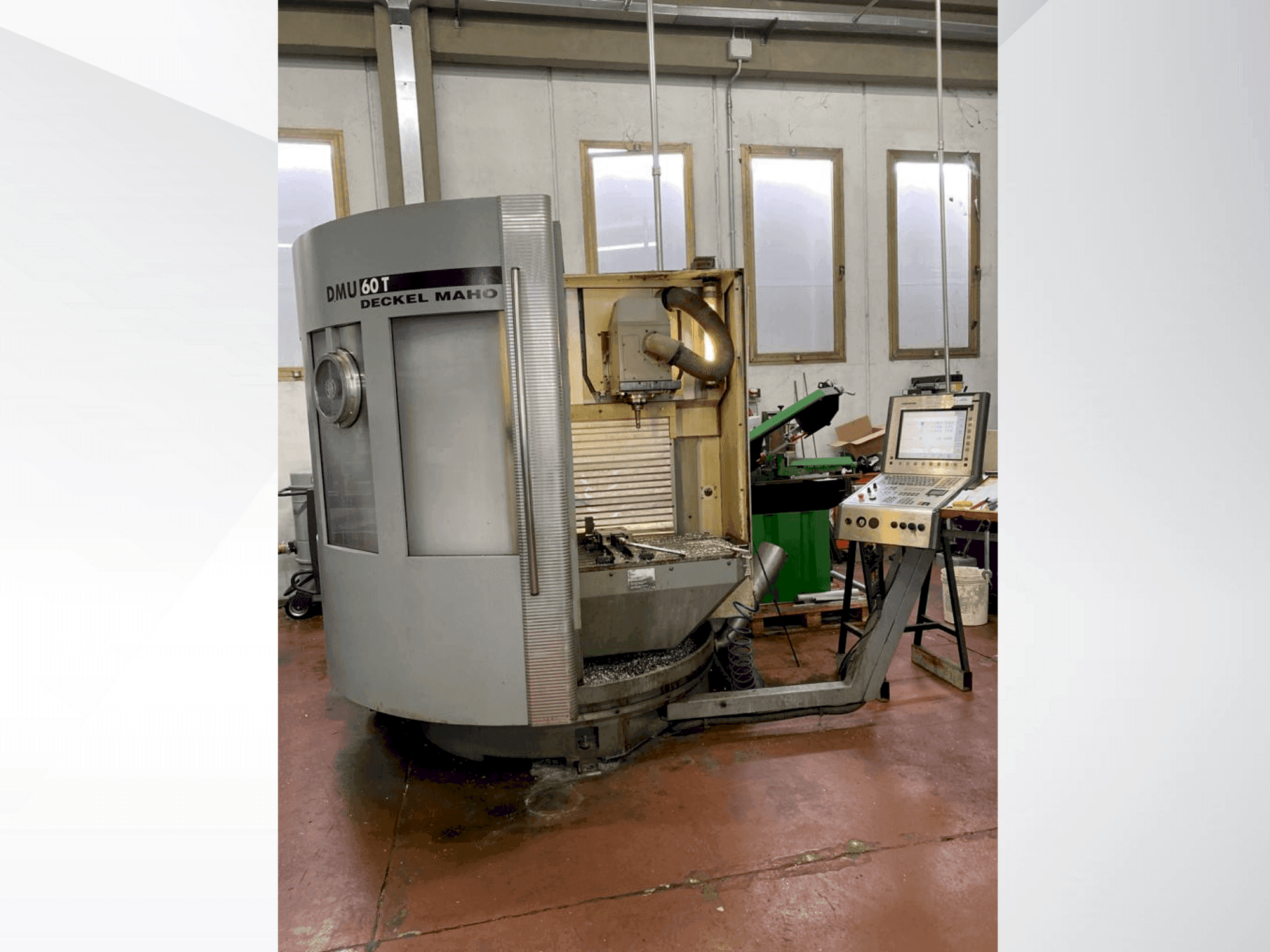

This 4-axis DECKEL MAHO DMU 60T vertical machining center was manufactured in 2005. It features a robust table size of 1000 mm by 600 mm, capable of handling loads up to 400 kg. Equipped with a high-speed spindle reaching 18,000 rpm and powered by 13 kW, it ensures efficient machining. Includes a HeidenHain Mill Plus control and a chip conveyor. A great opportunity to buy this DECKEL MAHO DMU 60T vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: DECKEL MAHO
year: 2005
MODEL: DMU 60T
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 60T

General Data

Measurements width: 3000 MM
Measurements depth: 3500 MM
Measurements height: 2500 MM

Control Unit

Model: Mill Plus
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 13 KW
Tool taper: HSK-63A

Movement

X-AXIS Movement: 630 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 560 MM

Table

Outer length: 1000mm
Outer width: 600mm
Table load: 400kg

Turret

Number of tool slots: 20

Additional equipment

- Cooling through spindle
- Chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed (18000 rpm)

Extra information

- Feed Rate: X-axis: 26,000 mm/min Y-axis: 26,000 mm/min Z-axis: 20,000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
