DECKEL MAHO DMU 60T Vertical Machining Center

Show in original language

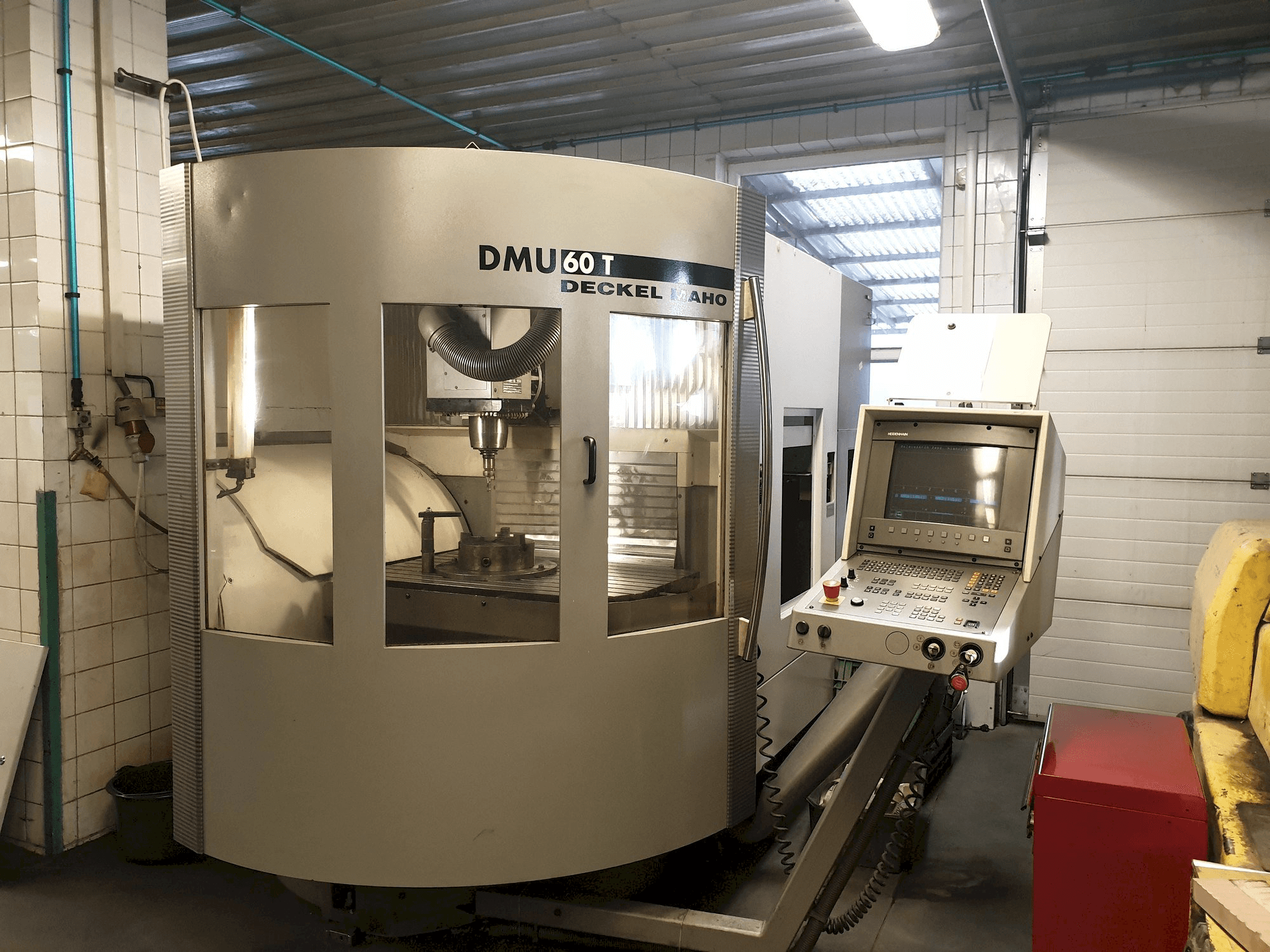

This DECKEL MAHO DMU 60T Vertical Machining Center was made in the year 2001. It is equipped with a Heidenhain TNC 426/430 control unit. It has been on for 25184 hours, of which 5882 are spindle hours. This 4-axis machine can work with a spindle speed of up to 12000 rpm. It is in very good working conditions.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 60T
production hours: 25184
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 60T

General Data

Measurements width: 3000 mm
Measurements depth: 2000 mm
Measurements height: 2150 mm
Machine weight: 6700 kg

Control Unit

Model: TNC 426/430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Rapid traverse: 26 m/min
Y-AXIS Rapid traverse: 26 m/min
Z-AXIS Rapid traverse: 20 m/min

Table

Table load: 400 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Traverse x 630/y 560/z 560
- - Tool holder sk40 according to din 69871
- - Tool clamping according to din 69872
- - Feed x, y, z from 20-10. 000 mm/min
- - Tool magazine: 24 magazine places in plate magazine (2x 12 places)
- - Rigid angular table 1000mm x 600mm , 9 pcs grooves 14mm, 63mm spacing
- - Elec. Handwheel
- - Operating mode 4
- - There is a 4th axis for the machine which can be used from the program as nc axis, can be used as a cnc splitter head or as a cnc rotary table.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
