DECKEL MAHO DMU 60T

Show in original language

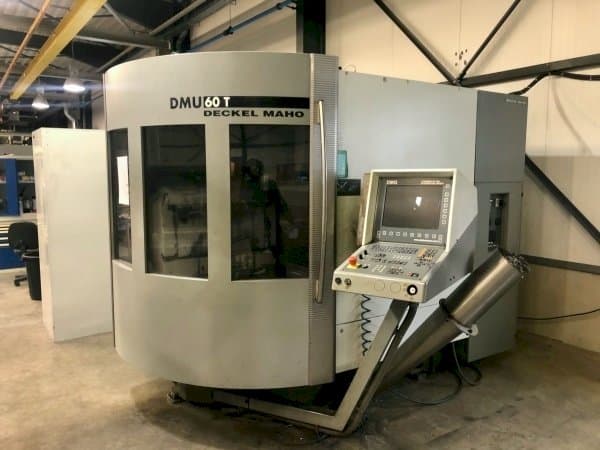

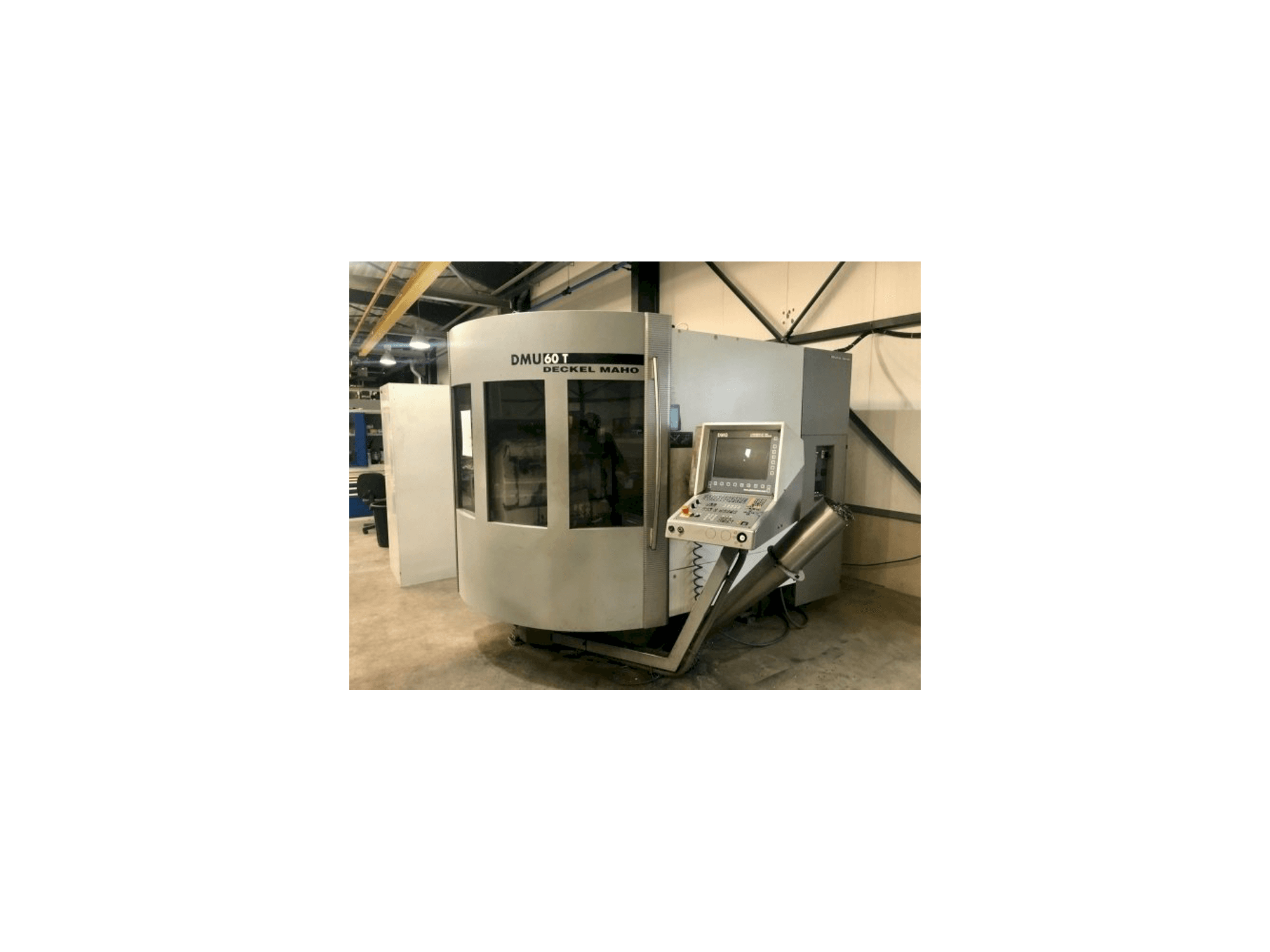

This DECKEL MAHO DMU 60T Vertical Machining Center was manufactured in 2001. It has been operative for 11990, of which 1359 are spindle hours. This 3 axis machine is operated through a HEIDENHAIN TNC426 / 430 control unit. It works with a spindle speed up to 12000 rpm. This machine includes some accessories as a cooling water system and a portable handwheel.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 60T
production hours: 11990
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 60T

General Data

Measurements width: 2100 mm
Measurements depth: 2800 mm
Measurements height: 2600 mm
Machine weight: 6300 kg

Control Unit

Model: TNC426 / 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 15 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 560 mm

Table

Outer length: 1000 mm
Outer width: 600 mm
Table load: 400 kg

Media

Chip conveyor: Yes

Additional equipment

- Cooling water system
- Portable handwheel
- funnel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine has 24 positions
Qualitative Machine Benefits:
- - Machine documentation, cds

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
