DECKEL MAHO DMU60T Vertical Machining center

Show in original language

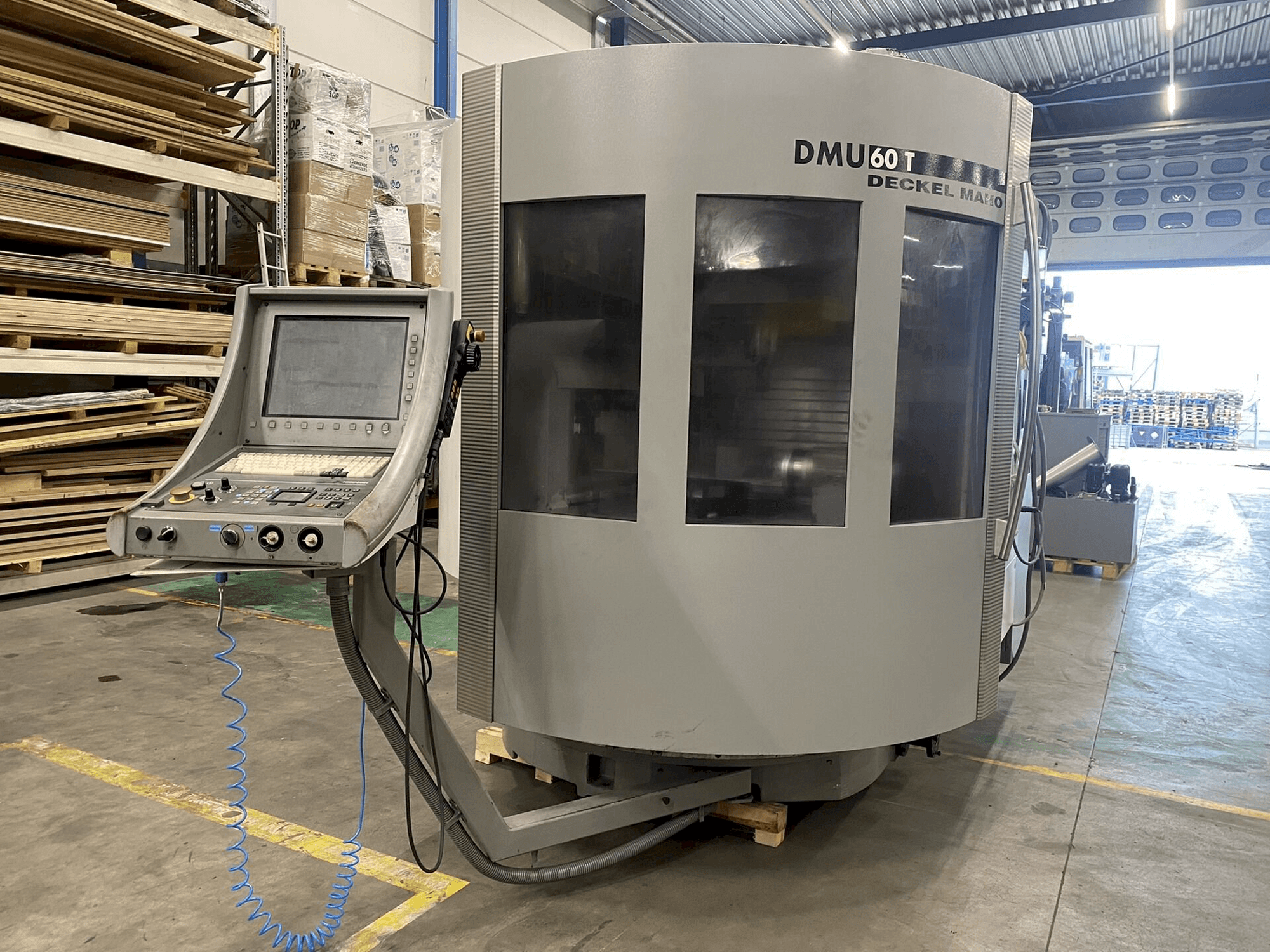

This DECKEL MAHO DMU60T Vertical Machining center was manufactured in the year 2001. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 60T
production hours: 22000
application type: Milling
Location: Greece
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 60T

General Data

Measurements width: 2200 MM
Measurements depth: 3500 MM
Measurements height: 2300 MM
Machine weight: 6700 KG

Control Unit

Brand: HEIDENHAIN
Model: TNC 430

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 630 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 560 MM

Additional equipment

- Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference)
- Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009
- Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis: hofmann rwnc-160 5th axis: rotary swivel spindle head 115 degrees
- - Cooling unit: schimpke dk25-v/s0
- - Max. Workpiece weight 400 kg
- - Table surface area l x w 1000x600 mm
- - Taper sk40
- - Toolchanger positions 20
- - Feed range 20-10000 mm/min rapid motion 20 m/min
- - Total power requirement 28 kw / 49kva
Qualitative Machine Benefits:
- - Max. Tool diameter: 160 mm
- - Max. Tool length: 315 mm
- - Max. Tool weight: 8 kg
- - Max. Weight in magazin: 100 kg

Extra information

- Max. tool diameter: 160 mm Max. tool length: 315 mm Max. tool weight: 8 kg Max. weight in magazin: 100 kg 4th axis: HOFMANN RWNC-160 5th axis: Rotary swivel spindle head 115 degrees Cooling unit: SCHIMPKE DK25-V/S0 Z- 560 mm X- 630 mm Y-560 mm max. workpiece weight 400 kg Control Heidenhain TNC 430 Table surface area l x w 1000x600 mm Taper SK40 Toolchanger positions 20 Turning speed range 18000 rpm Feed range 20-10000 mm/min Rapid motion 20 m/min Total power requirement 28 kW / 49kVA Weight approx. 6700 kg Dimensions (l x w x h) approx. 3500x2200x2300 mm It is has a 4th axis rotary and a positional 5th axis Cooling unit Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference) Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009 Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
