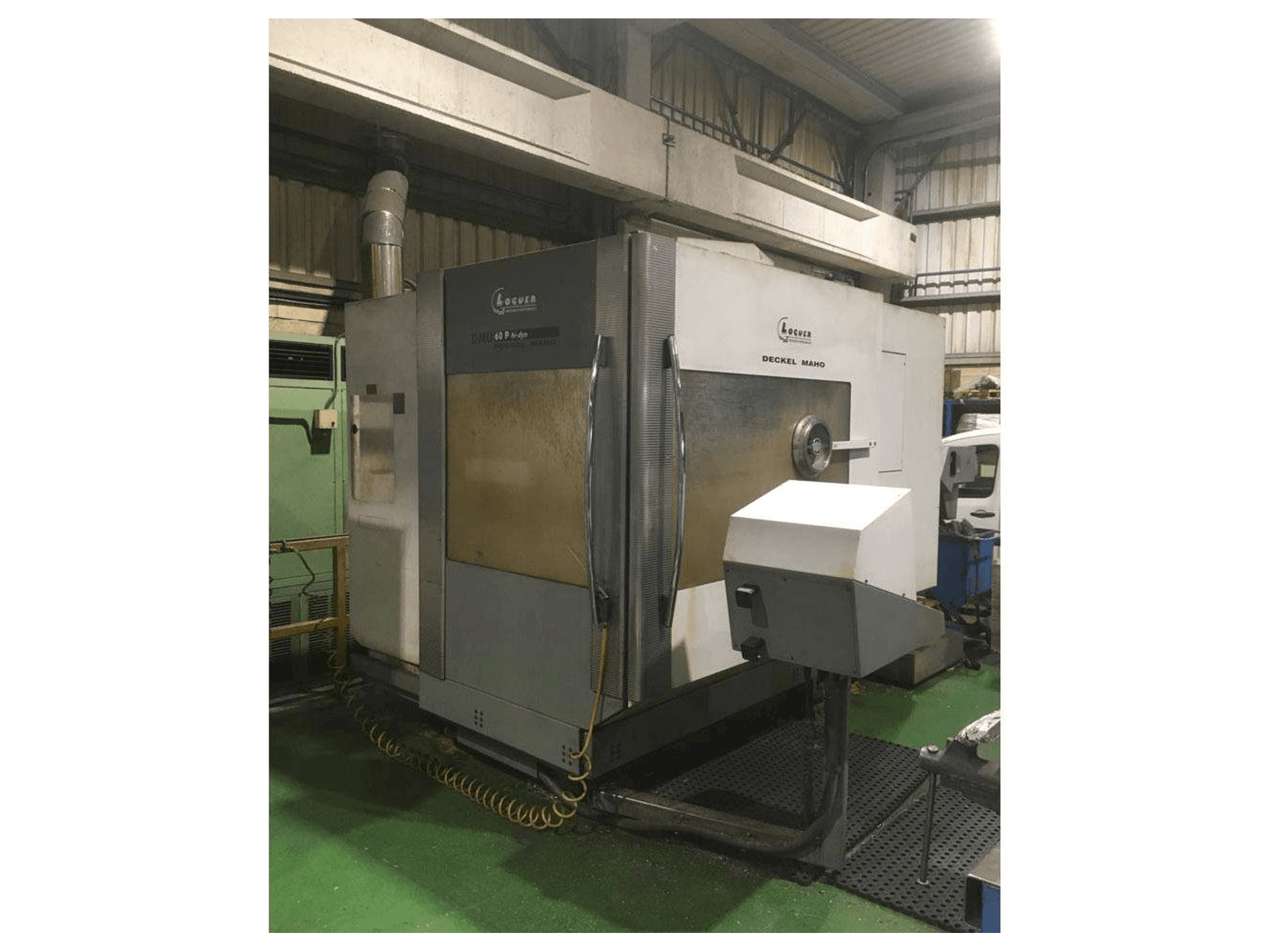

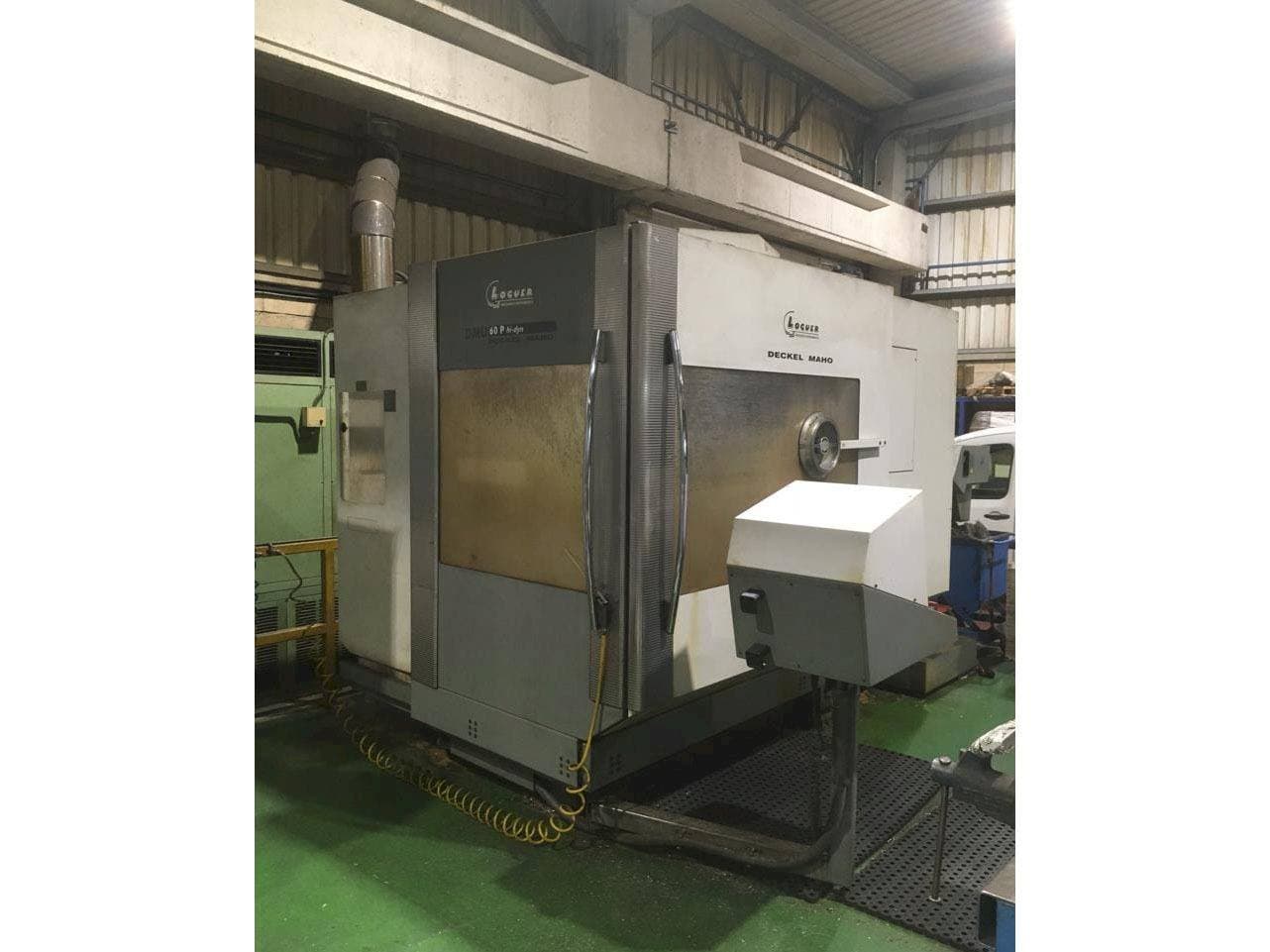

Deckel Maho DMU 60P hi-dyn Vertical and Horizontal Machining center

Show in original language

This Deckel Maho DMU 60P hi-dyn Vertical and Horizontal Machining center was manufactured in the year 2001 in Germany and has 33410 production hours. It is equipped with a HEIDENHAIN TNC 426 control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 60P hi-dyn
production hours: 33410
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 60P hi-dyn

General Data

Measurements width: 6300 mm
Measurements depth: 6500 mm
Measurements height: 2700 mm
Machine weight: 10700 kg

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Longitudinal / transverse / vertical feed rate: 15000/15000/15000mm / min.
- - Rapid traverse / longitudinal / transverse / vertical feed rate: 50/50/50/50 m / min
- - Clamping system: din 69872
- - Tool changer, tool magazine, chains, 30 places
- - Type of magazine chain, tool changer flat: horizontal
- - Automatic swivelling milling head
- - Automatic change from vertical to horizontal machining
- - Main drive type: ac drive power (100% ed): 19 kw, drive power (40% ed): 28 kw
- - Prod pack. 40 bar / 23 l / min
- - Production package 40 bar / 23 i / min / 580 psi / 6 litres / min (theoretical pump output)
Qualitative Machine Benefits:
- - Theoretical pump output) 600 l / 158 gallon tank, rotating clear view-window
- - Scraper flight conveyor, coolant through spindle form centre d e ad form
- - Tilting nc rotary table © 630 mm
- - Type of measurement system: direct measurement system table surface: 0 630 mm
- - Centre diameter: 50 mm h6
- - Maximum load (table centre): 500 kg slot width: 14 mm
- - Distance between t-slots: 63 m m
- - Max. Rotational speed 4. Axis: 7 rpm
- - 4 axes (turning radius): 360 x 0. 001 degrees
- - 5 axes (turning radius):- 4 5 / + 30 x 0. 001 degrees rotational speed of axis 5: 7. 3 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
