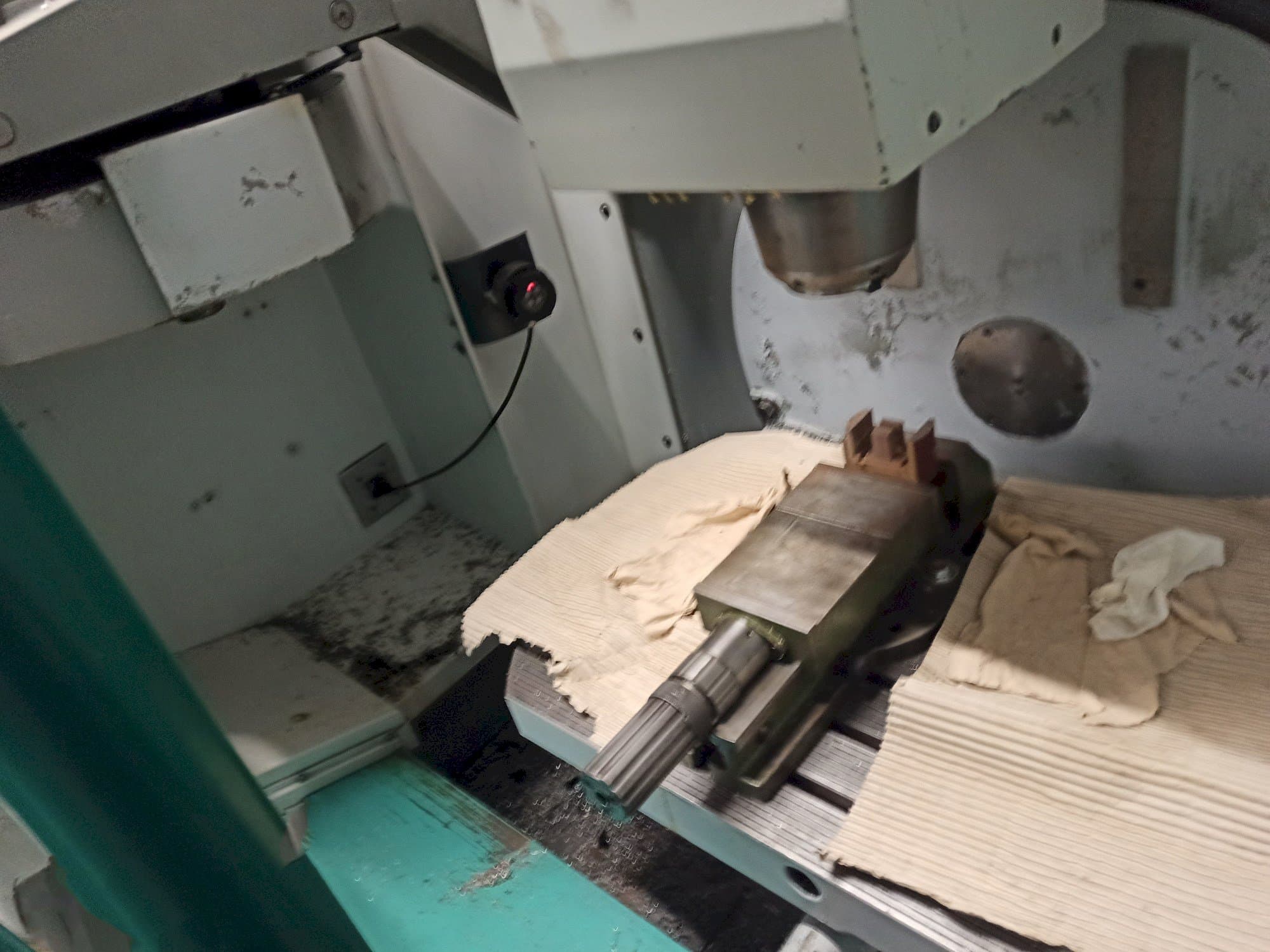

Deckel Maho DMU 50 T Vertical Machining center

Show in original language

This Deckel Maho DMU 50 T Vertical Machining center was manufactured in the year 1999. It is equipped with a HEIDENHAIN iTNC 430 control unit and has 3+2 axis. The machine has a spindle speed of 9000 rpm.

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMU 50 T
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 T

General Data

Measurements width: 4500 mm
Measurements depth: 4000 mm
Measurements height: 2500 mm
Machine weight: 3200 kg

Control Unit

Model: iTNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 9000 1/MIN
Spindle motor power: 9 / 13 kW
Number of axis: 3+2

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Table

Table load: 200 kg

Tools

Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Torque 57 / 82 nm
- - Swivelling rotary table: table diameter 700 x 500 mm swivelling man.
- - Torque 57 / 82 nm tool holder ( sk 40 ) swivelling rotary table: table diameter 700 x 500 mm swivelling man
- - B: 105° (-10°/+95) °
- - Rotatable man. 360 ° max.
- - No. Of t-slots 7
- - T-slots: distance 63 mm
- - T-slots - width 14h7 mm
- - Centre bore 30h6 mm
- - Tool changer: no. Of tool positions 16 pos.
Qualitative Machine Benefits:
- - Max. Tool length 290 mm
- - Max. Tool weight 6. 0 kg
- - Max. Total weight 50 kg
- - Total weight 50 kg
- - Feed rates: feed speed max. 10,000 mm/min
- - Rapid traverse 12 m/min
- - Feed unit 0. 01 mm
- - Total power requirement 17 kw
- - Documentation b-axis c-axis nc swivelling rotary table manual / manual tool changer 16 pos. Electr. Handwheel coolant device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
