DECKEL MAHO DMU 50 T Vertical Machining Center

Show in original language

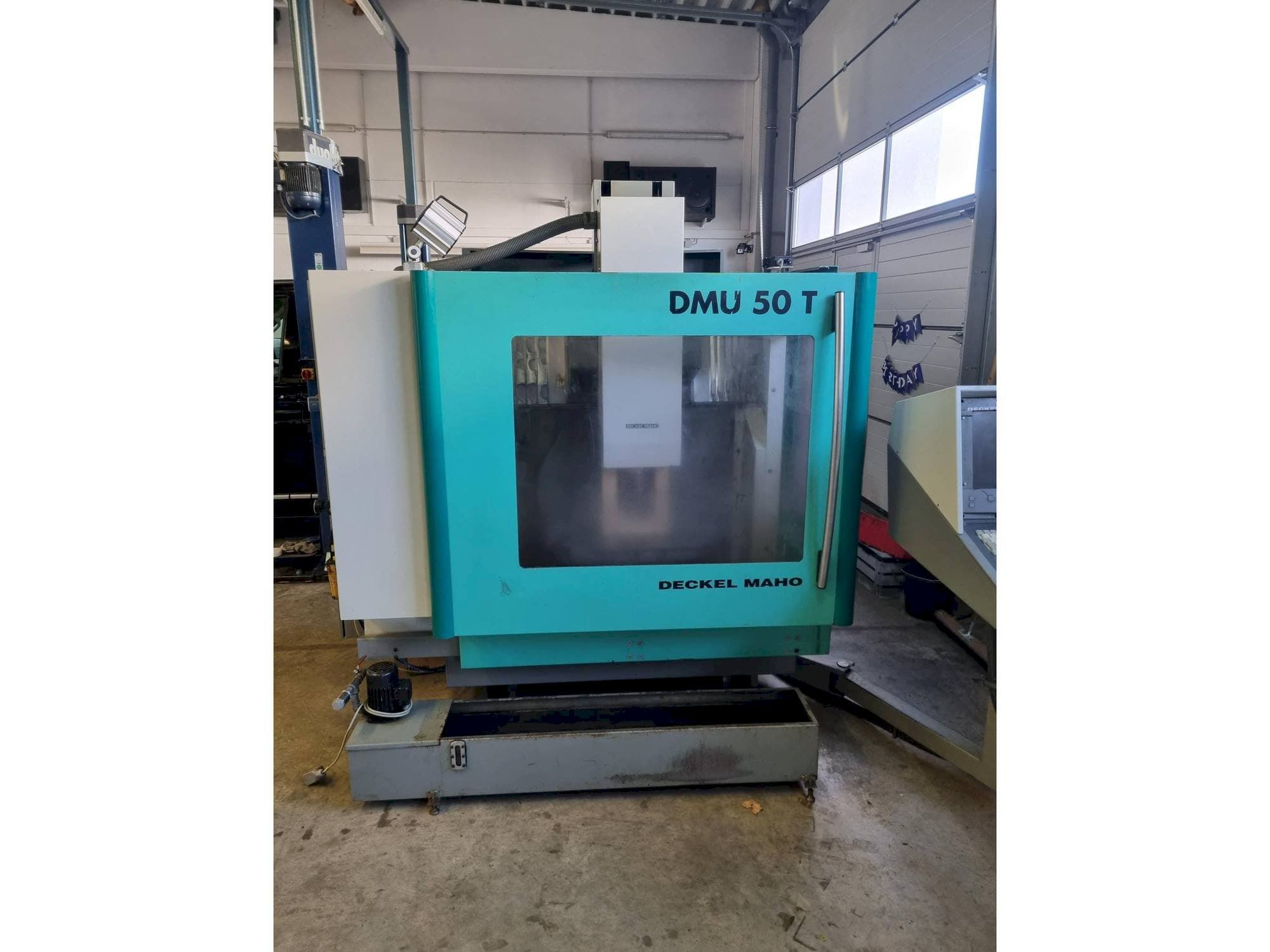

This DECKEL MAHO DMU 50 T Vertical Machining Center was built in the year 1999. It is equipped with a Deckel Maho Millplus control unit and has a 3 + 2 axis. The machine has a spindle speed of 9000 rpm.

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMU 50 T
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL MAHO DMU 50 T

General Data

Measurements width: 3000 mm
Measurements depth: 2500 mm
Measurements height: 2200 mm
Machine weight: 3500 kg

Control Unit

Model: MillPlus

Main drive

Spindle speed range: 9000 1/MIN
Number of axis: 3 + 2

Movement

X-AXIS Movement: 500 mm
X-AXIS Working Feed: 10.000 mm/min
X-AXIS Rapid traverse: 12m/min
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 10.000 mm/min
Y-AXIS Rapid traverse: 12m/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 10.000 mm/min
Z-AXIS Rapid traverse: 12m/min

Table

Outer length: 700 mm
Outer width: 500 mm
Number of tslots: 7
Distance between: 63 mm
Table load: 200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changer: automatic with 16 places

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
