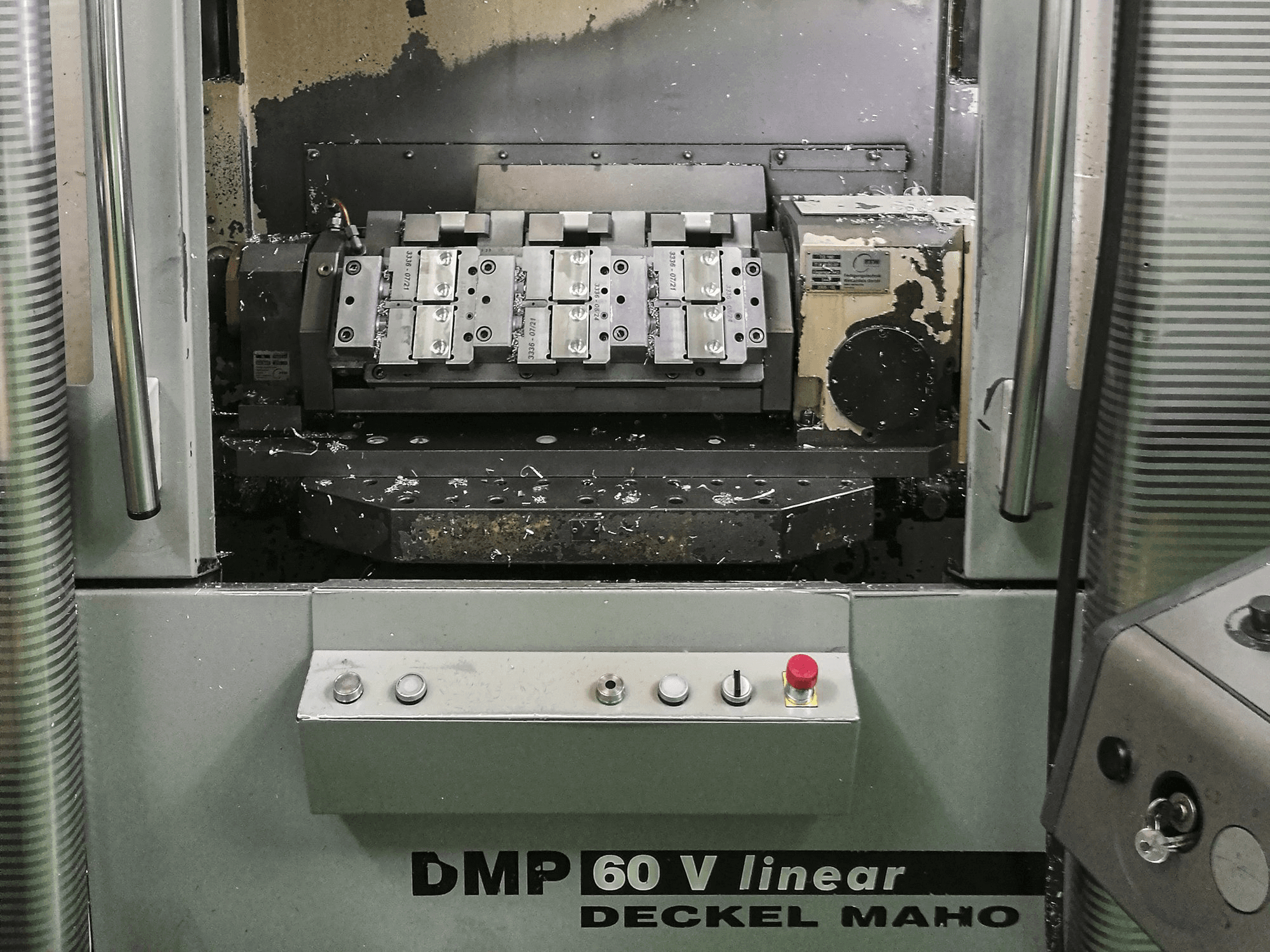

DECKEL MAHO DMP 60 V linear Vertical Machining Center

Show in original language

This DECKEL MAHO DMP 60 V linear Vertical Machining Center was manufactured in Germany in 2004 and has a total production time of 77520 hours of which 48920 are spindle hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this machine stands out due to double pallet system with 4th axis and 2 tables. With a max spindle speed of 18000 rpm, this highly productive machine has mainly worked with steel during the past and comes with an oil mist extraction unit and a chip conveyer included in the delivery.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMP 60 V linear
production hours: 77520
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMP 60 V linear

General Data

Measurements width: 3850 mm
Measurements depth: 1962 mm
Measurements height: 2720 mm
Machine weight: 7100 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: Czech
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/min

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 1050 mm
Outer width: 660 mm

Turret

Tool taper: HKS 63

Tools

Slots in storage: 25

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Chip conveyer
- Extraction Unit Filtermist FX4000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
