DECKEL MAHO - DMC 65VSK-MIL-DEC-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

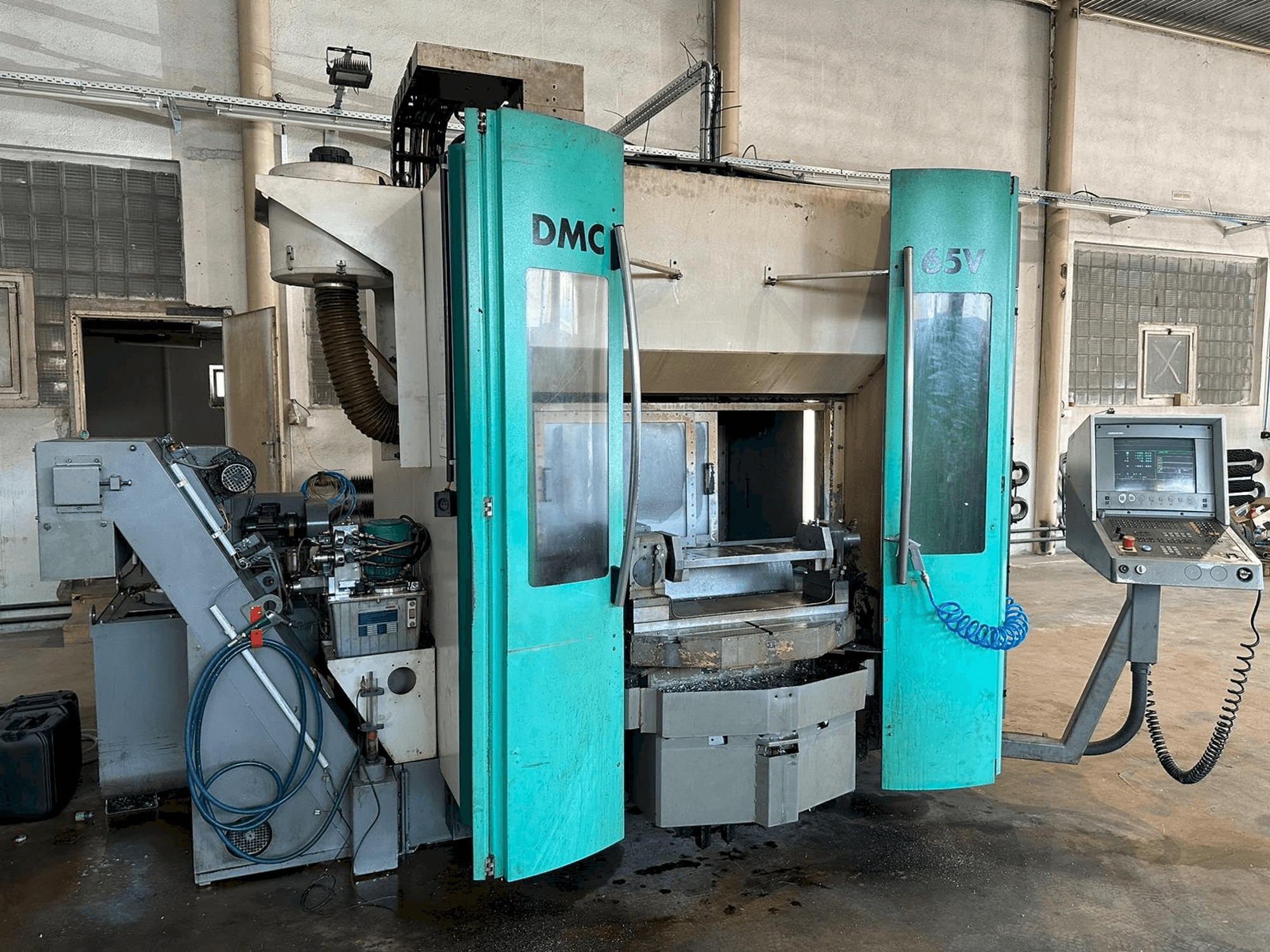

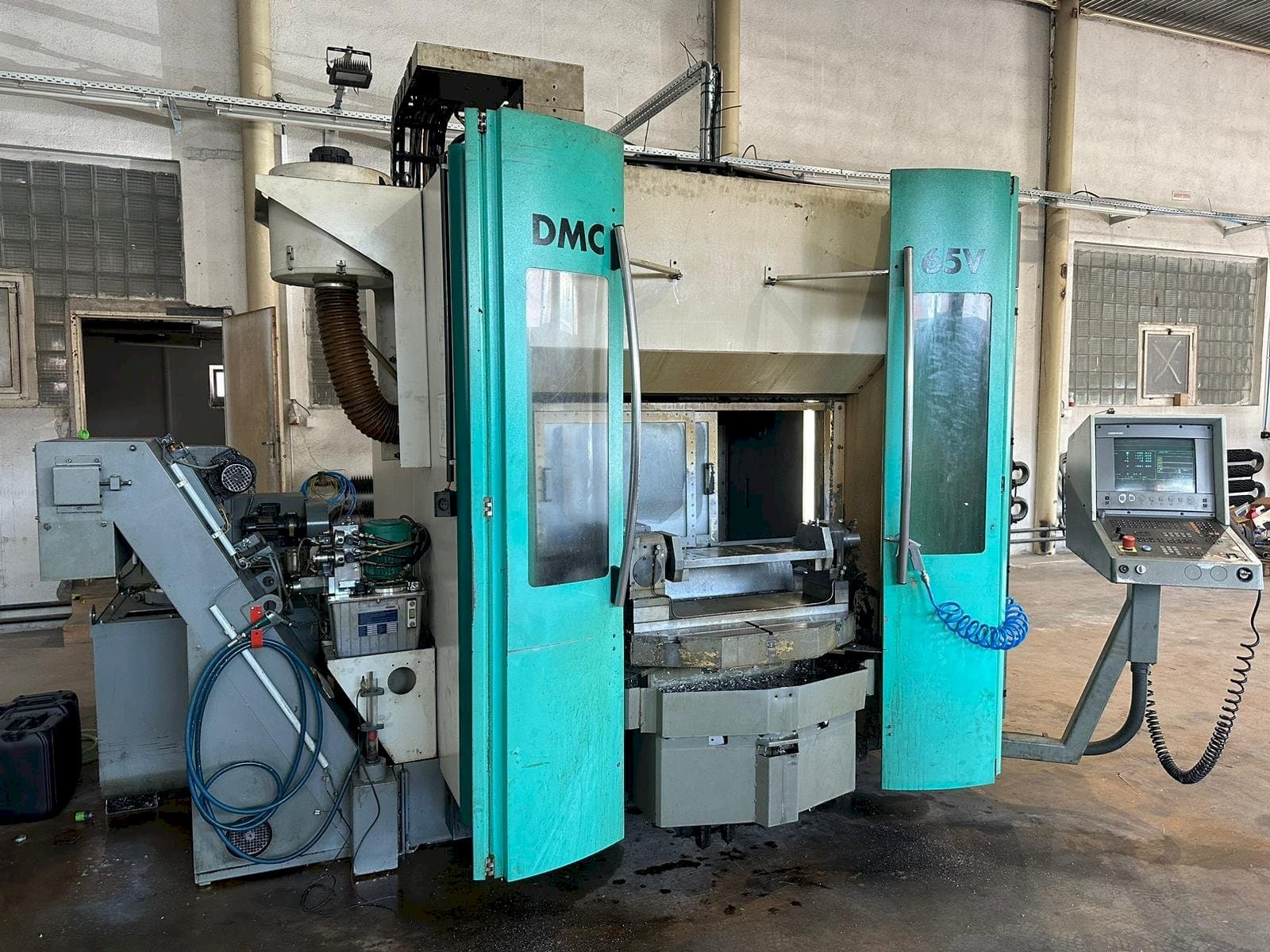

Deckel Maho DMC 65V Vertical Machining center

Show in original language

This Deckel Maho DMC 65V Vertical Machining center was manufactured in the year 1999 in Germany and has 71146 production hours. It is equipped with a HEIDENHAIN control unit and has 4 axis. The machine has a spindle speed of 18000 rpm, is in good condition and well maintained.

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMC 65V
production hours: 71146
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 65V

General Data

Measurements width: 3300 mm
Measurements depth: 2300 mm
Measurements height: 2700 mm
Machine weight: 9500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 850 mm
Outer width: 540 mm

Media

Power consumption: 60 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets
- - Feedrate 16. 5 m/min.
- - Rapid feedrate x/y/z 60 m/min.
- - Spindle motor power (40/100%) 15/10 kw
Qualitative Machine Benefits:
- - Very good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
