➤ Used DECKEL MAHO DMC 63V | Vertical Machining Center - IT-MIL-DEC-1999-00001

Show in original language

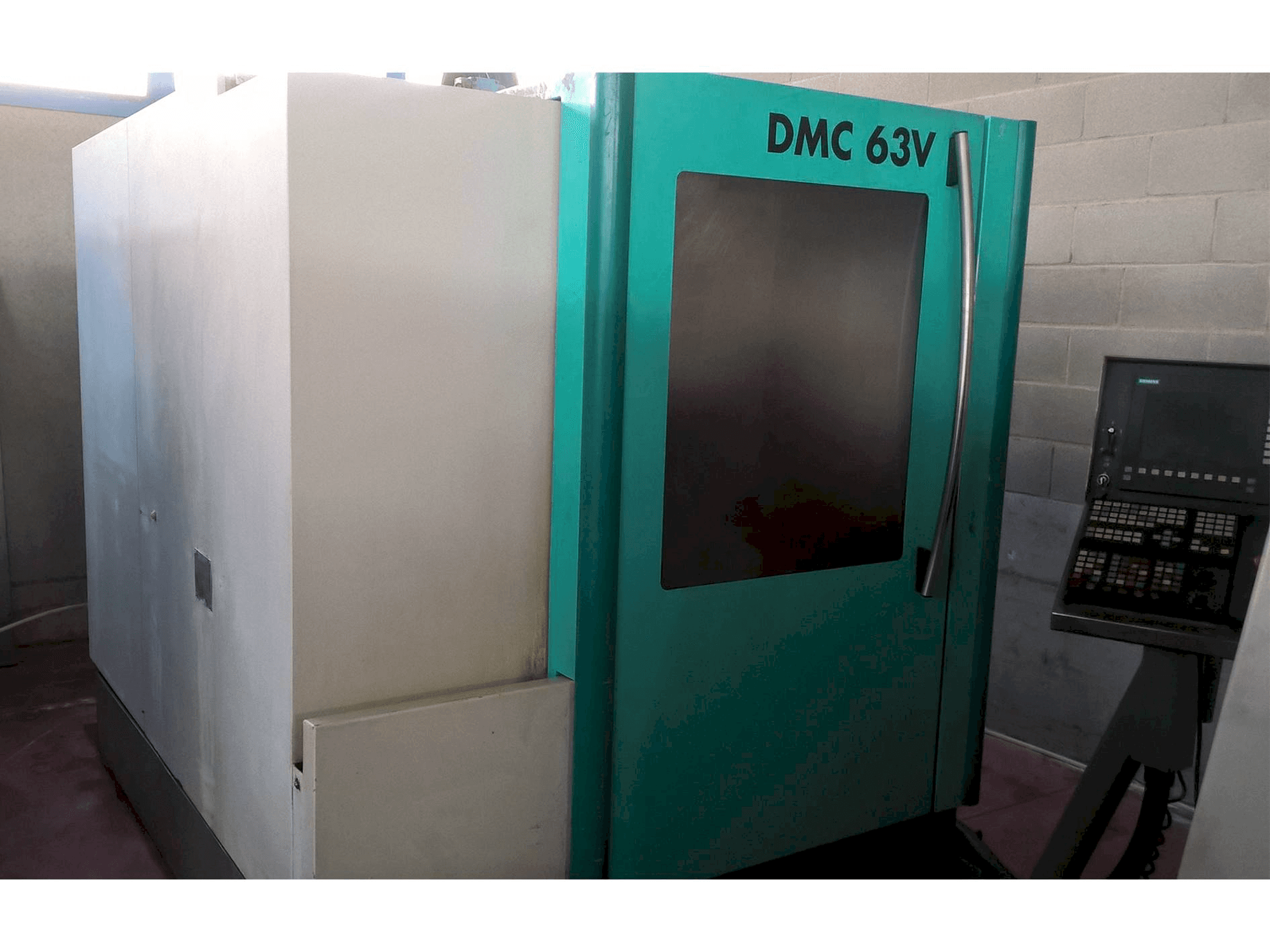

This DECKEL MAHO DMC 63V Vertical Machining Center was manufactured in Germany in 1999. This 3 axis machine can perform with a spindle speed range up to 8000 rpm and counts with a Siemens 810D control unit.

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMC 63V
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 63V

General Data

Measurements width: 2500 mm
Measurements depth: 2370 mm
Measurements height: 2760 mm
Machine weight: 3850 kg

Control Unit

Model: 810D
Brand: SIEMENS

Main drive

Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 13/9 kW
Number of axis: 3

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 30 mt/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 30 mt/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 30 mt/min

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 790 mm
Outer width: 560 mm

Tools

Number of index: 24
Max weight: 6 kg
Max tool diameter: 80/130 mm
Max tool length: 300 mm
Type of tool holder: DIN69871 ISO 40 DIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque 83/57 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
