➤ Used DECKEL MAHO DMC 63V | Vertical Machining Center - ES-MIL-DEC-2000-00002

Show in original language

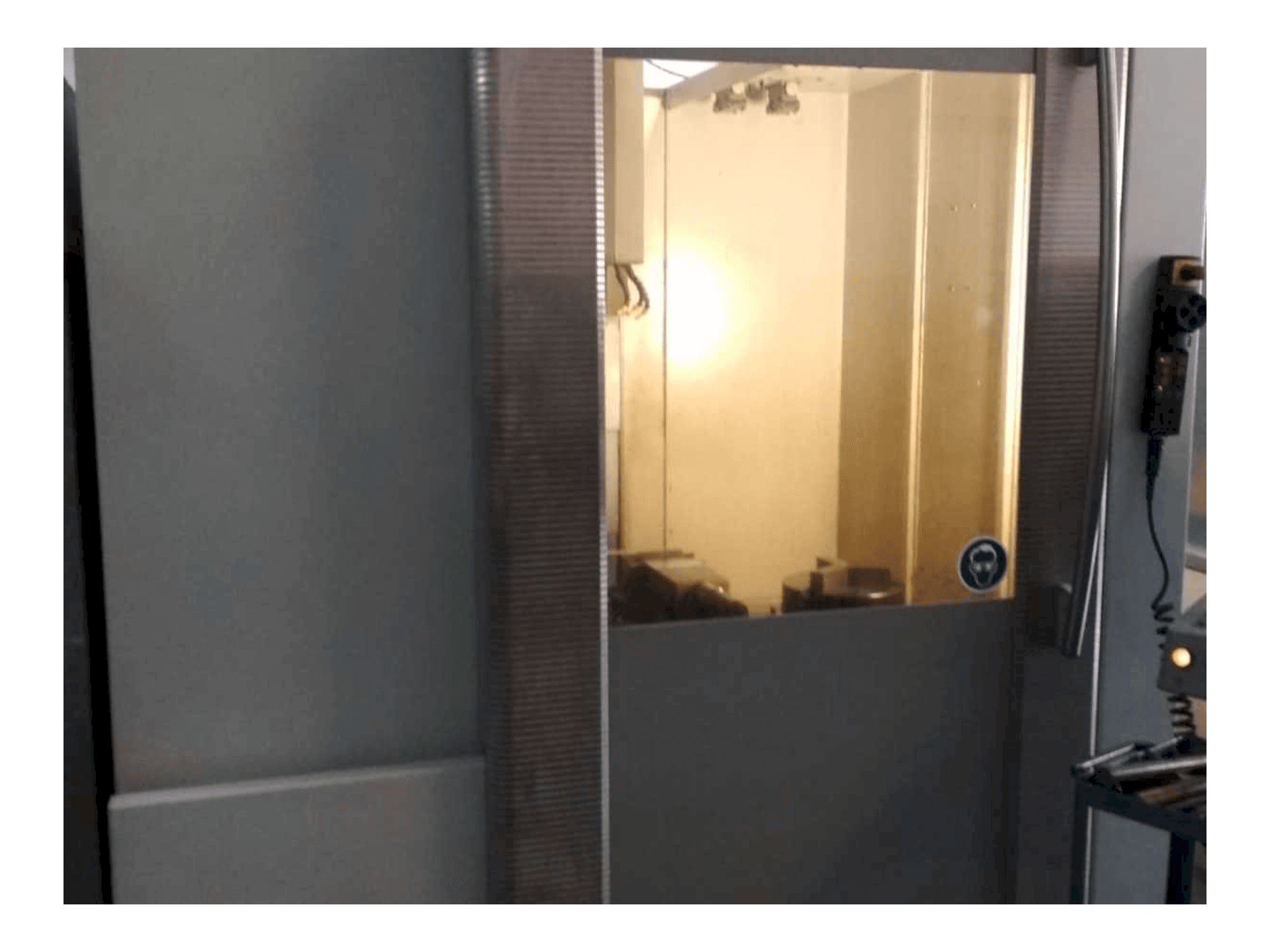

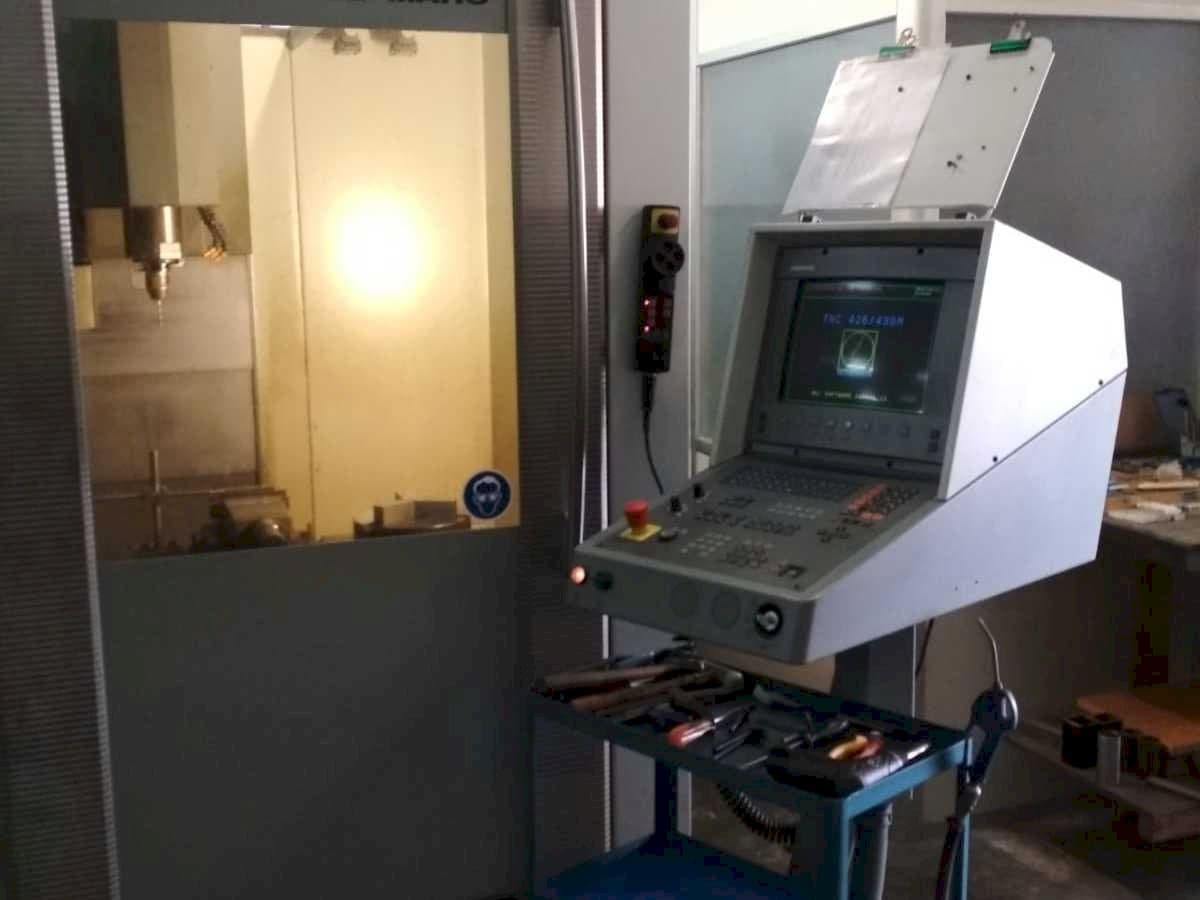

This DECKEL MAHO DMC 63V Vertical Machining Center was produced in Germany in the year 2000. It has a production history of only 4489 working hours. It is equipped with a Heidenhain TNC 426/430 control unit. This machine presents good conditions, and includes some tools as additional equipment.

Overview

brand: DECKEL MAHO
year: 2000
MODEL: DMC 63V
production hours: 4489
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 63V

General Data

Measurements width: 3100 mm
Measurements depth: 2100 mm
Measurements height: 2400 mm
Machine weight: 4500 kg

Control Unit

Model: TNC 426/430
CNC main language: Spanish
Brand: HEIDENHAIN

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 800 mm
Outer width: 500 mm
Number of tslots: 4
Distance between: 100 mm

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 30 kVA

Additional equipment

- Tools

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Little working hours
- - Perfect status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
