➤ Used DECKEL MAHO DMC 635V | Vertical Machining Center

Show in original language

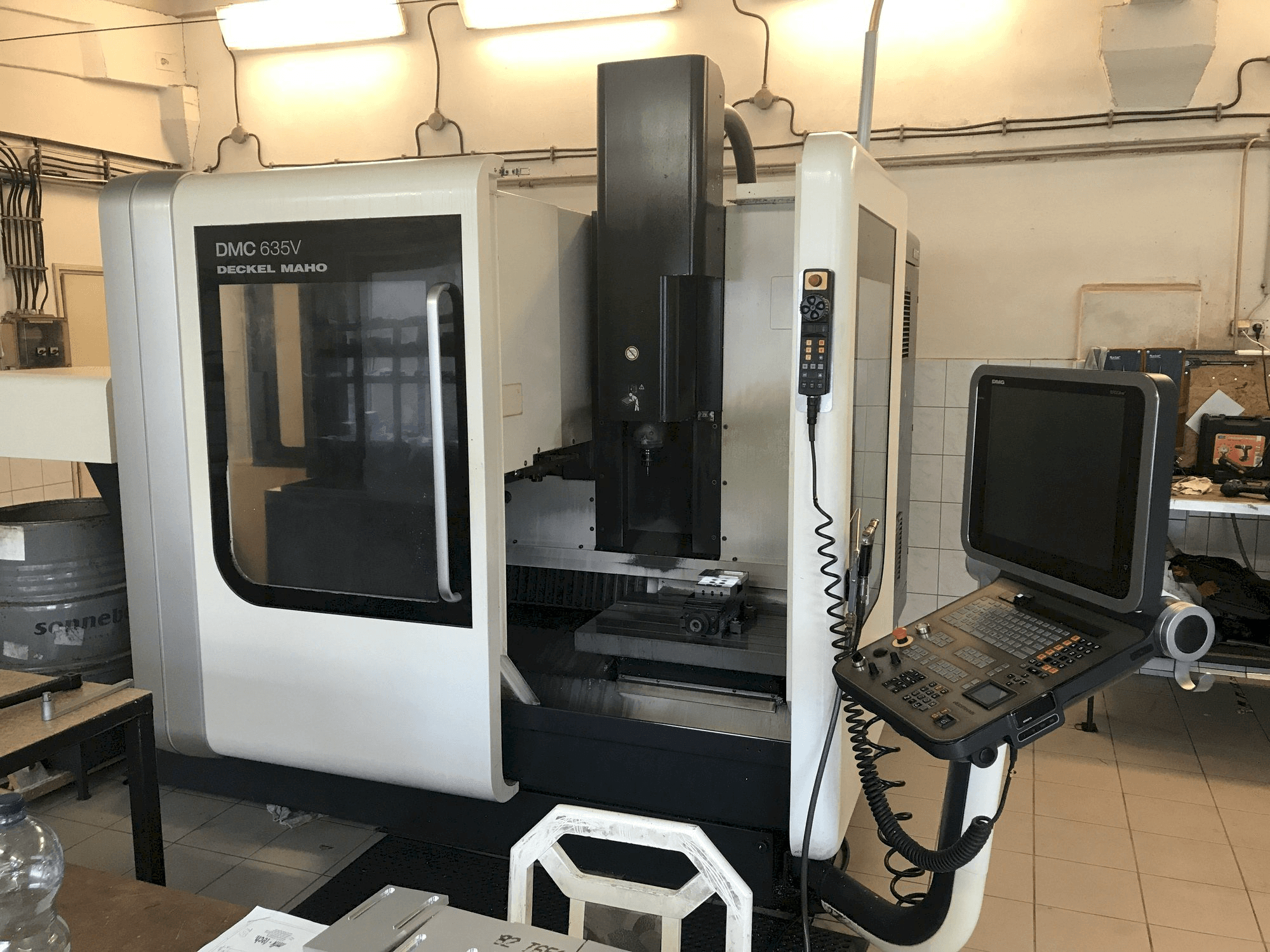

This DECKEL MAHO DMC 635V Vertical Machining Center was made in the year 2012 in Germany. It has been working for only 7734 hours. It is operated through a DMG Heidenhain iTNC 530 control unit. This machine can work with a spindle speed range up to 18000 rpm. It includes an internal cooling and a chip conveyor.

Overview

brand: DECKEL MAHO
year: 2012
MODEL: DMC 635V
production hours: 7734
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 635V

General Data

Measurements width: 3640 mm
Measurements depth: 3480 mm
Measurements height: 2665 mm
Machine weight: 4000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 635 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 460 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 790 mm
Outer width: 560 mm

Tools

Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 80mm (130mm); at 18000rpm max 200mm length, max 50mm diameter
Max tool length: 300 mm
Type of tool holder: SK40

Media

Main electronic connection: 400 V
Power consumption: 23 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Aluminium
End product: Custom parts

Machine Benefits

Qualitative Machine Benefits:
- - Very nice condition
- - Little working hrs
- - Only worked in 1 shift
- - Only custom parts were made
- - No series production were performed with the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
