➤ Used DECKEL MAHO DMC 635V Vertical Machining Center

Show in original language

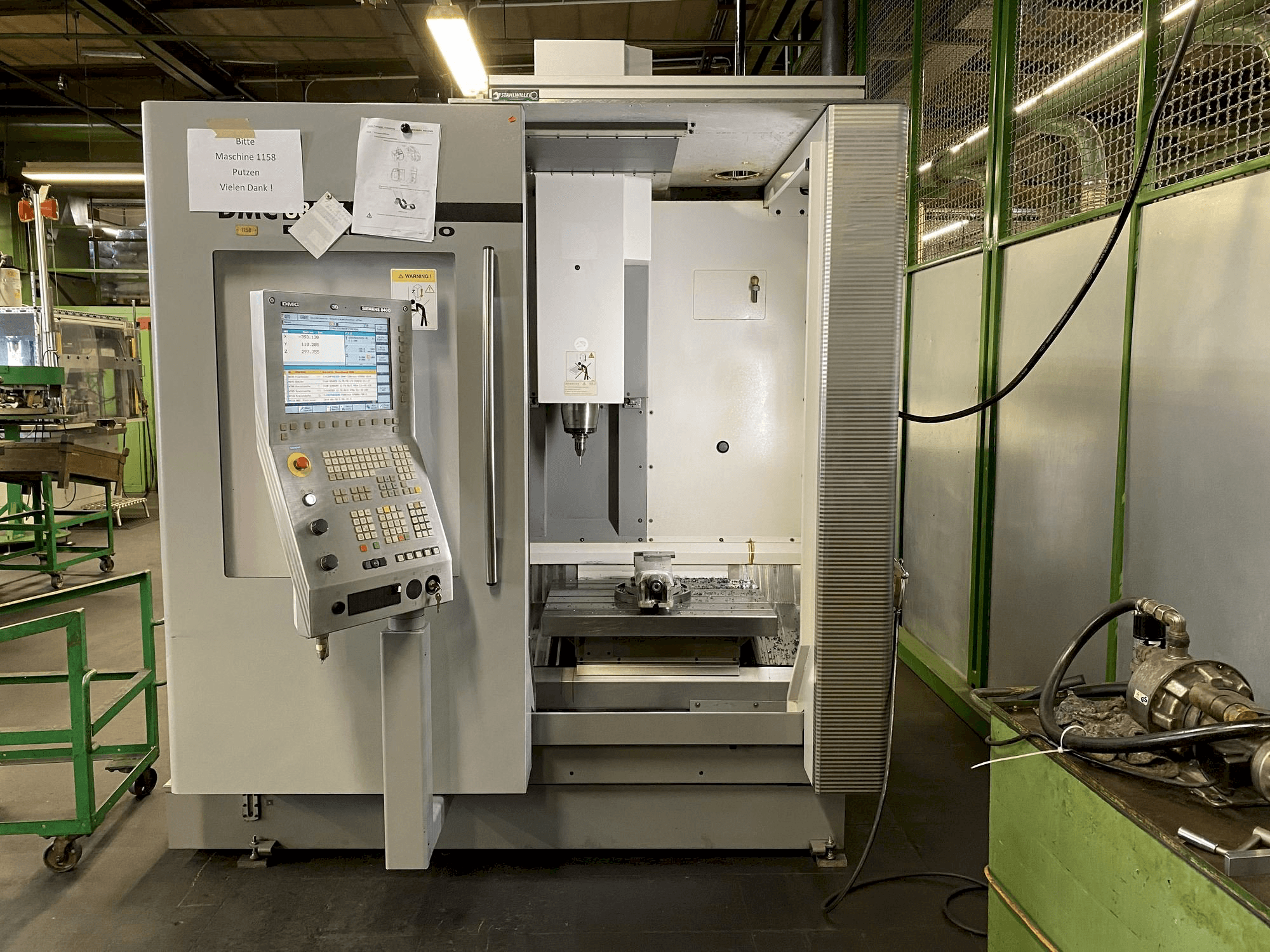

This DECKEL MAHO DMC 635V Vertical Machining Center was built in Germany in 2008. It counts with 18309 operating hours, from which 7210 are spindle hours. This machine can perform with a spindle speed range of 20-10000 rpm.

Overview

brand: DECKEL MAHO
year: 2008
MODEL: DMC 635V
production hours: 18309
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL MAHO DMC 635V

General Data

Measurements width: 2200mm
Measurements depth: 2900mm
Measurements height: 2600 mm
Machine weight: 4900kg

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 635 mm
X-AXIS Working Feed: 20000 mm/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Working Feed: 20000 mm/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Working Feed: 20000 mm/min
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 790 mm
Outer width: 560 mm
Height adjustment: 720 mm
Table load: 600 kg

Tools

Type of tool holder: SK40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
