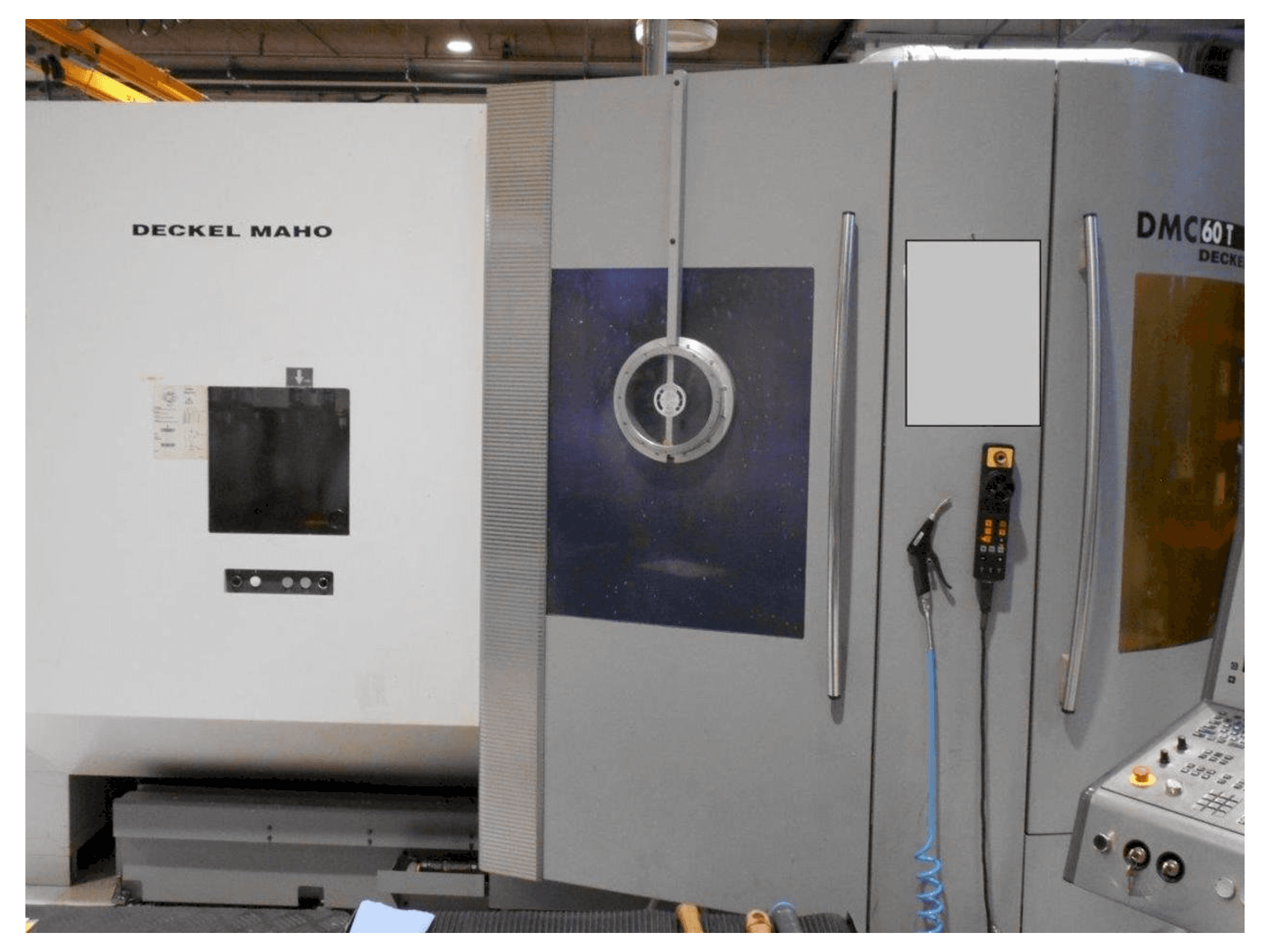

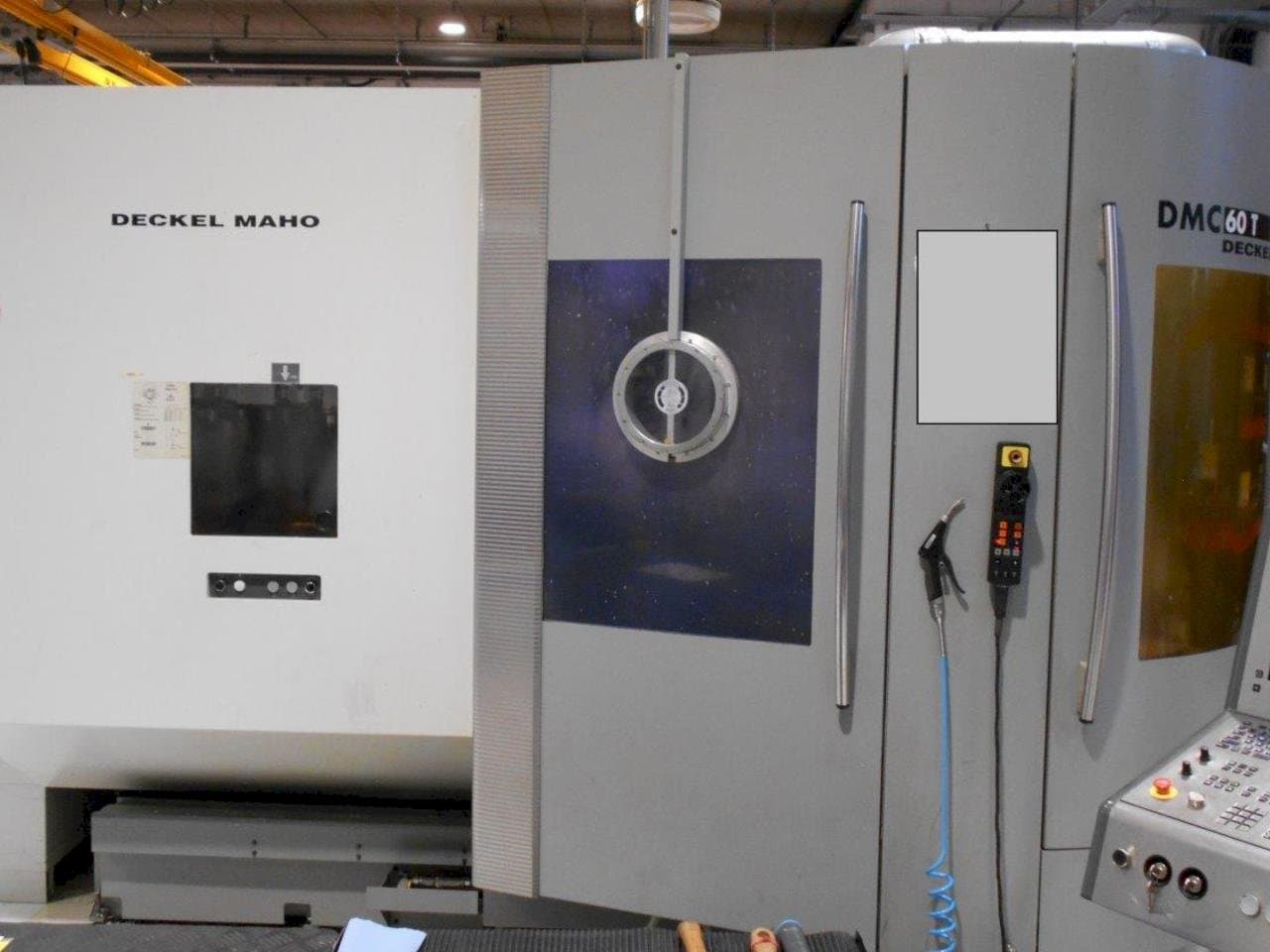

Deckel Maho DMC 60T Horizontal Machining center

Show in original language

This Deckel Maho DMC 60T Horizontal Machining center was manufactured in the year 2008 in Germany and has 68278 hours, of which 25847 are spindle hours. It is equipped with a Heidenhain TNC 530 control unit and has 5 axis. The machine has a spindle speed of 24000 rpm, is in good condition, and can be inspected by an arrangement under power

Overview

brand: DECKEL MAHO
year: 2008
MODEL: DMC 60T
production hours: 25850
application type: Milling
Location: Austria
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 60T

Control Unit

Model: TNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 24000 1/MIN
Tool taper: HSK 63
Number of axis: 5

Movement

X-AXIS Movement: 780 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 560 mm
B-AXIS Movement: 120 +30° MM

Table

Outer length: 630 mm
Outer width: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool places 120pcs
- - Wrapping piece changer with 2 pallets
- - Laser for tool measurement (conditionally ready for use pneumatic line in the cable drag leaking )
- - System has two pressure stages, each with its own pump
- - First stage 40 bar
- - Second stage 80 bar
- - Renishaw ir 3d probe
- - Chip conveyor
- - Washing gun
- - Heidenhain handwheel
Qualitative Machine Benefits:
- - Power components in control cabinet: siemens
- - The machine is functional and in production, it can be inspected by arrangement under under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
