DECKEL MAHO DMC 60H

Show in original language

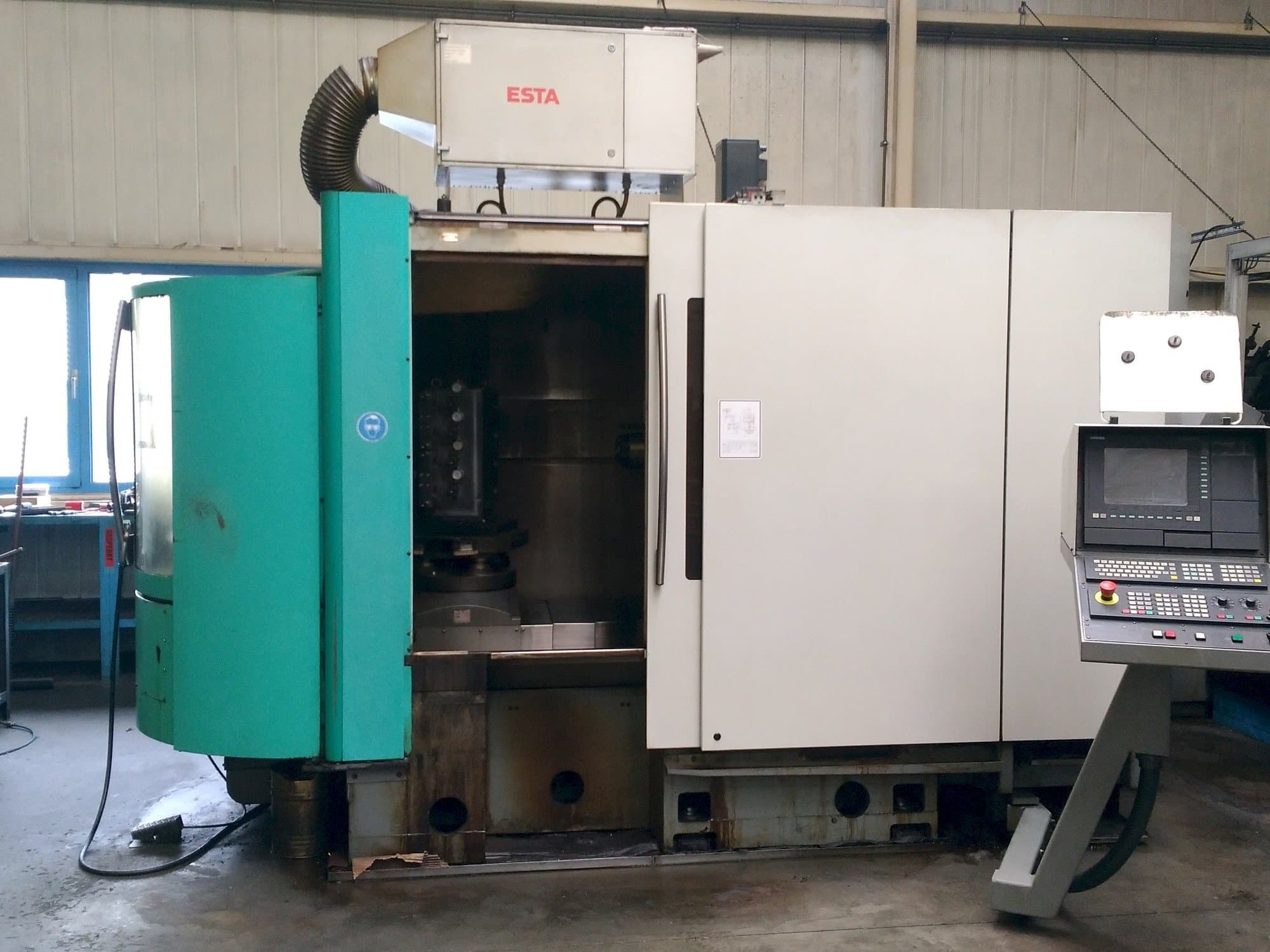

This DECKEL MAHO DMC 60H Universal Machining Center was built in Germany in the year 1999. It has a total production time of 48364 hours. This 4 axis machine is operated through a SIEMENS SINUMERIK 840D Control Unit. It can work with a spindle speed range 0 - 15000 rpm. This machine includes an oil mist separator and a scraper belt conveyor 350 K-1/100 (Knoll)

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMC 60H
production hours: 48364
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 60H

General Data

Measurements width: 4800 mm
Measurements depth: 5000 mm
Measurements height: 2800 mm
Machine weight: 11400 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 0 - 15000 1/MIN
Spindle motor power: 13 / 20 KW
Number of axis: 4

Movement

X-AXIS Movement: 600 MM
X-AXIS Rapid traverse: 1 - 40000 MM/MIN
Y-AXIS Movement: 560 MM
Y-AXIS Rapid traverse: 1 - 40000 MM/MIN
Z-AXIS Movement: 560 MM
Z-AXIS Rapid traverse: 1 - 40000 MM/MIN

Tools

Max weight: 10 (200) KG
Max tool diameter: 90 (MAX. 160) MM
Max tool length: 350 MM
Type of tool holder: SK 40

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 60 KVA

Additional equipment

- OIL MIST SEPARATOR
- SCRAPER BELT CONVEYOR 350 K-1/100 (KNOLL)
- COOLANT SYSTEM (KNOLL)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque (s1/s6): 124/191 nm
- - Round table max. Speed 25. 7 rpm
- - Pallet clamping force: 80000 n
- - 2 + 1 pallets
- - Pallets size: 400 x 500 mm
- - Permissible load per pallet: 600 kg
- - B-axis travel: 360º
- - Tool pull-in force: 12000 n

Extra information

- THE MACHINE WAS STILL WORKING PERFECTLY UNTIL IT WAS SHUT DOWN A YEAR AGO.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
