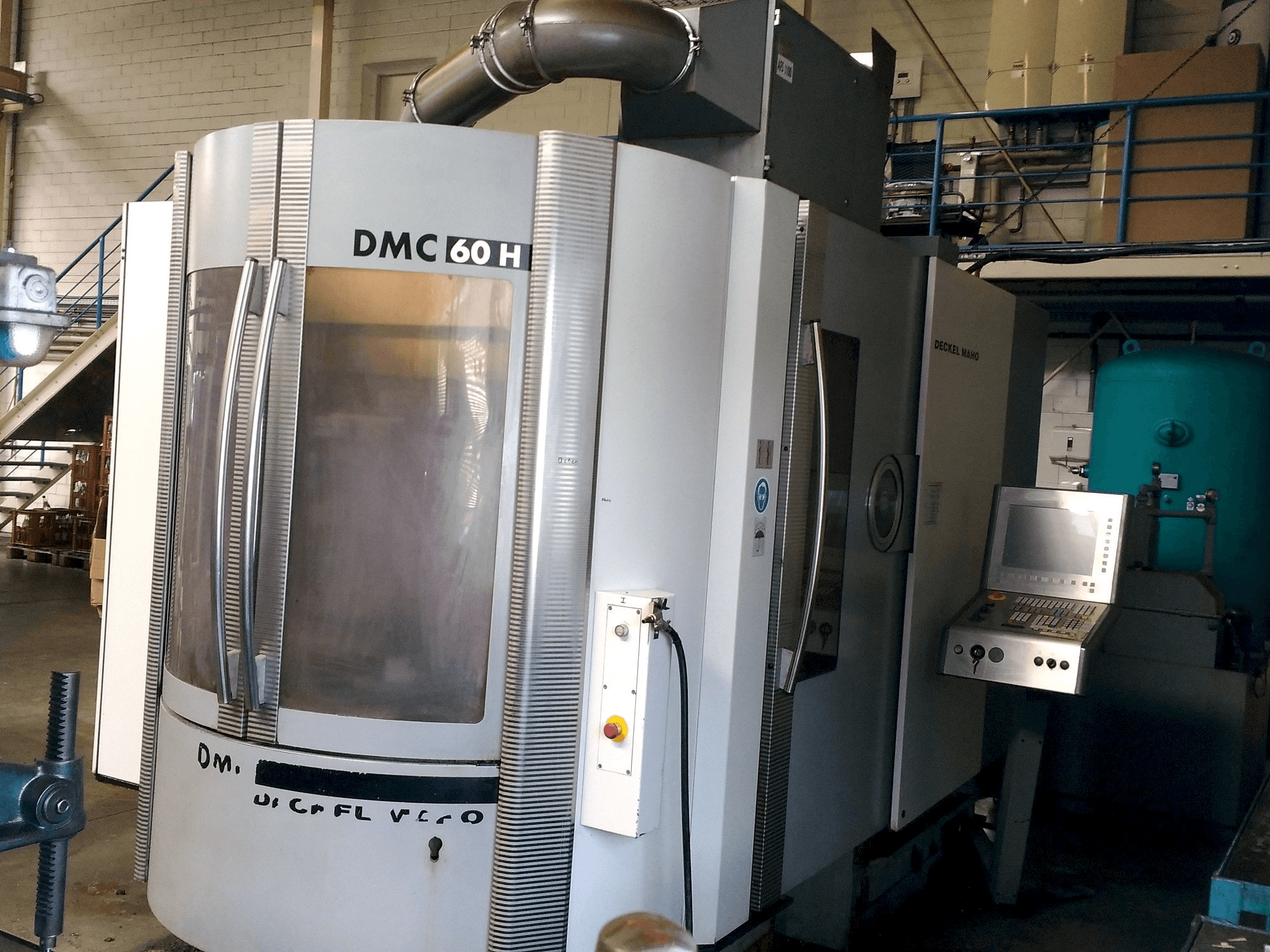

This DECKEL MAHO DMC 60H hi-dyn Universal Machining Center was manufactured in Germany in the year 2004. It has a record of 58156 hours, of which 30911 are operating hours. This 4 axis machine is equipped with a SIEMENS SINUMERIK 840D powerline control Unit. It performs with a spindle speed range 0 - 15000 rpm. This machine includes several spare parts.
Overview
- brand: DECKEL MAHO
- year: 2004
- MODEL: DMC 60H hi-dyn
- production hours: 58156
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMC 60H hi-dyn
General Data
- Measurements width: 4800 mm
- Measurements depth: 5000 mm
- Measurements height: 2900 mm
- Machine weight: 11400 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D powerline
Main drive
- Number of spindles: 1
- Spindle speed range: 0 - 15000 1/MIN
- Spindle motor power: 13/20 kw
- Number of axis: 4
Movement
- X-AXIS Movement: 600 mm
- X-AXIS Feed Force: 9600 n
- X-AXIS Rapid traverse: 1-60000 mm/min
- Y-AXIS Movement: 560 mm
- Y-AXIS Feed Force: 8000 n
- Y-AXIS Rapid traverse: 1-60000 mm/min
- Z-AXIS Movement: 560 mm
- Z-AXIS Feed Force: 9600 n
- Z-AXIS Rapid traverse: 1-60000 mm/min
Tools
- Max weight: 10 (200) kg
- Max tool diameter: 90 (160 max) mm
- Max tool length: 350 mm
- Type of tool holder: SK 40
Media
- Main electronic connection: 400 V 50 HZ
- Power consumption: 80 KVA
Additional equipment
- - OIL MIST SEPARATOR
- - scraper belt conveyor 350 K-1/100 (Knoll)
- - HYDROCYCLONE PLANT F 60-1 (KNOLL)
Additional Information
- Technical Machine Benefits:
- - B-axis travel: 360 º
- - Round table max. Speed 25. 7 rpm
- - Pallet clamping force: 80000 n
- - 2 + 1 pallets
- - Pallets size: 400 x 500 mm
- - Permissible load per pallet: 600 kg
- - THE MACHINE WORKED PERFECTLY UNTIL IT WAS DECOMMISSIONED 6 MONTHS AGO
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
