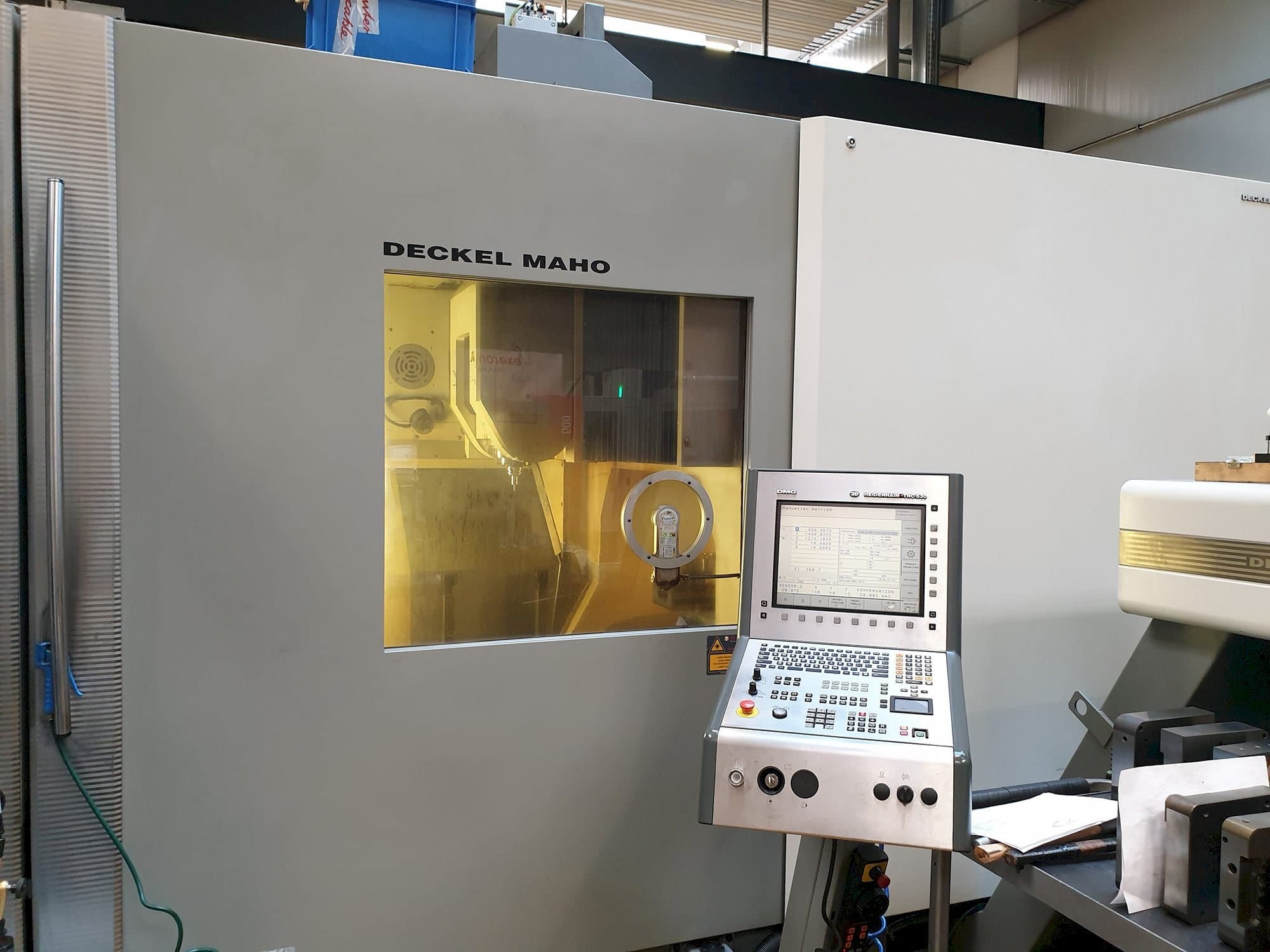

DECKEL MAHO DMC 105V Linear Vertical Machining Center

Show in original language

This DECKEL MAHO DMC 105V Linear Vertical Machining Center was manufactured in 2007. It has approximately 30000 production hours, from which 8000 hours are spindle hours. It is operated with a Heidenhain ITNC 530 control unit. This machine can work with a spindle speed up to 18000 rpm. It includes an internal cooling. This machine has geometric verification in the year 2019.

Overview

brand: DECKEL MAHO
year: 2007
MODEL: DMC 105V Linear
production hours: 30000
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 105V Linear

General Data

Measurements width: 4100 mm
Measurements depth: 2900 mm
Measurements height: 3400 mm
Machine weight: 12500 kg

Control Unit

Model: ITNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 800 mm

Tools

Type of tool holder: HSK 63

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 simultaneous axes
- - Axis stroke z 600 mm
- - Diameter of rotary table 950 mm
- - Couplings for hydraulic equipment
- - Heidenhain workpiece probe
- - Laser blum for tool setting
- - High pressure through the spindle
Qualitative Machine Benefits:
- - Machine with geometric verification year 2019
- - The spindle was changed recently and it only has 8000 hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
