DECKEL FP4AT Milling Machine

Show in original language

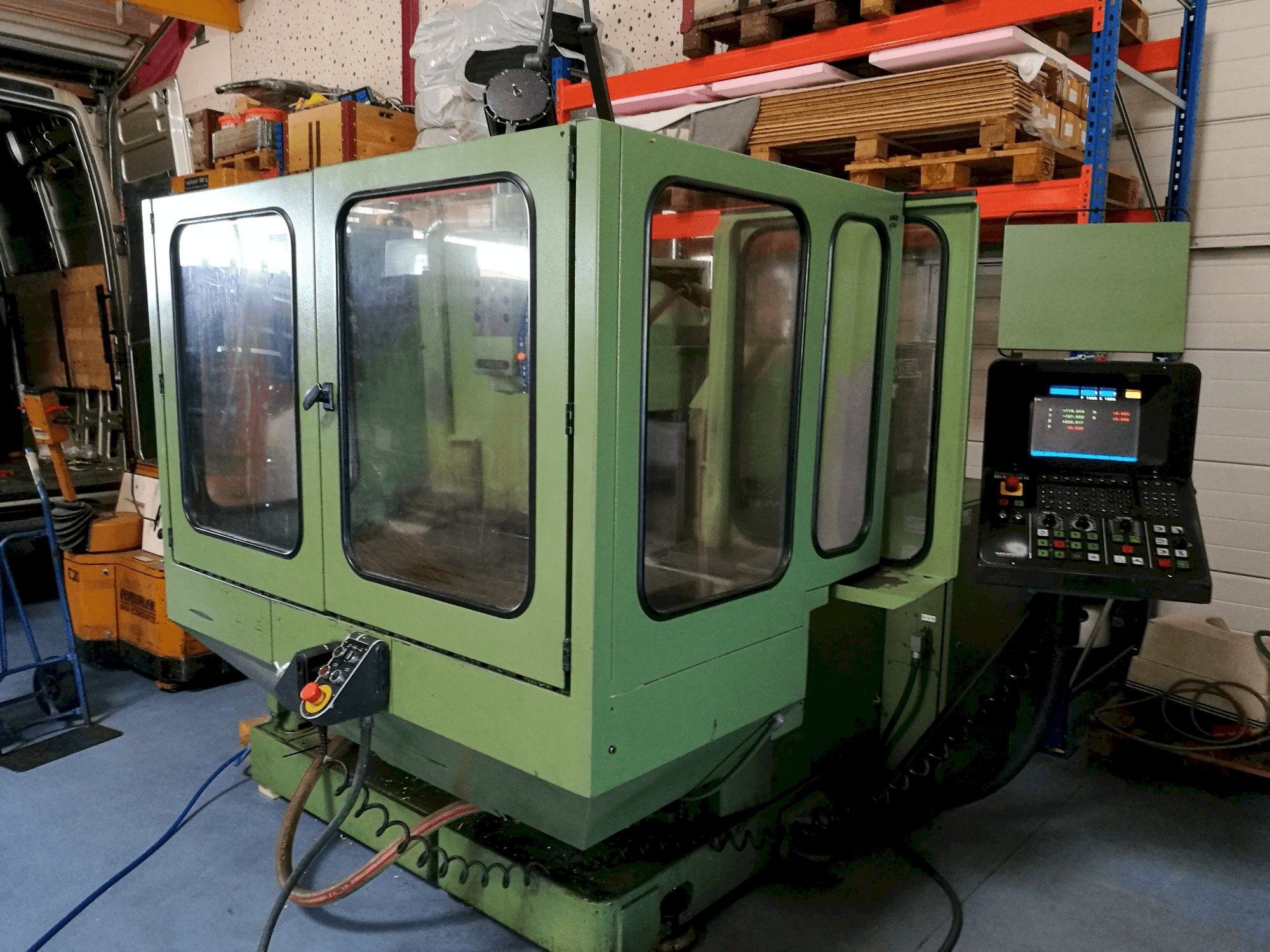

This DECKEL FP4AT Milling Machine was produced in 1989 in Germany and has been operative for 22967 hours. Operated through a Deckel Dialog 11 Control unit, this versatile machine can work with a spindle speed up to 40-4000 rpm. It presents excellent conditions, as it has been treated and cleaned properly.

Overview

brand: DECKEL
year: 1989
MODEL: FP4AT
production hours: 22967
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold

Technical Information - DECKEL FP4AT

General Data

Measurements width: 4400 mm
Measurements depth: 4300 mm
Measurements height: 1800 mm
Machine weight: 3150 kg

Control Unit

Model: Dialog 11
CNC main language: German
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 40-4000 rpm 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm

Tools

Slots in storage: 20
Max weight: 6 kg
Max tool diameter: 80/100 mm
Max tool length: 300 mm
Type of tool holder: SK40 Din 69871

Media

Main electronic connection: 380 V
Power consumption: 17 kVA
Internal cooling: Yes

Additional equipment

- 35 toolholders
- clamping devices

Additional Information

Machine history

Material type: Steel, plastics, copper, aluminum
End product: Mould parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
