DECKEL FP4A Vertical Machining Center

Show in original language

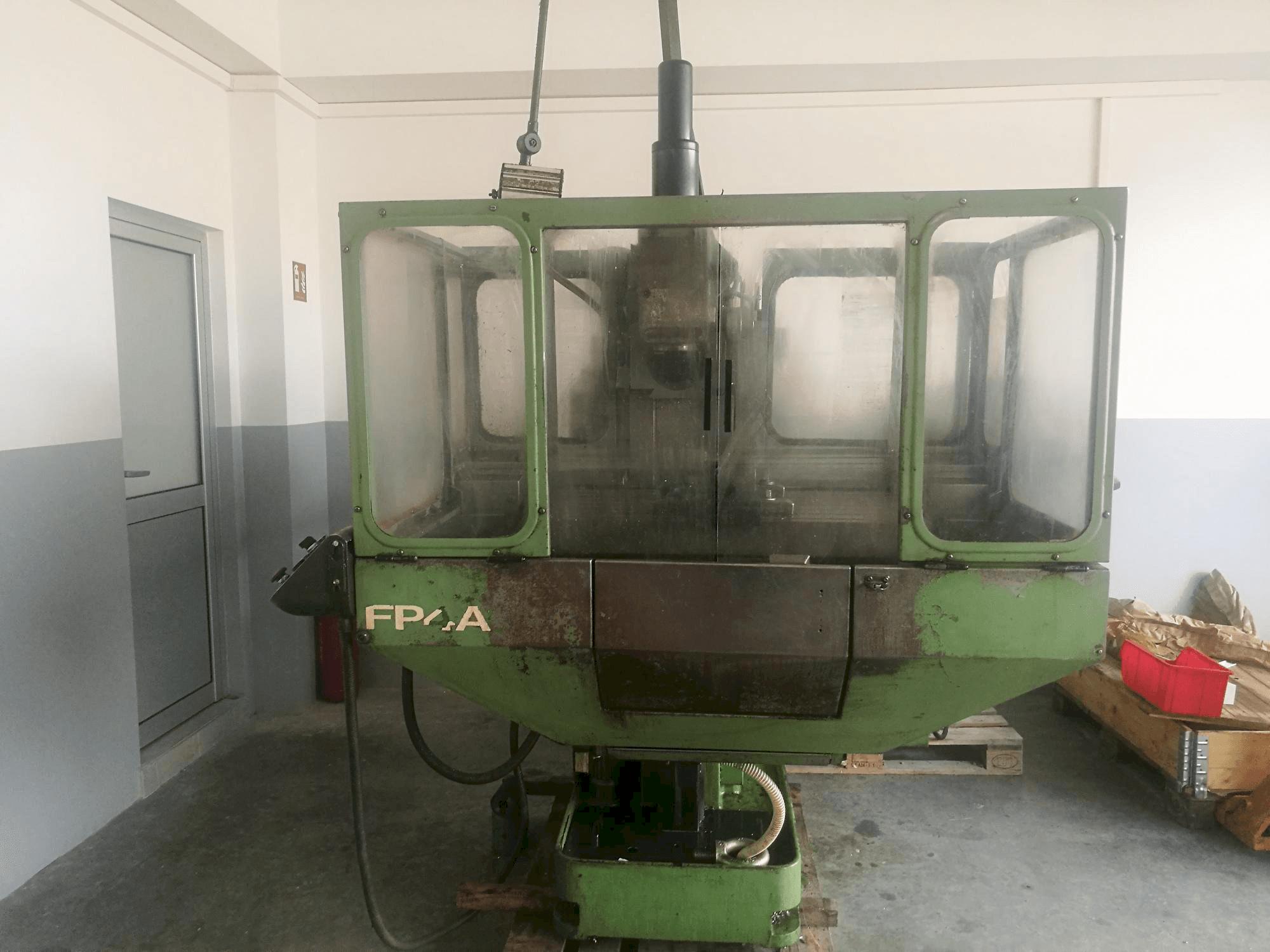

This DECKEL FP4A Vertical Machining Center was built in 1986 in Germany and has been working for 5000 hours. Equipped with a DECKEL Contour 2 Control unit, this machine can work with a spindle speed up to 3150 rpm. It presents perfect conditions, as it has been regularly maintained by FPS Company.

Overview

brand: DECKEL
year: 1986
MODEL: FP4A
production hours: 5000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL FP4A

General Data

Measurements width: 2000 mm
Measurements depth: 2700 mm
Measurements height: 2300 mm
Machine weight: 1850 kg

Control Unit

Model: Contour 2
CNC main language: German

Main drive

Number of spindles: 1
Spindle speed range: 3150 1/MIN

Movement

X-AXIS Movement: 485 mm
Y-AXIS Movement: 385 mm
Z-AXIS Movement: 380 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 800 mm
Outer width: 460 mm
Number of tslots: 7
Distance between: 63 mm

Tools

Type of tool holder: SK40

Media

Main electronic connection: 380 V
Power consumption: 12 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Can work manual and cnc
- - Handwheel
Qualitative Machine Benefits:
- - German service by fps company
- - Repaired spindle in 2017
- - New machine monitor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
