➤ Used DECKEL FP4-60T For Sale | gindumac.com

Show in original language

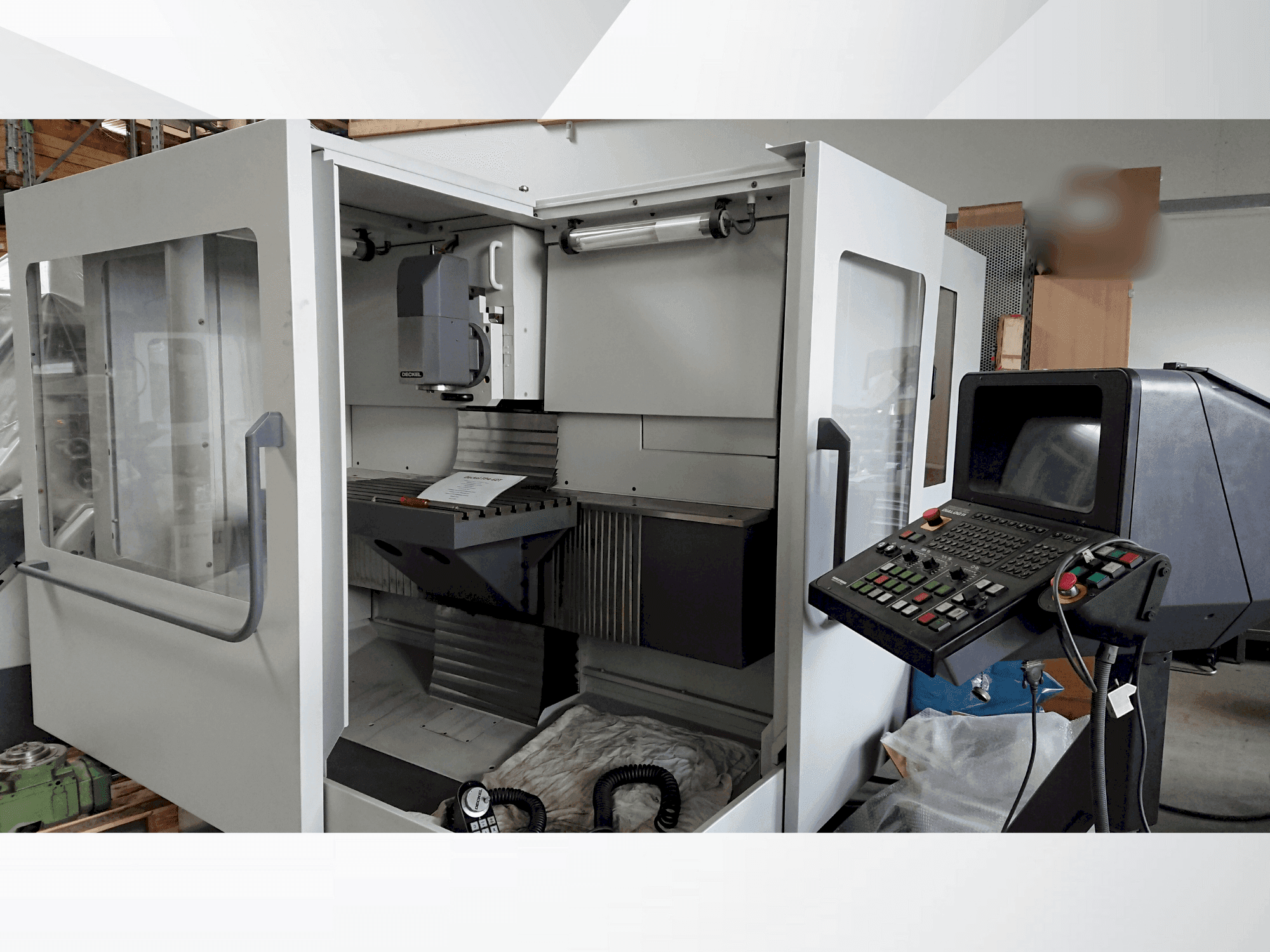

This 3-axis DECKEL FP4-60T vertical machining center was manufactured in 1992. It features a Dialog 11 control unit, a vertical milling head with SK40 DIN 69871, and a tool changer with 24 slots. The working range is X=600mm, Y=500mm, Z=450mm, with a feed rate up to 6000mm/min and rapid traverse at the same rate. Ideal for precise and efficient machining. For more information about this vertical machining center, please reach out to us.

Overview

brand: DECKEL
year: 1992
MODEL: FP4-60T
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL FP4-60T

General Data

Measurements width: 5000 MM
Measurements depth: 5500 MM
Measurements height: 2500 MM

Control Unit

Model: 11

Main drive

Spindle speed range: 0-5000 1/MIN
Tool taper: SK40 DIN 69871
Number of axis: 3

Movement

X-AXIS Movement: 600 mm
X-AXIS Working Feed: 2-6000 mm/min
X-AXIS Rapid traverse: 6000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Working Feed: 2-6000 mm/min
Y-AXIS Rapid traverse: 6000 mm/min
Z-AXIS Movement: 450 mm
Z-AXIS Working Feed: 2-6000 mm/min
Z-AXIS Rapid traverse: 6000 mm/min

Tools

Slots in storage: 24

Additional equipment

- Electric handwheel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Geometry and function overhauled

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
