DECKEL - FP3NCDE-MIL-DEC-1990-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Deckel FP3NC Milling machine

Show in original language

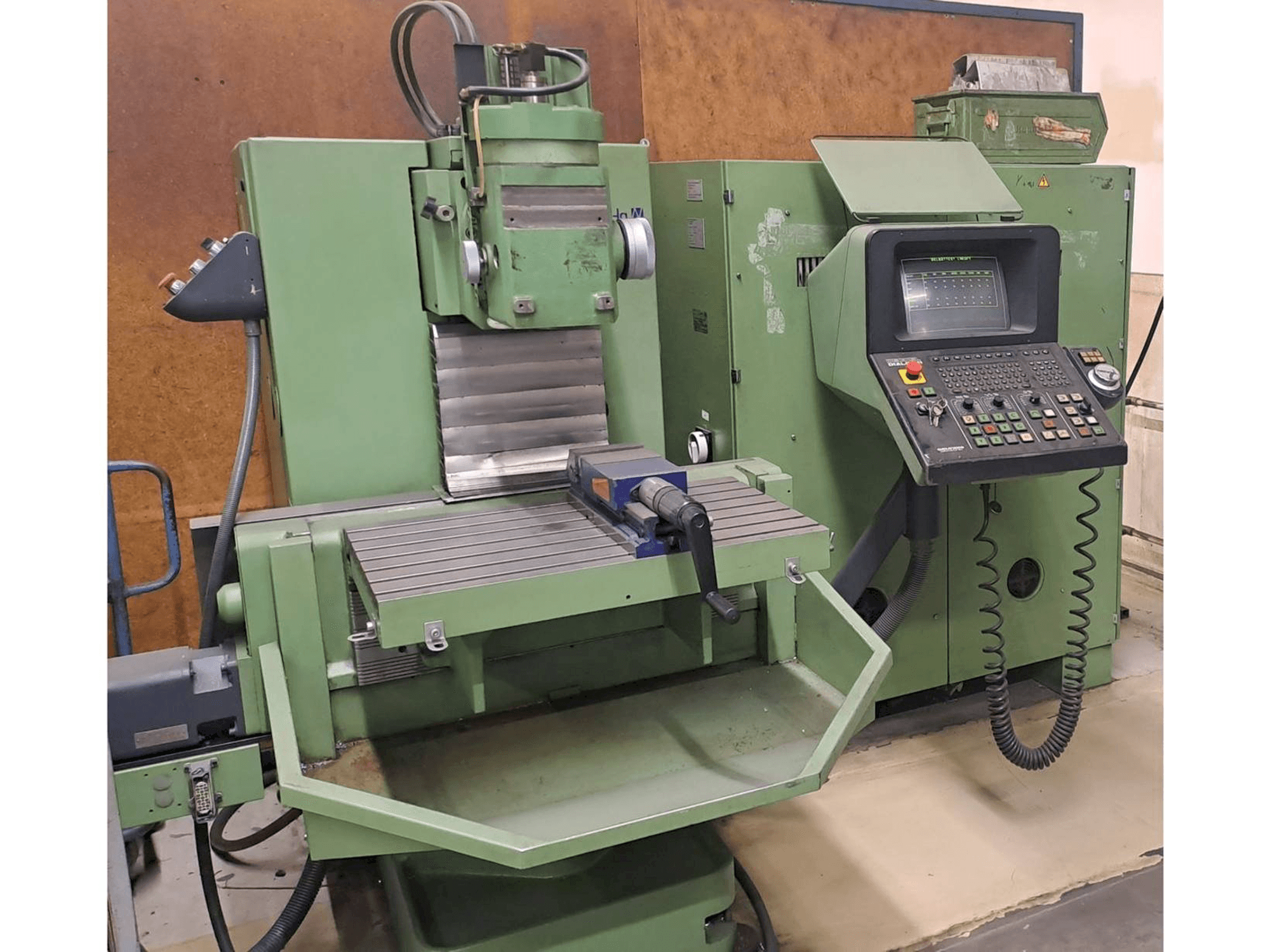

This Deckel FP3NC Milling machine was manufactured in the year in 1990 in Germany. It is equipped with a DIALOG 11 control unit. The machine has a spindle speed of 3000 rpm.

Overview

brand: DECKEL
year: 1990
MODEL: FP3NC
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold

Technical Information - DECKEL FP3NC

General Data

Measurements width: 2000 mm
Measurements depth: 2000 mm
Machine weight: 2000 kg

Control Unit

Model: DIALOG 11

Main drive

Spindle speed range: 3000 1/MIN

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 700 mm
Outer width: 460 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control cabinet 1300 x70 0mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
