- DECKEL FP3-50 Milling Machine

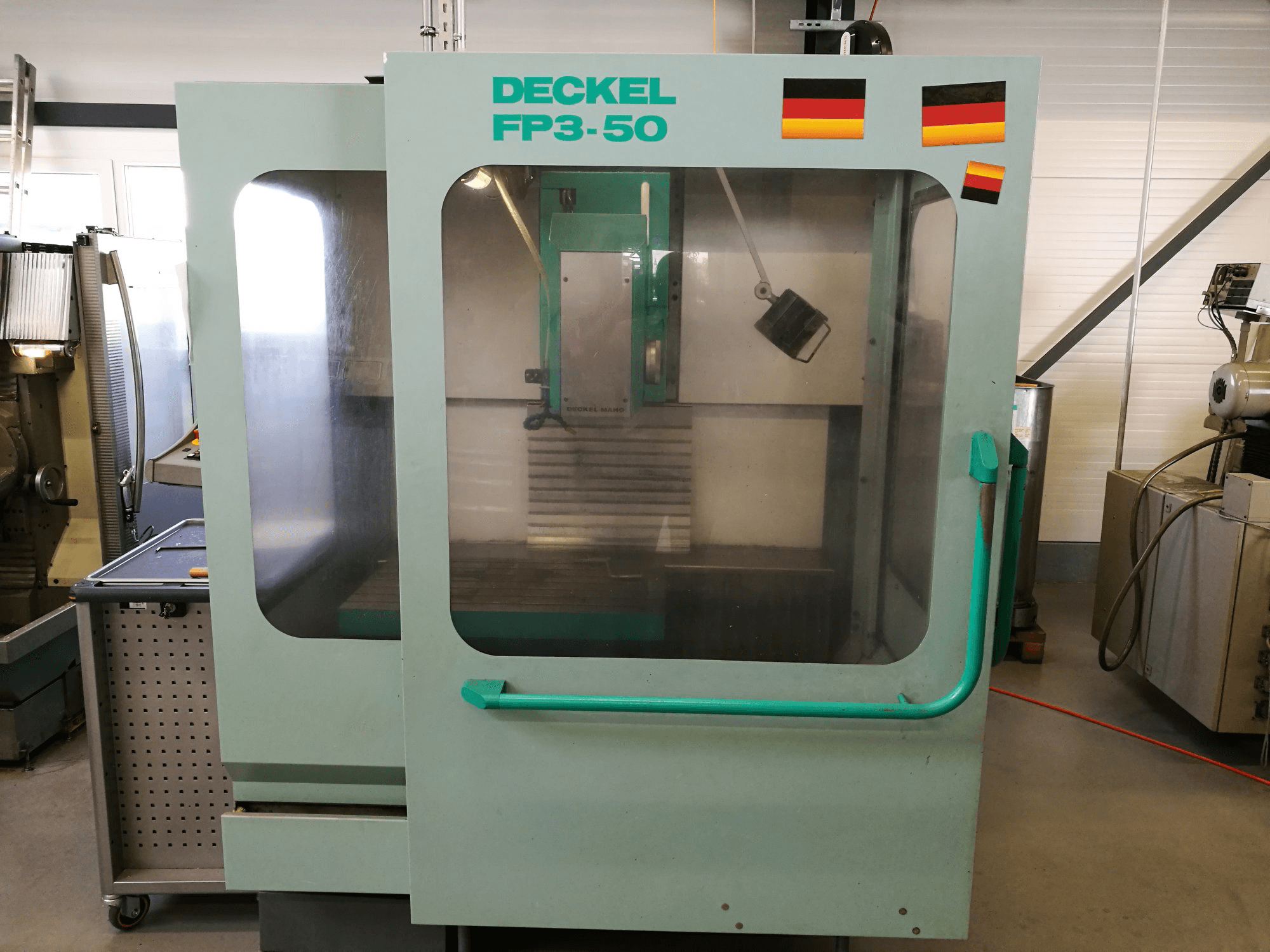

This DECKEL FP3-50 Milling Machine was made in 1993 in Germany and has been operative for 5195 production hours. Equipped with a GRUNDIG Dialog 12 Control unit, this machine is in very good conditions as it was only used for educational reasons.
Overview
- brand: DECKEL
- year: 1993
- MODEL: FP3-50
- production hours: 5195
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: GRUNDIG
Technical Information - DECKEL FP3-50
General Data
- Measurements width: 2800 mm
- Measurements depth: 3200 mm
- Measurements height: 2000 mm
- Machine weight: 2800 kg
Control Unit
- Brand: GRUNDIG
- Model: Dialog 12
Main drive
- Number of spindles: 1
- Spindle speed range: 32 - 5000 1/min
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 16.6 kVA
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
