➤ Used DECKEL FP2NC For Sale | gindumac.com

Show in original language

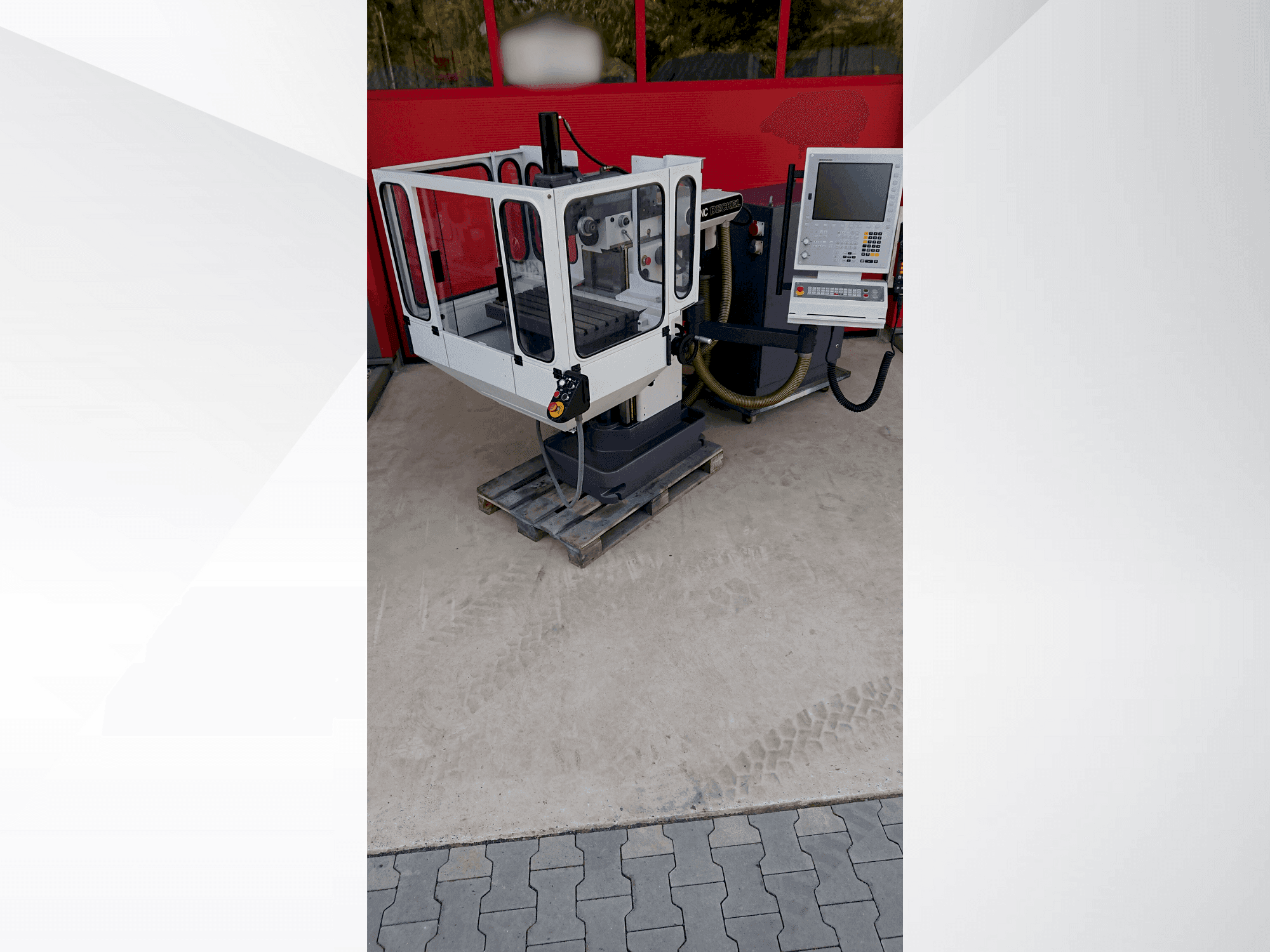

This 3-axis DECKEL FP2NC vertical machining center was manufactured in 1982. It features a TNC320 control, a working range of X=300mm, Y=320mm, Z=400mm, and a main drive power of 1.6/2.0kW. The spindle speed ranges from 31.5 to 3150 min-1 with an SK 40 tool holder. It supports a rapid traverse for X, Y, and Z axes at 2000mm/min and can handle a table load of 250kg. Reach out for more information about this vertical machining center.

Overview

brand: DECKEL
year: 1982
MODEL: FP2NC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DECKEL FP2NC

Control Unit

Model: TNC320

Main drive

Spindle speed range: 31.5-3150 1/MIN
Spindle motor power: 1.6/2.0kW
Tool taper: SK 40

Movement

X-AXIS Movement: 300 mm
X-AXIS Feed Force: 2000mm/min
X-AXIS Rapid traverse: 2000mm/min
Y-AXIS Movement: 220 + 100 mm
Y-AXIS Feed Force: 2000mm/min
Y-AXIS Rapid traverse: 2000mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Feed Force: 2000mm/min
Z-AXIS Rapid traverse: 2000mm/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Quill stroke horizontal/vertical: 65/80mm
- - Load capacity of the table surface: 250kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
