DAH LIH MCV 2600

DAH LIH - MCV 2600FI-MIL-DAH-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

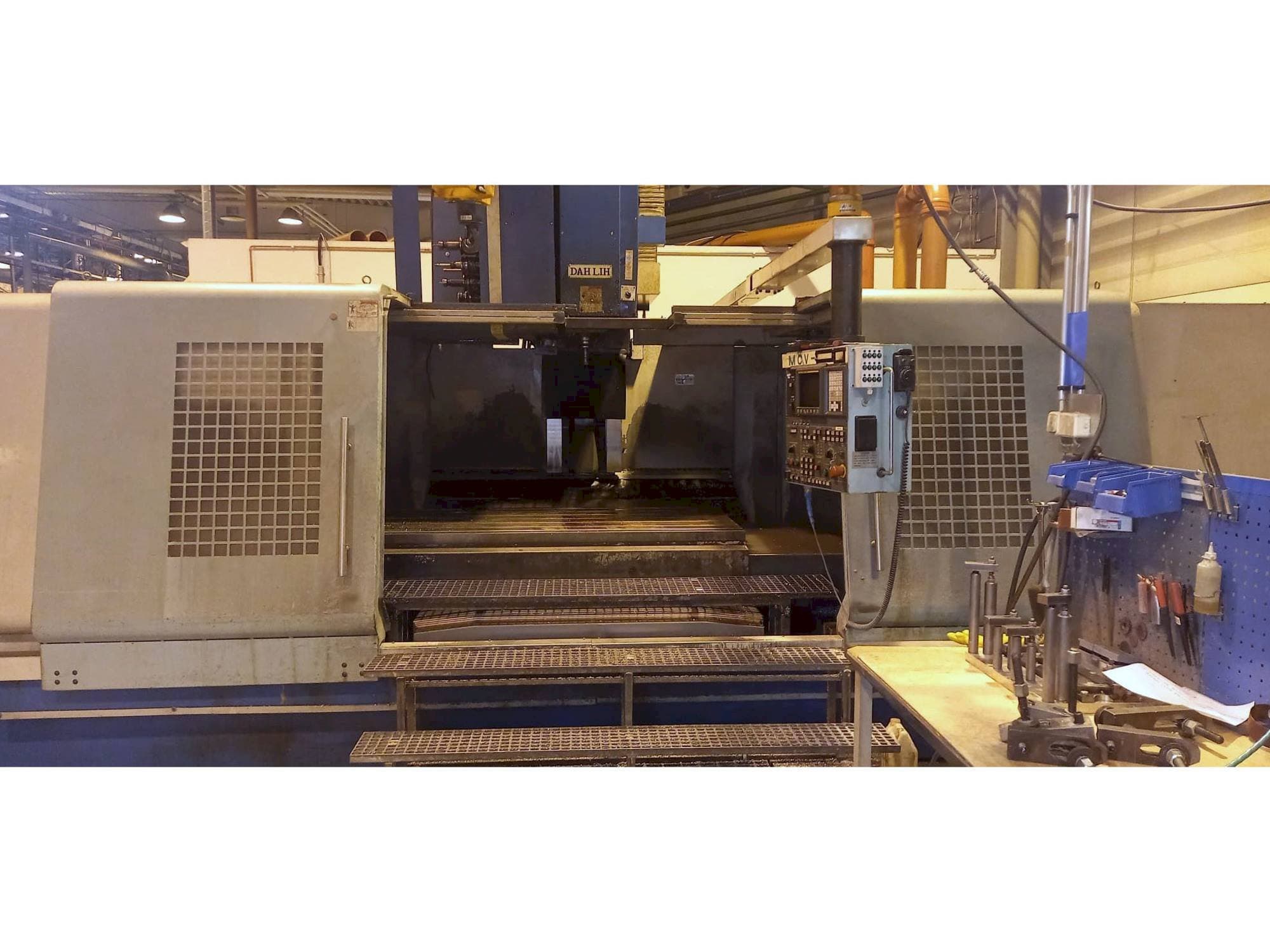

Dah-Lih MCV 2600 Vertical Machining Center

Show in original language

This Dah-Lih MCV 2600 Vertical Machining Center was manufactured in the year 2003 in Taiwan and has 13300 production hours. It is equipped with a Fanuc Series Oi- MB control unit and has 4 axis. The machine has a spindle speed 35-3500 rpm.

Overview

brand: DAH LIH
year: 2003
MODEL: MCV 2600
production hours: 13300
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAH LIH MCV 2600

General Data

Measurements width: 7430 mm
Measurements depth: 4135 mm
Measurements height: 3496 mm
Machine weight: 16000 kg

Control Unit

Model: Series Oi-MB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 35-3500 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 2600 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 2300 mm
Outer width: 800 mm

Tools

Slots in storage: 32
Max weight: 15 kg
Max tool diameter: 125 mm
Max tool length: 350 mm
Type of tool holder: BT50

Media

Main electronic connection: 400 V

Additional equipment

- Heidenhain touch probe for measuring products

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
