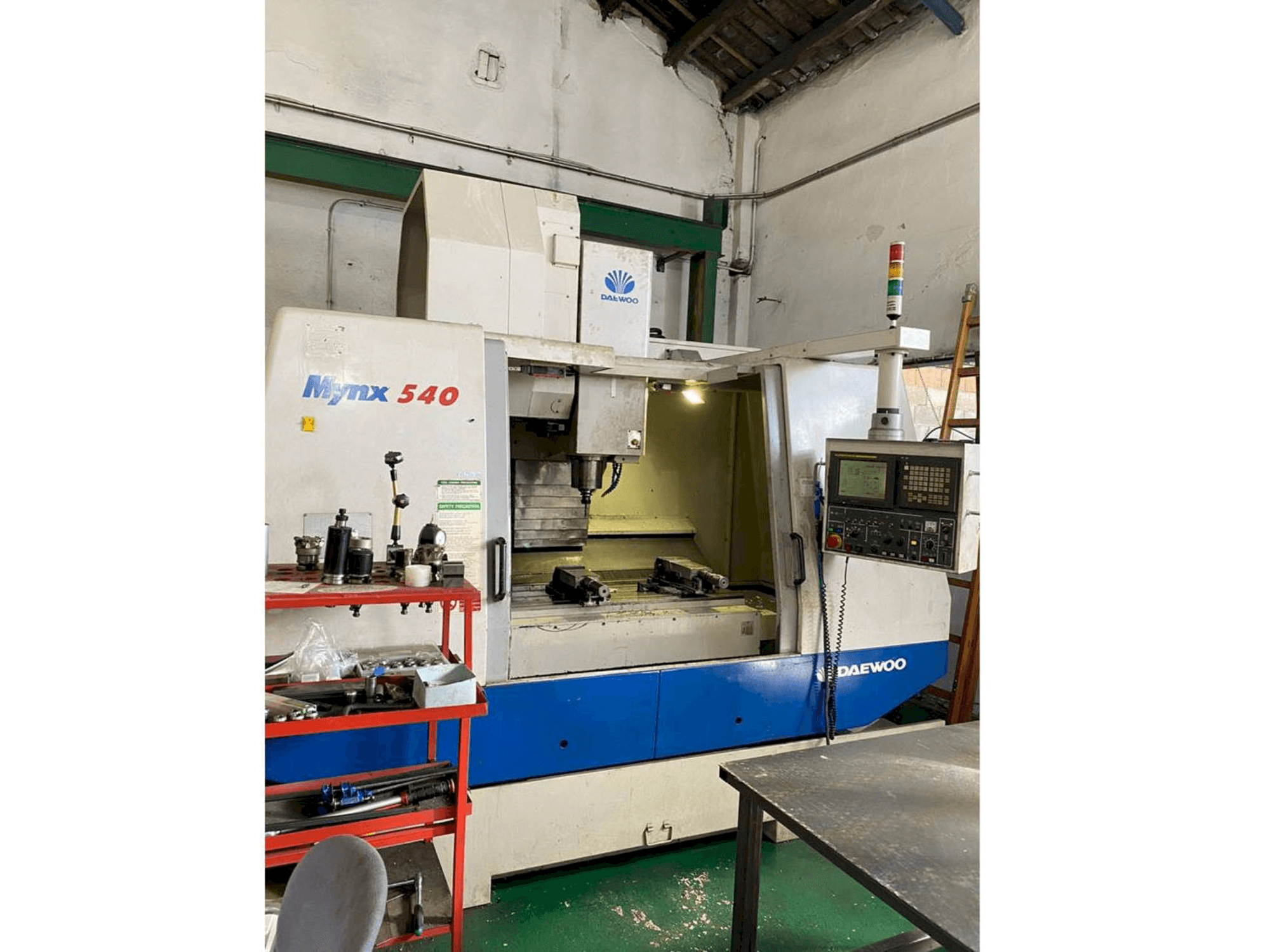

This DAEWOO Mynx 540 Vertical Machining Center was manufactured in 2002. Equipped with a Fanuc 21 iM digital Control unit. This machine can operate with a spindle speed range 40 - 8000 rpm. The machining center has 3 axes, but includes a Nikken rotary table, with this rotary table has 4 axes. It has been overhauled in the last few months, it has replaced the tool change encoder and the 3 coolant pumps and it has changed the bed turcite and the grinding of the bed.

Overview

brand: DAEWOO
year: 2002
MODEL: Mynx 540
production hours: 52504
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO Mynx 540

Control Unit

Model: 21 iM digital
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 40 - 8000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 625 mm

Workpiece

Workpiece weight: 800 Kg

Table

Outer length: 1200 mm
Outer width: 500 mm
Number of tslots: 5

Tools

Slots in storage: 30+1
Max weight: 8 Kg
Max tool length: 180 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Nikken 4º axis

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X = 1020
- - Internal cooling (20 bar)
- - 4ºaxis
Qualitative Machine Benefits:
- - Change of turcite of bench
- - Bench grinding and scraping
- - Head straps change
- - Tool changer encoder change
- - Repair and replacement of the 3 coolant pumps
- - Replaced high pressure coolant pump
- - Preloaded spindles
- - New greasers and greasing system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
