DAEWOO Doosan ACE HP 5500 Horizontal Machining Center

Show in original language

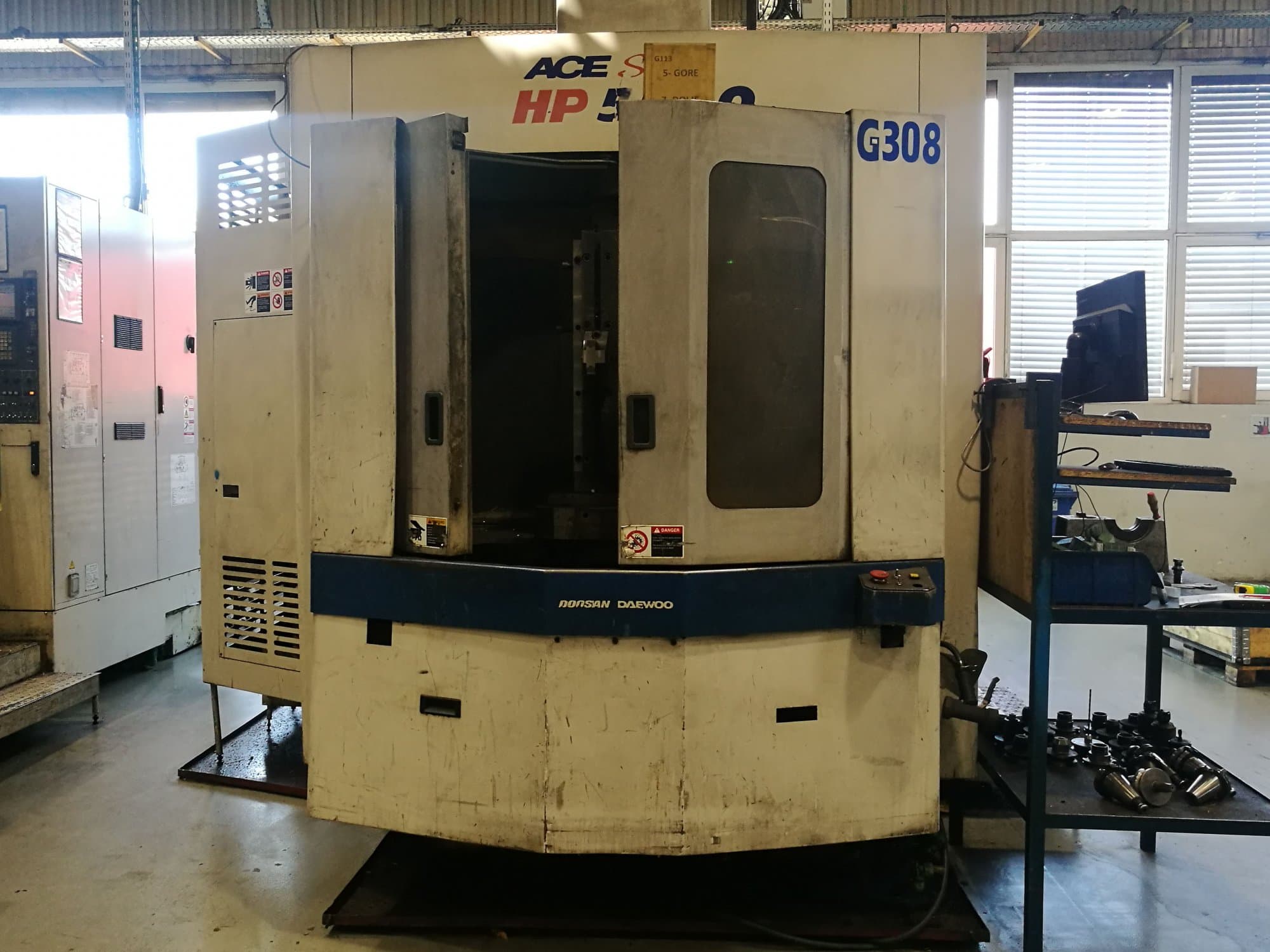

This DAEWOO Doosan ACE HP 5500 Horizontal Machining Center from 2006 was made in Korea and has a working history of 51000 production hours. Operated through a FANUC 18i-MB Control unit, this versatile and precise machine has mainly worked with bronze and cast iron during the past.

Overview

brand: DAEWOO
year: 2006
MODEL: Doosan ACE HP 5500
production hours: 51000
application type: Milling
Location: Croatia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO Doosan ACE HP 5500

General Data

Measurements width: 3300 mm
Measurements depth: 6500 mm
Measurements height: 3200 mm
Machine weight: 17000 kg

Control Unit

Model: 18i-MB
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Media

Main electronic connection: 220 50/60 Hz
Power consumption: 67.35 kVA
Chip conveyor: Yes

Additional equipment

- ATC 60 places
- 2 pallets 500x500
- Round table 360°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
