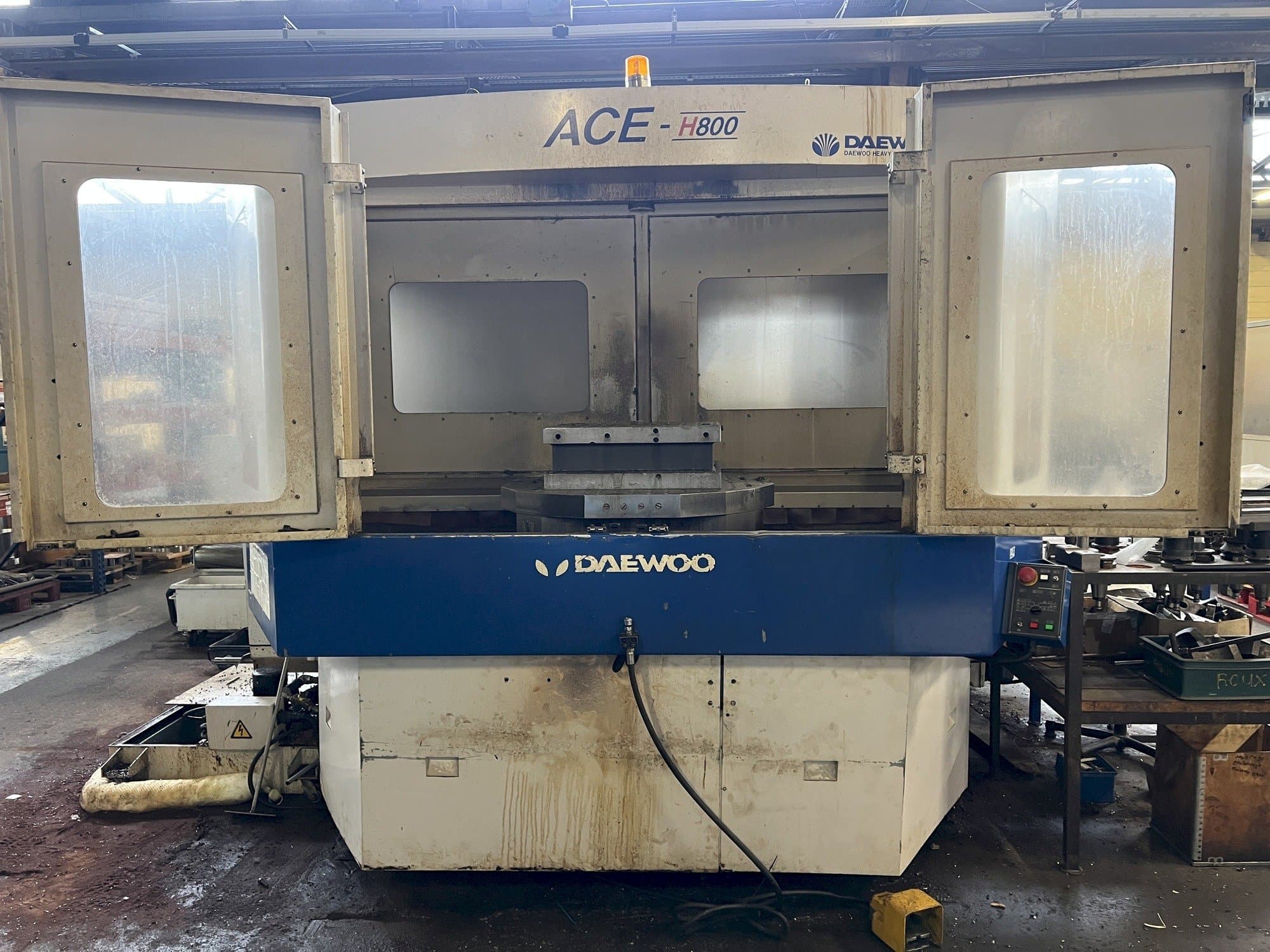

DAEWOO ACE H800 Horizontal Machining center

Show in original language

This DAEWOO ACE H800 Horizontal Machining center was manufactured in the year 1999 in Korea. It is equipped with a Fanuc Series 18-M control unit and has 4 axis. The machine has a spindle speed of 4500 rpm.

Overview

brand: DAEWOO
year: 1999
MODEL: ACE H800
application type: Milling
Location: France
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO ACE H800

General Data

Measurements width: 4100 mm
Measurements depth: 6850 mm
Measurements height: 3240 mm
Machine weight: 18000 kg

Control Unit

Model: Series 18-M
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 15 KW
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 800 mm
Outer width: 800 mm
Table load: 2000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from nose to table: 200 - 1200mm
- - Cone type: bt50
- - Double pallet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
