Correa CF 22/25 Milling Machine

Show in original language

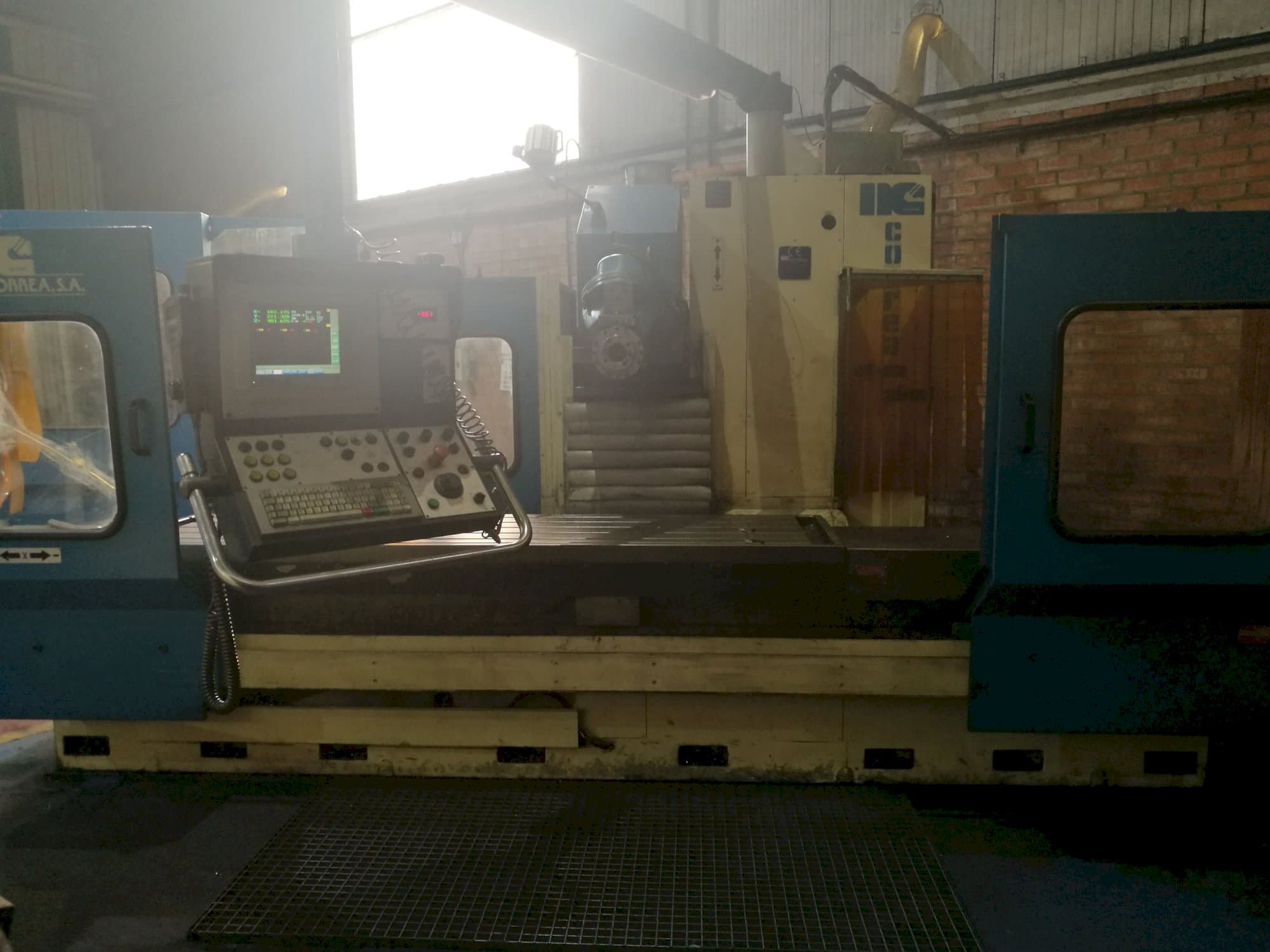

This Correa CF 22/25 Milling Machine was made in 2000 in Spain and has been operative for 36170 production hours. Equipped with a Selca S3045D Control unit, this machine counts with a working table of 2500 x 700 mm. It stands out for having its head bearings changed and for incorporating an encoder, ready for 4 axis.

Overview

brand: Correa
year: 2000
MODEL: CF 22/25
production hours: 36170
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: SELCA

Technical Information - Correa CF 22/25

General Data

Measurements width: 6400 mm
Measurements depth: 2900 mm
Measurements height: 2760 mm
Machine weight: 9500 kg

Control Unit

Model: S3045D
CNC main language: Spanish
Brand: SELCA

Main drive

Number of spindles: 1
Spindle speed range: 605-4000 rpm 1/MIN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 800 mm
Workpiece z: 800 mm
Workpiece weight: 4000 kg

Table

Outer length: 2500 mm
Outer width: 700 mm
Number of tslots: 5
Distance between: 125 mm

Media

Main electronic connection: 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
